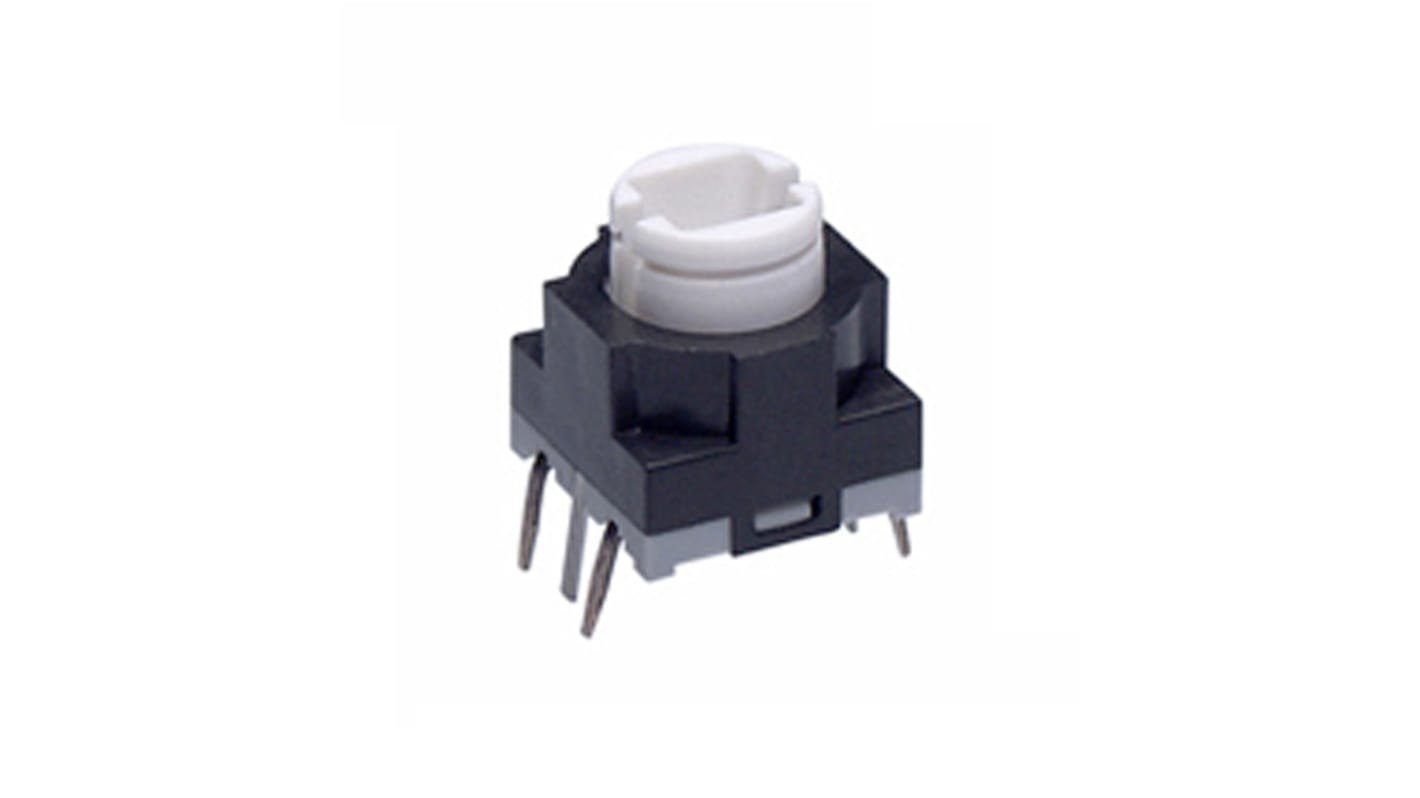

NKK Switches Extended Tactile Switch, SPST 125 mA 3.3mm PCB
- RS Stock No.:
- 125-3463
- Mfr. Part No.:
- JB15HBPF
- Brand:
- NKK Switches
Discontinued
- RS Stock No.:
- 125-3463
- Mfr. Part No.:
- JB15HBPF
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | SPST | |
| Terminal Type | PC Pin | |
| Switch Operation | Off-On (Momentary) | |
| Actuator Length | 3.3mm | |
| Actuator Type | Extended | |
| Length | 12.3mm | |
| Width | 12.3mm | |
| Dimensions | 12.3 x 12.3mm | |
| Illuminated | Yes | |
| Mounting Type | PCB | |
| Contact Current Rating | 125 mA | |
| Voltage Rating | 24V dc | |
| Operating Force | 2.65 N | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +70°C | |
| Contact Material | Brass (Stationary), Stainless Steel (Movable) | |
| Maximum Operating Temperature | +70°C | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration SPST | ||
Terminal Type PC Pin | ||
Switch Operation Off-On (Momentary) | ||
Actuator Length 3.3mm | ||
Actuator Type Extended | ||
Length 12.3mm | ||
Width 12.3mm | ||
Dimensions 12.3 x 12.3mm | ||
Illuminated Yes | ||
Mounting Type PCB | ||
Contact Current Rating 125 mA | ||
Voltage Rating 24V dc | ||
Operating Force 2.65 N | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +70°C | ||
Contact Material Brass (Stationary), Stainless Steel (Movable) | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- CN
NKK Low Profile Process Sealed Tactiles JB Series
The JB Series tactiles are designed with a special bracket for right angle mounting.Rubber seal construction preventing contact contamination allowing automated soldering and cleaning.
Features and Benefits
Higher operating force type
Design flexibility
Dome contact
Slanted terminals
Molded in terminals
Terminal spacing conforms to 2.54mm PCB grid
High reliability
Long life up to 5,000,000 operations
Design flexibility
Dome contact
Slanted terminals
Molded in terminals
Terminal spacing conforms to 2.54mm PCB grid
High reliability
Long life up to 5,000,000 operations
Standards
UL94V-0
Tactile
