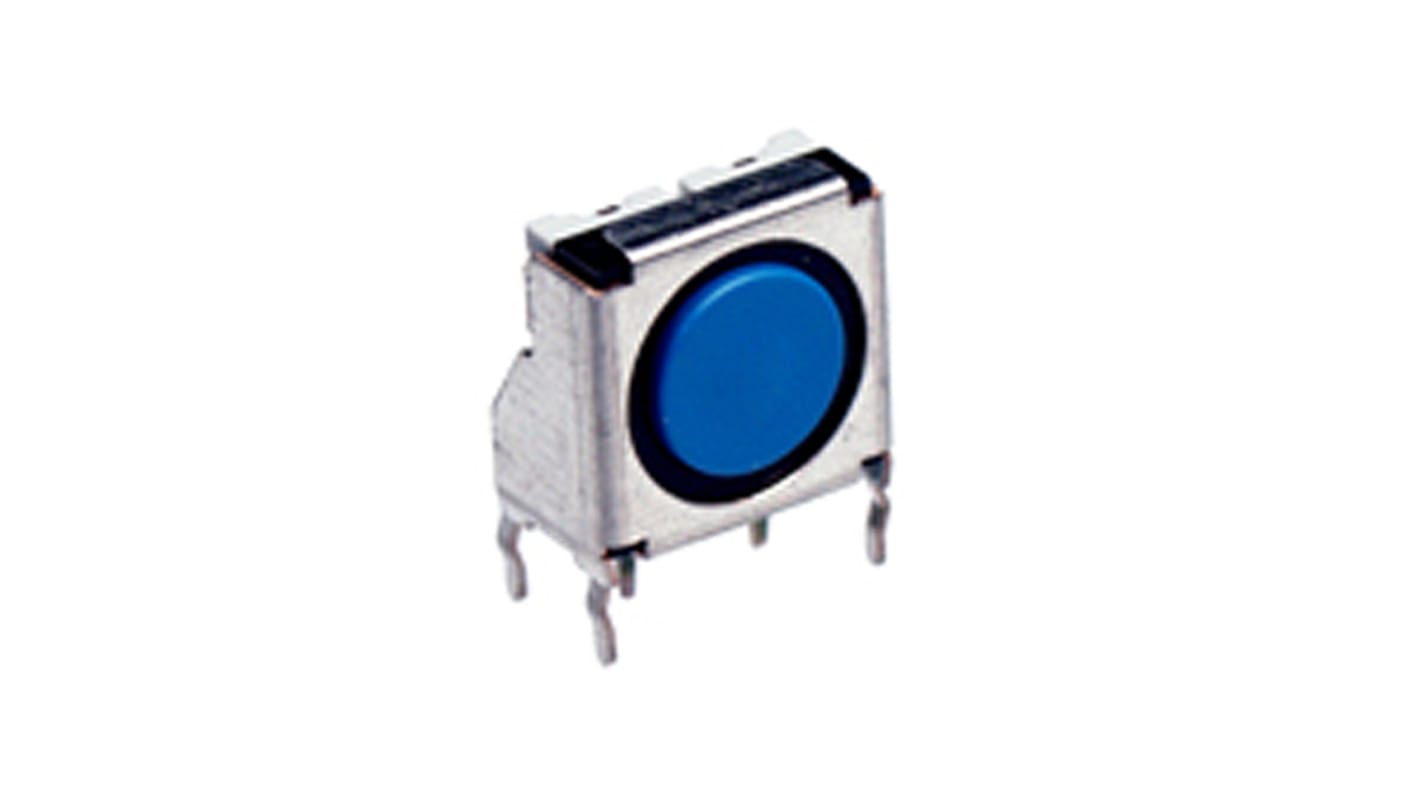

Flat Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.7mm PCB

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

NKK Low Profile Process Sealed Tactiles JB Series

The JB Series tactiles are designed with a special bracket for right angle mounting.Rubber seal construction preventing contact contamination allowing automated soldering and cleaning.

Features and Benefits

Higher operating force type
Design flexibility
Dome contact
Slanted terminals
Molded in terminals
Terminal spacing conforms to 2.54mm PCB grid
High reliability
Long life up to 5,000,000 operations

Standards

UL94V-0

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type PC Pin
Switch Operation Off-On (Momentary)
Actuator Length 0.7mm
Actuator Type Flat Button
Length 10.8mm
Width 10.8mm
Dimensions 10.8 x 10.8mm
Mounting Type PCB
Contact Current Rating 50 mA
Operating Force 1.76 N
Minimum Operating Temperature -25°C
Voltage Rating 24V dc
Operating Temperature Range -25 → +70°C
Maximum Operating Temperature +70°C
Contact Material Brass (Stationary), Stainless Steel (Movable)
25 In stock for delivery within 5 working days
Price Each (In a Bag of 5)
£ 1.226
(exc. VAT)
£ 1.471
(inc. VAT)
Units
Per unit
Per Bag*
5 - 20
£1.226
£6.13
25 - 95
£1.10
£5.50
100 - 495
£0.922
£4.61
500 +
£0.83
£4.15
*price indicative
Not available for guaranteed pre 9am/10am delivery
