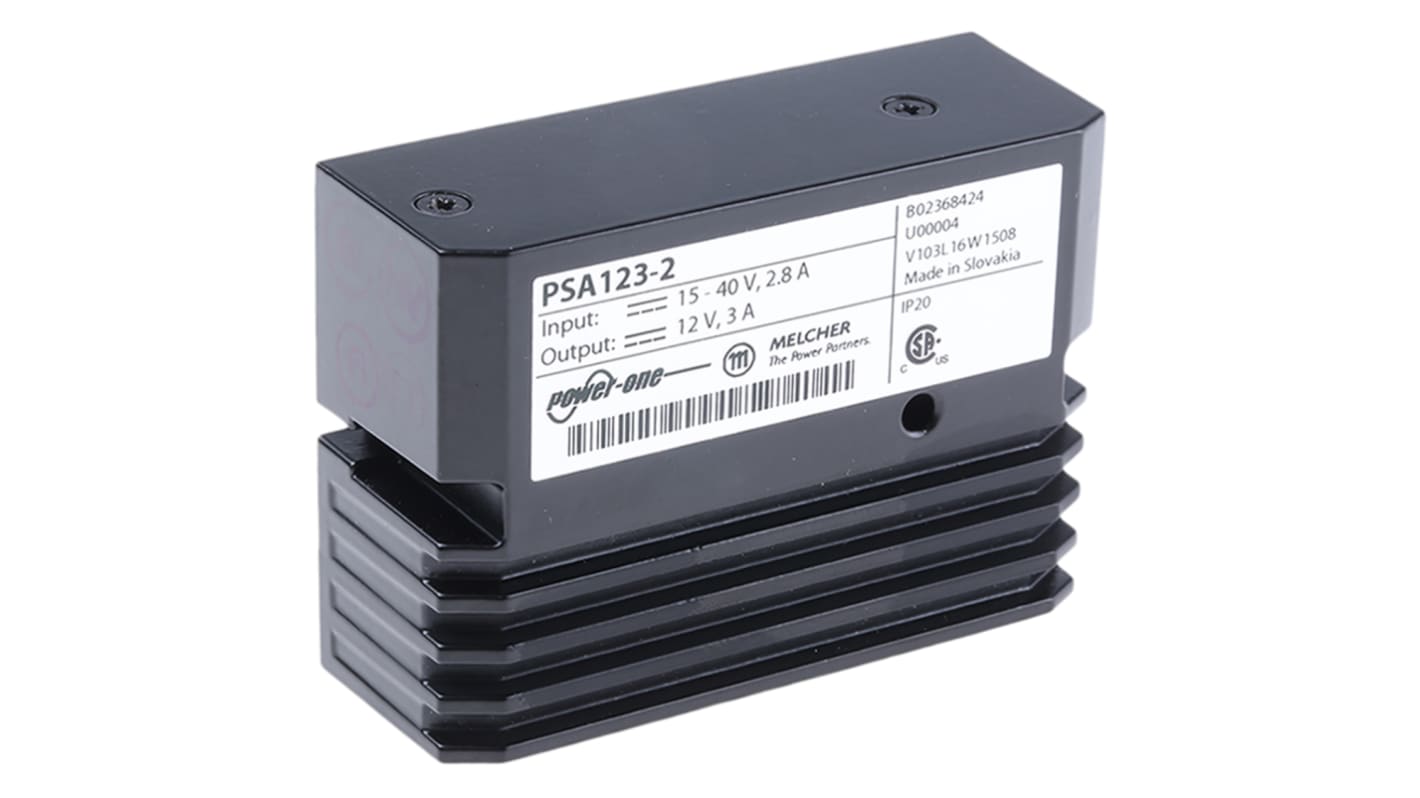

BEL POWER SOLUTIONS INC Screw Mount Switching Regulator, 12V dc Output Voltage, 15 40V dc Input Voltage, 3A

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): SK
Product Details

Positive Switching Regulators

Wide input voltage range
High current output
High efficiency
Low input to output differential voltage
Very good dynamic properties
Input undervoltage lock-out
Parallel configurations possible
Continuous no-load and short-circuit proof
No derating

Standards

UL 1950, UL 1012, EN60950

//media.rs-online.com/t_line/L466751-01.gif
//media.rs-online.com/t_line/LF466751-01.gif
Specifications
Attribute Value
Input Voltage 15 40V dc
Output Voltage 12V dc
Number of Outputs 1
Output Current 3A
Power Rating 36W
Mounting Type Screw Mount
Minimum Temperature -10°C
Maximum Temperature +50°C
Length 50.2mm
Depth 25.2mm
Width 70.2mm
Available to back order for despatch 26/03/2020
Price Each
£ 127.03
(exc. VAT)
£ 152.44
(inc. VAT)
Units
Per unit
1 - 4
£127.03
5 - 9
£120.68
10 - 24
£114.33
25 +
£107.98
