TRACOPOWER Non-Isolated DC-DC Converter, Through Hole, 24V dc Output Voltage, 33 → 72V dc Input Voltage, 400mA
- RS Stock No.:
- 193-2045
- Mfr. Part No.:
- TSR 0.6-48240WI
- Brand:
- TRACOPOWER
37 In stock - FREE next working day delivery available
9 available from Europe for delivery within 1 working day(s).
Added
Price Each
£9.80
(exc. VAT)
£11.76
(inc. VAT)
Units | Per unit |
1 - 4 | £9.80 |
5 - 9 | £9.51 |
10 - 24 | £9.21 |
25 - 49 | £8.82 |
50 + | £8.43 |
- RS Stock No.:
- 193-2045
- Mfr. Part No.:
- TSR 0.6-48240WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

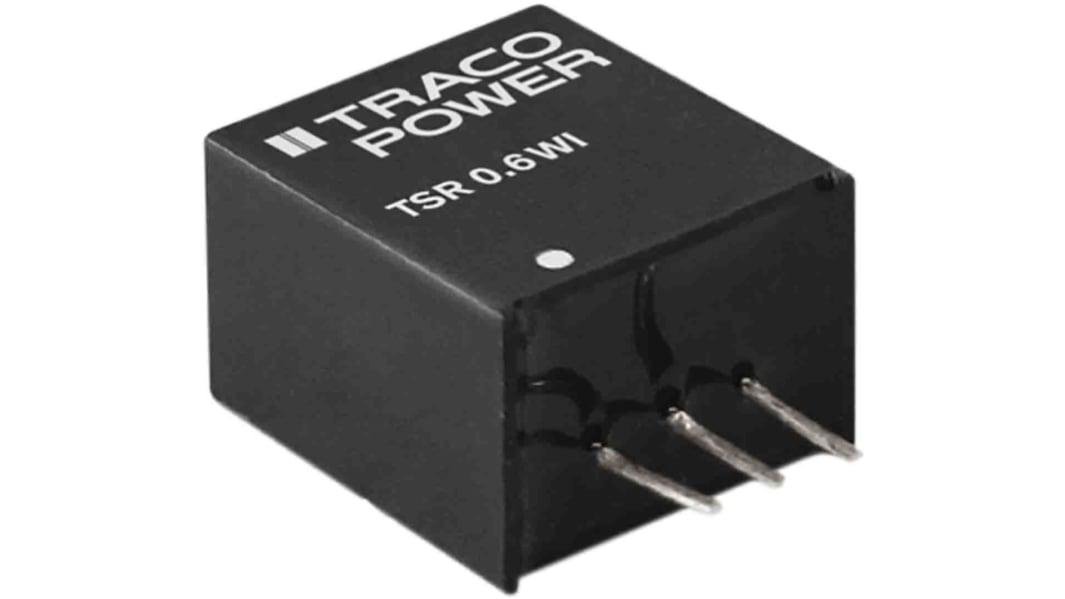

Traco Power Non-Isolated DC-DC Converter, 0.9% Load Regulation, 3g Weight - TSR 0.6WI Series - TSR 0.6-48240WI
Looking for safe power delivery to your PCB-linked components? Let this Traco Power non-isolated DC-DC converter take the load off your shoulders. It stabilises a wide input signal range from 33 to 72V DC to deliver the right 24V DC output to your low-voltage appliances. Thanks to integrated overvoltage, short circuit and overtemperature protection mechanisms, this unit ensures electrical hazards won't catch you out. It packs all this capacity in a small SIP package with compact dimensions of 12 (L) x 8.6 (W) x 13.4 (D), so takes up minimal board space.
Features & Benefits
Through-hole mounting ensures a firm, vibration-proof connection to your circuit board
Non-conductive plastic housing provides insulation to prevent electric shocks
94% efficiency for maximum energy use with low heat generation
Pins are nickel-plated to ensure resistance to corrosion
Non-conductive plastic housing provides insulation to prevent electric shocks
94% efficiency for maximum energy use with low heat generation
Pins are nickel-plated to ensure resistance to corrosion
Applications
Gaming consoles
Telecommunications industry
Assembly lines
Telecommunications industry
Assembly lines
Why do I need a DC-DC converter?
You need this component to ensure that an unstable voltage supply doesn't cause damage to your appliances. Devices that run with an unregulated input risk damage from overheating or short circuits.
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Output Current | 400mA |
Input Voltage | 33 → 72V dc |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Package | SIP 3 |
Efficiency | 94 (Typ.)% |
Ripple And Noise | 75 (Typ.)mV Pk-Pk |
Maximum Temperature | +85°C |
Minimum Temperature | -40°C |
Series | TSR 0.6WI |
Line Regulation | 0.9% |
Protection Features | Over Temperature Protection, Over Voltage Protection, Short Circuit Protection |
Application | Battery Powered System |
Depth | 13.4mm |
Width | 8.6mm |
Length | 12mm |
Standards Met | CE |
Maximum Input Current | 3 (Typ.)mA |
Special Features | 3-Years Warranty |
Load Regulation | 0.6% |
Output Voltage Adjustment Range | -2.5 → +2.5% |
Power Signal Conversion Type | DC-DC |
MTBF | 18160000h |
Weight | 3g |
Switching Frequency Range | 416 → 864kHz |
