Recom Switching Power Supply, RAC04-0512DC/230, 5V dc, 33 mA, 720 mA, 4W, 1 Output, 80 → 264V ac Input Voltage
- RS Stock No.:
- 166-6745
- Mfr. Part No.:
- RAC04-0512DC/230
- Brand:
- Recom
Available to back order for despatch 31/10/2024
Added
Price 1 Tube of 12
£198.04
(exc. VAT)
£237.65
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £198.04 | £16.503 |
| 5 - 9 | £192.10 | £16.008 |
| 10 - 24 | £186.16 | £15.513 |
| 25 - 49 | £180.22 | £15.018 |
| 50 + | £174.28 | £14.523 |
| *price indicative | ||
- RS Stock No.:
- 166-6745
- Mfr. Part No.:
- RAC04-0512DC/230
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

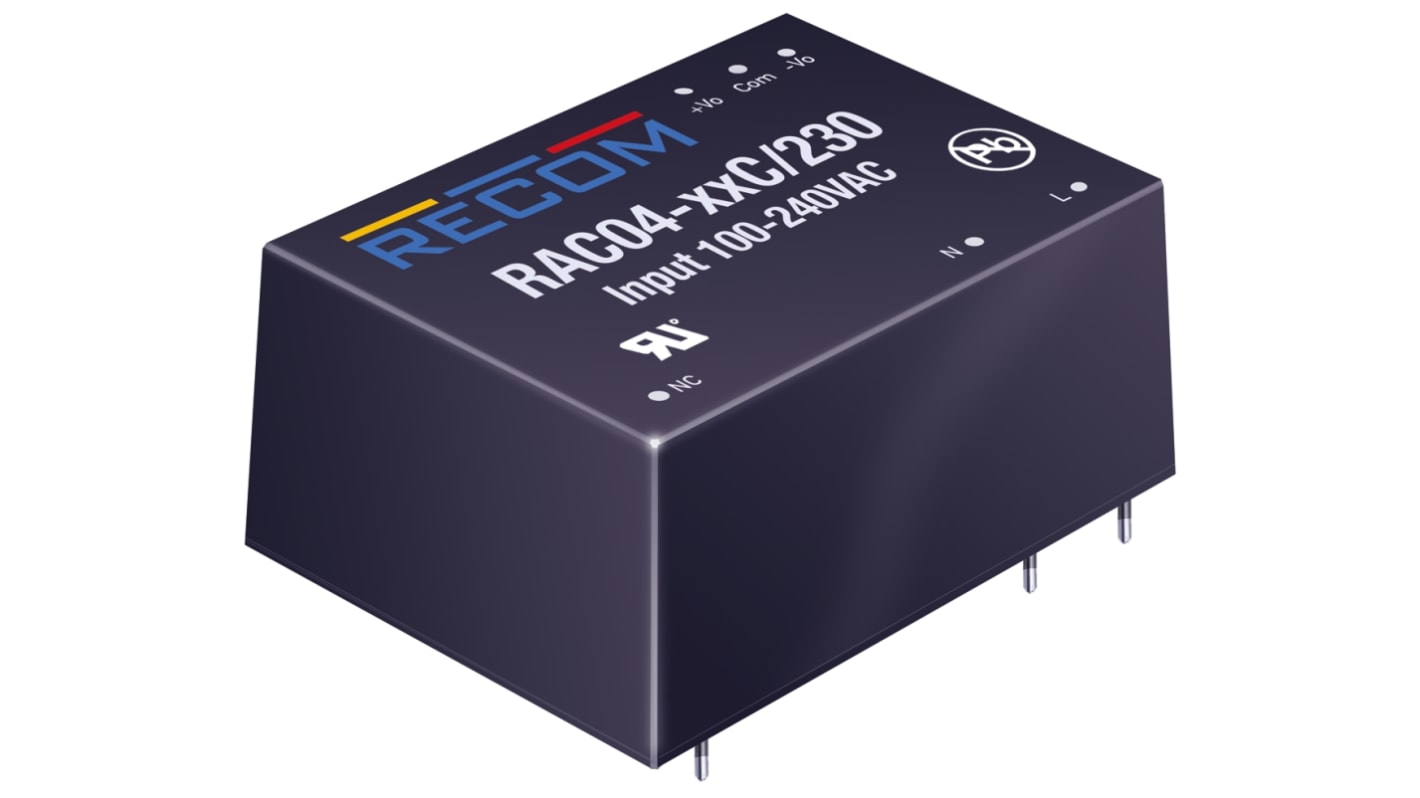

Recom 4W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC04-C/230 Series
The RAC04-C/230 Power Supply comes in an encapsulated PCB-mount package style. This 4W Regulated AC/DC converter offers universal input and High efficiency of up to 79%. The RAC04-C/230 has a Maximum No Load ˂100mW with a 3.75kVac isolation. Ideal applications of this encapsulated power supply are in home automation, board-level power supplies, instrumentation systems and standby applications. The Recom RAC04/277 regulated converter comes with a three year warranty.
Universal input 80-26Vac
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B
Standards
EN-60950-1, UL-60950-1
Approvals
EN, UL and CE certified
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5 V dc, 12V dc |
| Output Current | 33 mA, 720 mA |
| Power Rating | 4W |
| Number of Outputs | 1 |
| Input Voltage | 80 → 264V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 36.7mm |
| Width | 27.2mm |
| Depth | 17.1mm |
| Series | RAC04-C/230 |
| Efficiency | 75% |
| Maximum Temperature | +65°C |
| Minimum Temperature | -40°C |
