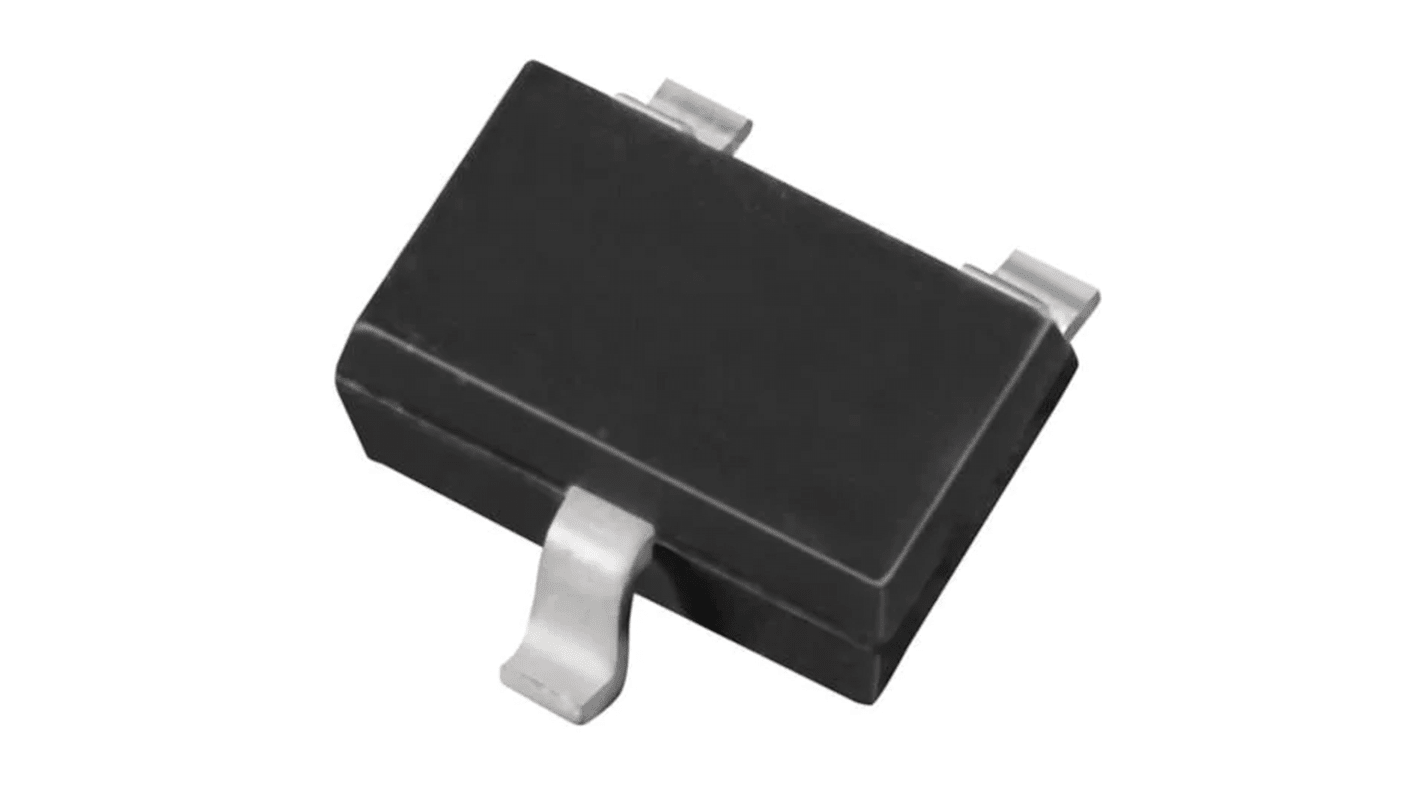

Vishay Dual Switching Diode, Common Cathode, 250mA 70V, 3-Pin SOT-23 BAV70-E3-08
- RS Stock No.:
- 177-7622
- Mfr. Part No.:
- BAV70-E3-08
- Brand:
- Vishay
12000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.032
(exc. VAT)
£0.038
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | £0.032 | £96.00 |
| 6000 - 12000 | £0.031 | £93.00 |
| 15000 + | £0.029 | £87.00 |
| *price indicative | ||
- RS Stock No.:
- 177-7622
- Mfr. Part No.:
- BAV70-E3-08
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Glass Passivated Junction Fast Switching Plastic Rectifier
Features
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.
Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.
Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
The Vishay small signal switching diode has high voltage and it is made in a dual cathode configuration. Its peak-repetitive surge current is 2 A, while its maximum continuous forward current is 0.25 A.
Storage temperature range -65 to +150°C
Operating temperature range - 55 to + 150 °C
Operating temperature range - 55 to + 150 °C
Diodes and Rectifiers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Maximum Forward Current | 250mA |
| Diode Configuration | Common Cathode |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 2 |
| Maximum Reverse Voltage | 70V |
| Package Type | SOT-23 |
| Diode Technology | Silicon Junction |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1.25V |
| Maximum Diode Capacitance | 1.5pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3.1mm |
| Width | 1.43mm |
| Height | 1.05mm |
| Dimensions | 3.1 x 1.43 x 1.05mm |
