- RS Stock No.:
- 108-4657
- Mfr. Part No.:
- ACM1513-551-2PL-TL
- Brand:
- TDK
- RS Stock No.:
- 108-4657
- Mfr. Part No.:
- ACM1513-551-2PL-TL
- Brand:
- TDK
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

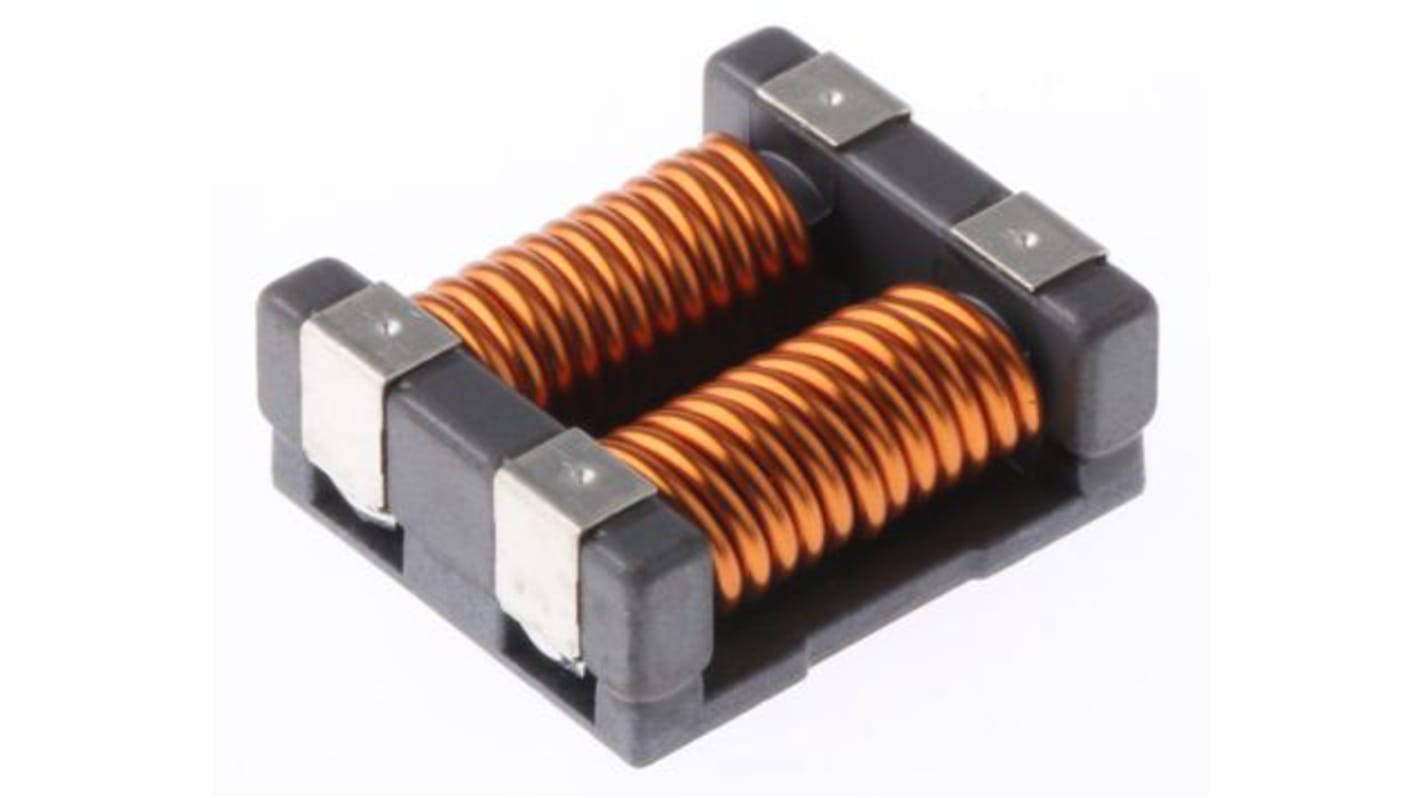

TDK ACM Series SMD Common Mode Chokes
Miniature SMD common-mode wire wound chip filters
Common-mode impedance >1000Ω at 100MHz
Due to low differential mode impedance there is almost no affect upon high speed signals
2-line and 3-line type available
Operating temperature range -25°C to +85°C
Applications include radiation and common-mode noise suppression, USB and IEEE1394 computer lines, LVDS panel link lines
Common-mode impedance >1000Ω at 100MHz
Due to low differential mode impedance there is almost no affect upon high speed signals
2-line and 3-line type available
Operating temperature range -25°C to +85°C
Applications include radiation and common-mode noise suppression, USB and IEEE1394 computer lines, LVDS panel link lines
TDK SMD Common Mode Chokes
Specifications
Attribute | Value |
---|---|
Maximum DC Current | 10A |
Package/Case | 1513 |
Length | 15mm |
Depth | 6mm |
Height | 6mm |
Dimensions | 15 x 13 x 6mm |
Maximum DC Resistance | 4mΩ |
Series | ACM |
Minimum Operating Temperature | -25°C |
Inductor Construction | Wire-Wound |
Maximum Operating Temperature | +85°C |
