Wago, 222 Series Non-Fused Terminal Block, 5 Way/Pole, Spring Cage Terminals, 28 → 12 AWG, Polyamide, 600 V

  • RS Stock No. 507-7011
  • Mfr. Part No. 222-415
  • Brand Wago
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

222 Series Terminal Blocks

The component in this series offers an all-rounder connection solution for solid, stranded and fine-stranded conductors with different cross sections. Ensuring practical, fast and safe connections for different types and sizes of wiring or conductors.

Features & Benefits

Fast and safe connecting
No tools needed

Product Application Information

Fast and safe connections for mains power or automotive wiring such as light fixtures, speakers and gates.

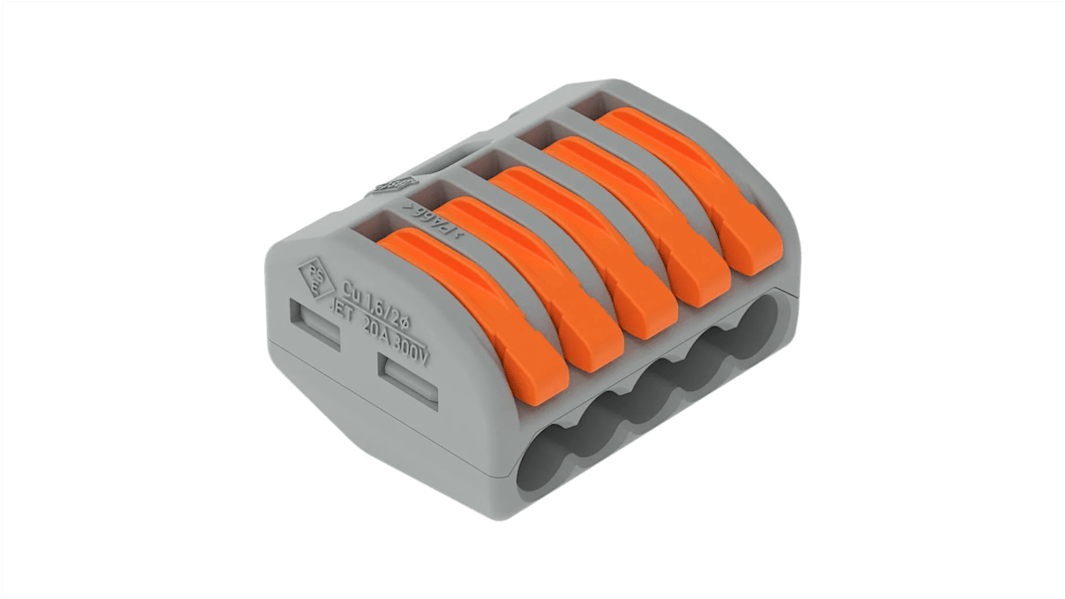

CAGE CLAMP® spring terminals with handling levers are ideal for quick connections, in bridging boxes and binding wires. This 5-port lever clamp terminal block provides a simple solution to connect and disconnect cables or wires. The integrated orange lever acts as a sturdy clamp when in the rest position, preventing a connected conductor accidentally become loose or damaged, making them a really handy for free wiring.

Product Application Information

These handy electronics are the clever and super easy alternative to wire nuts electricians use to bind wires together. No screw drivers required. You can also use them for mains wiring from 12AWG down to 28 AWG.

Specifications
Attribute Value
Series 222 Series
Number of Ways 5
Current Rating 32A
Termination Method Spring Cage
Wire Size 28 → 12 AWG
Material Polyamide
Voltage Rating 600 V
Maximum Operating Temperature +85°C
Enclosed Yes
504 In stock - FREE next working day delivery available
2323 available from Europe for delivery within 1 working day(s).
Price 1 Pack of 10
£ 6.89
(exc. VAT)
£ 8.27
(inc. VAT)
Pack(s)
Per Pack
Per unit*
1 - 14
£6.89
£0.689
15 - 39
£6.57
£0.657
40 +
£6.20
£0.62
*price indicative
