- RS Stock No.:
- 177-5513
- Mfr. Part No.:
- AS6C6264-55PCN
- Brand:
- Alliance Memory
- RS Stock No.:
- 177-5513
- Mfr. Part No.:
- AS6C6264-55PCN
- Brand:
- Alliance Memory
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

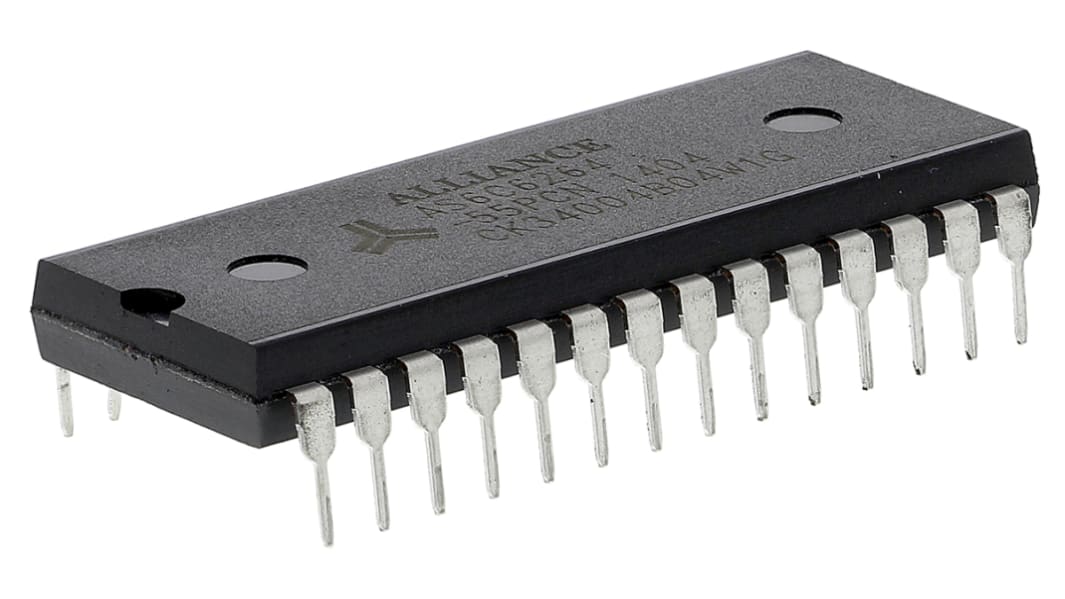

Static RAM, Alliance Memory
The AS6C1008 is well designed for very low power system applications, and particularly well suited for battery back-up non-volatile memory application. The AS6C62256 is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. The AS6C62256 operates with wide range power supply 2.7 ∼ 5.5V. Package: 28-pin 600 mil PDIP
SRAM (Static Random Access Memory)
Specifications
Attribute | Value |
---|---|
Memory Size | 64kbit |
Organisation | 8k x 8 bit |
Number of Words | 8k |
Number of Bits per Word | 8bit |
Maximum Random Access Time | 55ns |
Address Bus Width | 13bit |
Low Power | Yes |
Timing Type | Asynchronous |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 28 |
Dimensions | 36.32 x 13.21 x 3.81mm |
Height | 3.81mm |
Maximum Operating Supply Voltage | 5.5 V |
Maximum Operating Temperature | +70 °C |
Length | 36.32mm |
Width | 13.21mm |
Minimum Operating Temperature | 0 °C |
Minimum Operating Supply Voltage | 2.7 V |
