RS PRO Splice Connector, Blue, Insulated 1.5 → 2.5 mm², 16 → 14 AWG
- RS Stock No.:
- 178-7222
- Brand:
- RS PRO
4800 In stock - FREE next working day delivery available
100 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Bag of 100)
£0.076
(exc. VAT)
£0.091
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.076 | £7.60 |
| 1000 - 1900 | £0.069 | £6.90 |
| 2000 - 4900 | £0.064 | £6.40 |
| 5000 - 9900 | £0.059 | £5.90 |
| 10000 + | £0.053 | £5.30 |
| *price indicative | ||
- RS Stock No.:
- 178-7222
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

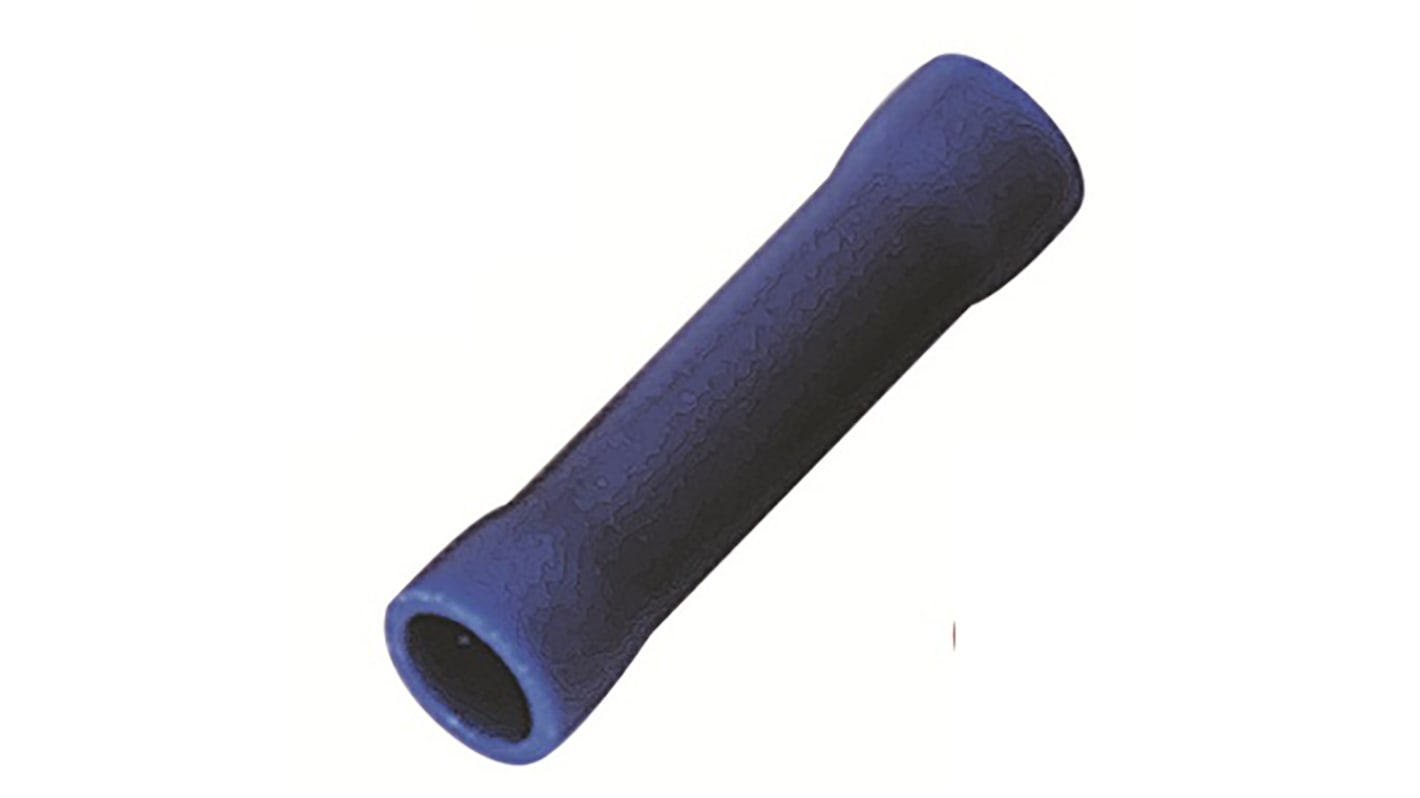

The RS PRO Splice connector is an insulated connector with length of 24.6mm and has wire size of 14AWG.
Colour: Blue
Contact Material: Copper
Contact Material: Copper
Specifications
Attribute | Value |
|---|---|
| Wire Size | 1.5 → 2.5 mm², 16 → 14 AWG |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Overall Length | 24.6mm |
| Minimum Wire Size AWG | 16AWG |
| Diameter | 4.5mm |
| Maximum Wire Size AWG | 14AWG |
| Insulation | Insulated |
| Colour | Blue |
| Insulation Material | Vinyl |
| Contact Material | Copper |
