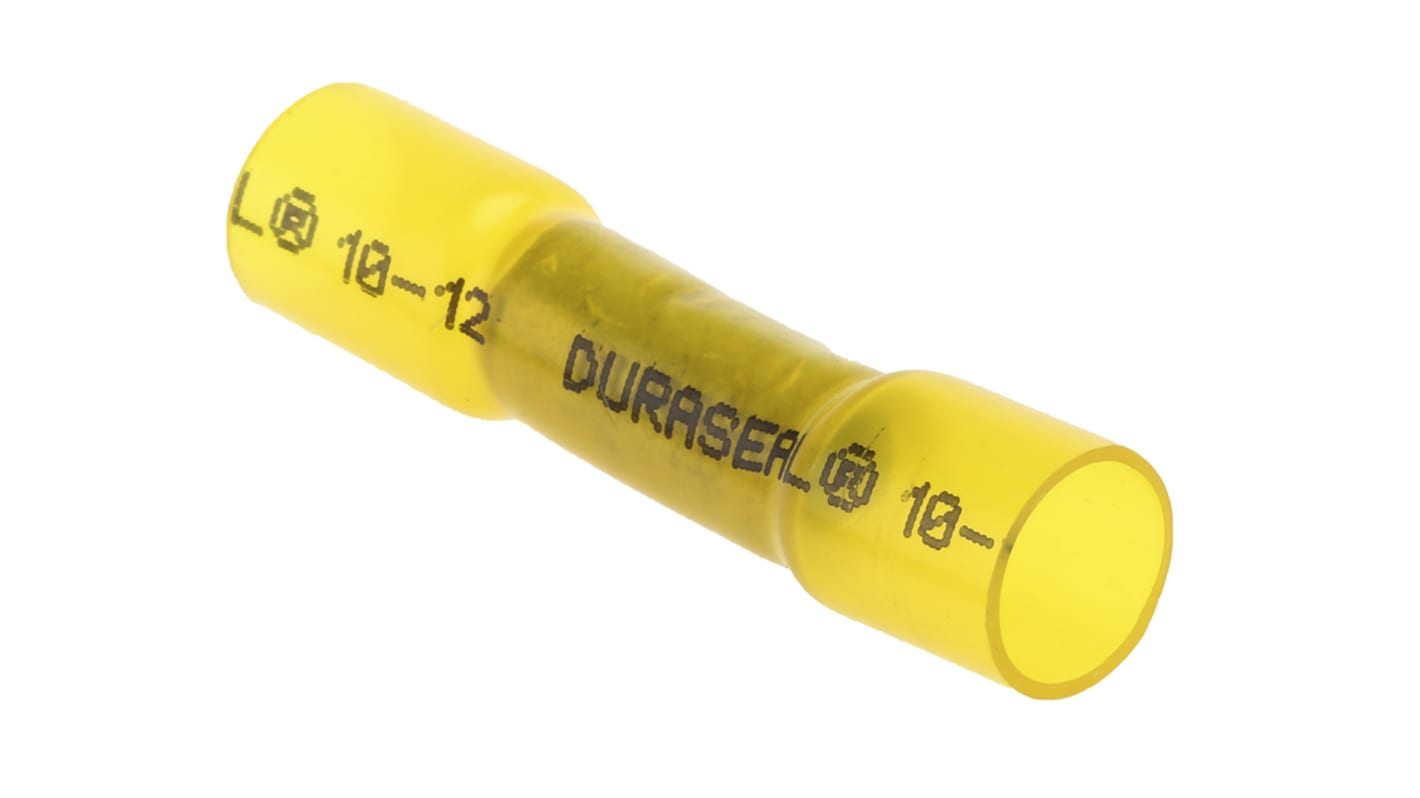

TE Connectivity, DuraSeal Butt Splice Connector, Yellow, Insulated, Tin 12 → 10 AWG

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Splices

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

Approvals

UL

Approvals

UL

Duraseal Heatshrinkable

TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint.

• The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important
• Kits are also available comprising various heat-shrinkable pre-insulated nylon splices and terminals, covering ranges from 0.5mm² to 6.0mm².

Approvals

UL Listed

Specifications
Attribute Value
Splice Type Butt
Wire Size 12 → 10 AWG
Overall Length 43mm
Diameter 6.5mm
Insulation Insulated
Colour Yellow
Series DuraSeal
Contact Material Copper
Contact Plating Tin
Thickness 3mm
600 In stock - FREE next working day delivery available
Price Each (In a Pack of 50)
£ 0.611
(exc. VAT)
£ 0.733
(inc. VAT)
Units
Per unit
Per Pack*
50 - 200
£0.611
£30.55
250 - 1200
£0.519
£25.95
1250 - 2450
£0.458
£22.90
2500 - 4950
£0.397
£19.85
5000 +
£0.336
£16.80
*price indicative
