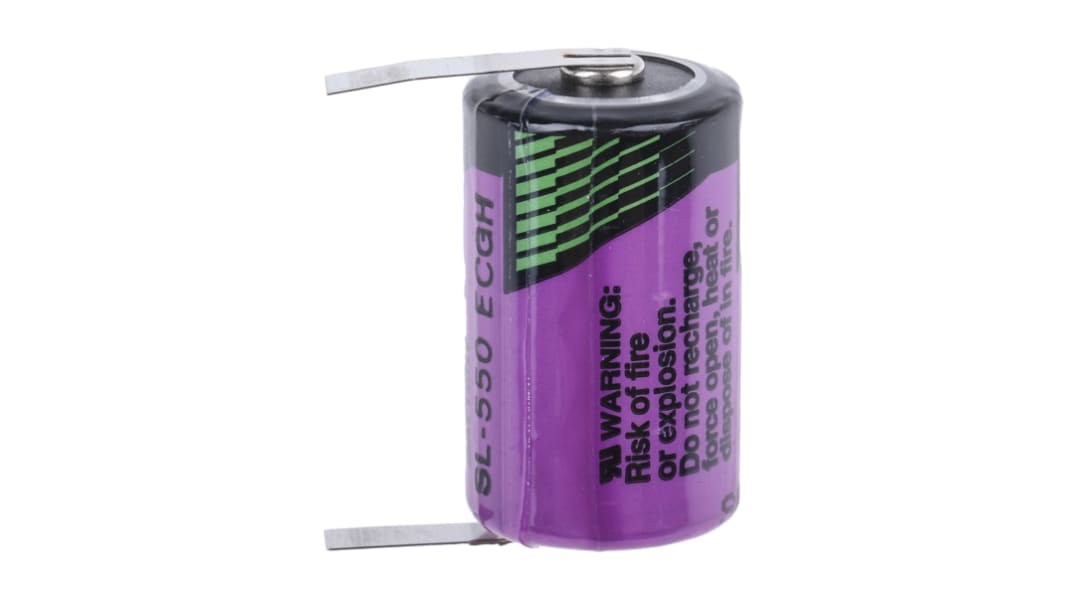

Tadiran Lithium Thionyl Chloride 3.6V 1/2 AA Battery

  • RS Stock No. 526-8510
  • Mfr. Part No. SL550/T
  • Brand Tadiran
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Tadiran 3.6 V Lithium Thionyl Chloride Batteries

Lithium 3.6 V tagged batteries from Tadiran, designed for use in applications where a device is used for a long period of time such as Industrial control equipment, oil field data logging and temperature monitoring device. These batteries are free from heavy materials, offers a unique construction making them safe and environmentally friendly.

Lithium batteries what are the advantages?

• Nominal voltage of 3.6 V, greater than conventional cells
• Very high temperature range −55゚C to +130゚C
• High energy density, the highest of any primary battery

Features and Benefits

• Lithium Thionyl Chloride
• AA, 1/ 2 AA, 2/3 AA
• Greater energy density
• Higher capacity
• Environmentally friendly
• Tagged
• Long-term shelf life and reliability

Typical Applications:

Lithium batteries are used in electronic devices that require a small, compact source of power. Example applications include:

• Utility Meters
• Smoke detectors
• Alarm systems

FAQ’s

Are Lithium Batteries Harmful?

Lithium batteries can sometimes leak a substance called potassium hydroxide which is a caustic agent that can cause eye, skin and respiratory irritations. This risk is reduced by not mixing different manufacturer battery types, batteries of different chemistries and by the replacement of all batteries at the same time.

How to dispose of Alkaline/Lithium Batteries?

Recycle responsibly, a wide range of schemes are available.

Safety Advice

Keep out of sight and reach of children

Guidance:
• Always install the batteries correctly as per instruction
• Ensure that the contact points are clean and conductive
• Do not mix different types of battery
• Do not heat or attempt to recharge the battery
• Do not dispose of in a fire

Approvals

UL 1642

Approvals

Compliant with IEC 60086-4 safety standard

Specifications
Attribute Value
Size 1/2 AA
Chemistry Lithium Thionyl Chloride
Nominal Voltage 3.6V
Capacity 800mAh
Terminal Type Tagged
Dimensions 14.7 x 25.2mm
652 In stock - FREE next working day delivery available
Price Each
£ 13.52
(exc. VAT)
£ 16.22
(inc. VAT)
Units
Per unit
1 - 19
£13.52
20 - 49
£12.84
50 +
£12.18
