Molex 19008 Series Crimp Receptacle, 6.35 x 0.81mm, 22AWG to 18AWG, Tin Plated 0006

  • RS Stock No. 822-1066
  • Mfr. Part No. 19008-0006
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

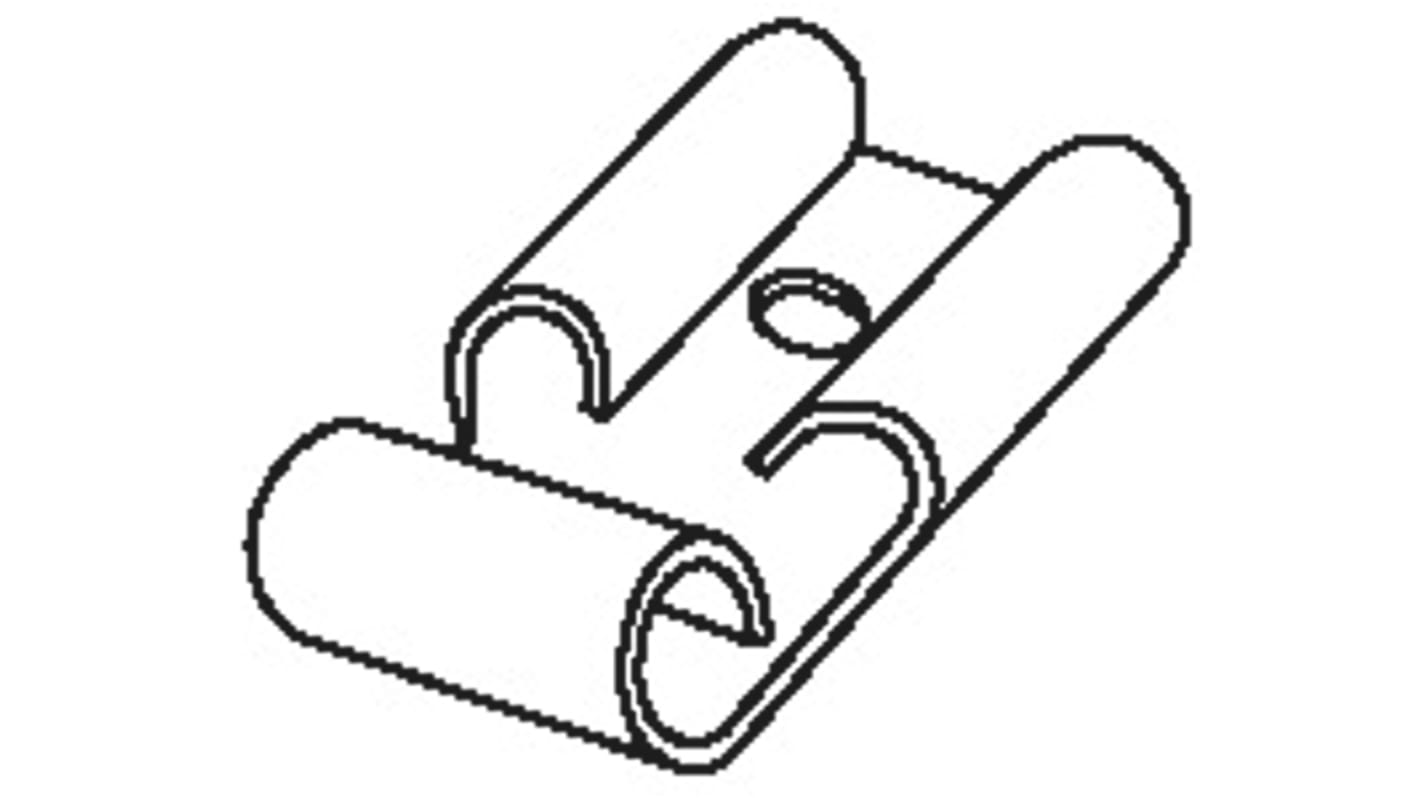

Molex Krimptite™ Female Quick Disconnect

These female crimp receptacles are uninsulated,available as a flag or straight mount angle orientation made from brass with tin plating. Available in various wire sizes.

Approvals

CSA,UL

Specifications
Attribute Value
Tab Size 6.35 x 0.81mm
Minimum Wire Size AWG 22AWG
Insulation Uninsulated
Maximum Wire Size AWG 18AWG
Contact Plating Tin
Contact Material Brass
Overall Length 13.69mm
Series 19008
Series Number 0006
1800 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
Was £0.08
£ 0.07
(exc. VAT)
£ 0.08
(inc. VAT)
Units
Per unit
Per Pack*
100 +
£0.07
£7.00
*price indicative
