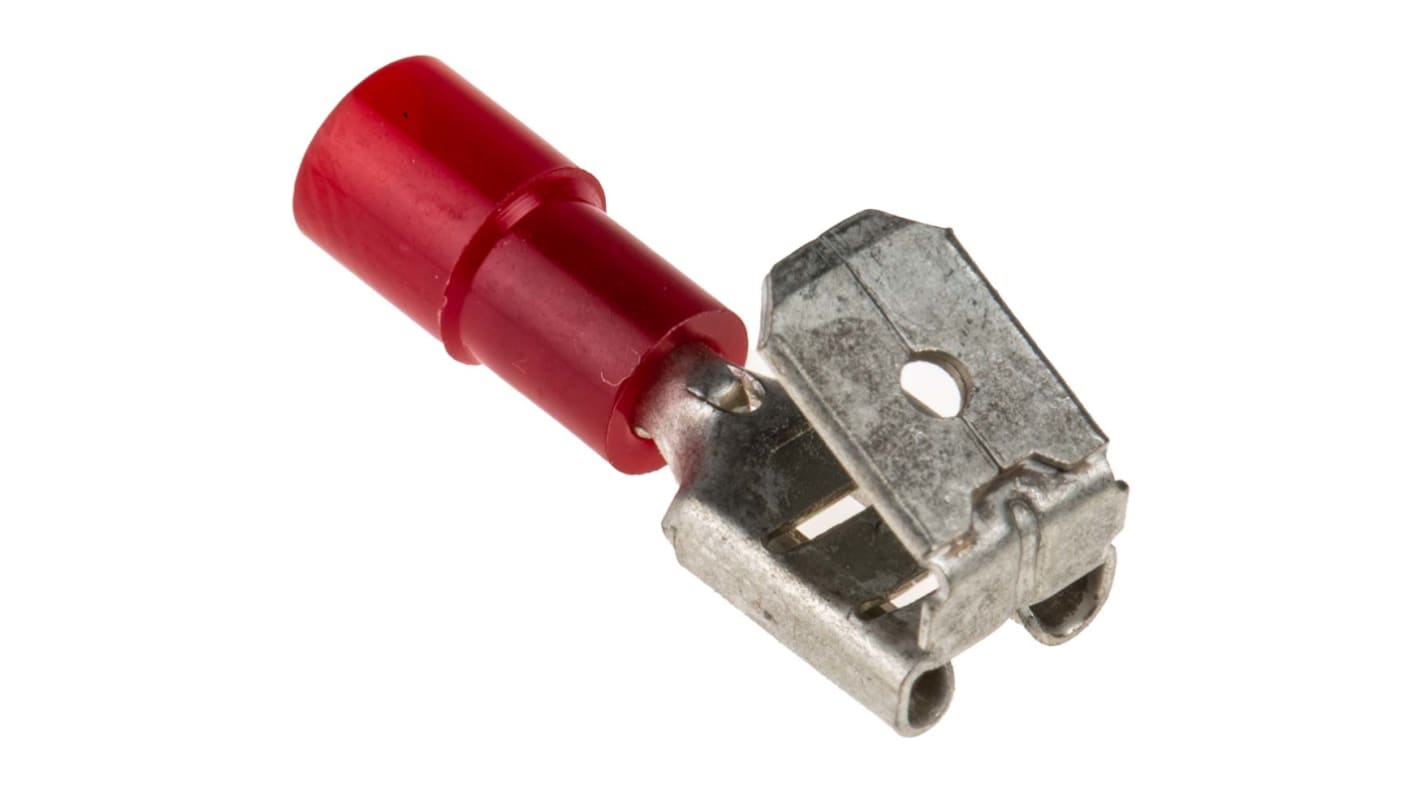

RS PRO Insulated Crimp Piggyback Terminal, 6.35 x 0.8mm, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Insulated Piggyback Crimp Terminals

Red 0.5 - 1.5 mm²
Blue 1.5 - 2.5 mm²
Tab size 6.35mm

Approvals

UL recognised component

Approvals

UL (E125401)

Insulated Funnel Entry

This range of funnel entry terminals guarantees total insertion of the conductor strands into the terminal barrel.

Improved contact and tensile strength due to ’rifled’ barrel
Terminal design ensures a reliable electrical and mechanical connection
Electrolytically tin plated body with various insulation options including polycarbonate, vinyl, PVC and nylon
Popular items also available in kits, typically stock number 613-9952

Specifications
Attribute Value
Minimum Wire Size mm² 0.5mm²
Tab Size 6.35 x 0.8mm
Maximum Wire Size mm² 1.5mm²
Minimum Wire Size AWG 22AWG
Insulation Insulated
Maximum Wire Size AWG 16AWG
Shrouded/Unshrouded Unshrouded
Insulation Material PC
Contact Material Brass
Overall Length 23mm
Colour Red
Tab Thickness 0.8mm
Tab Width 6.35mm
10400 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
£ 0.193
(exc. VAT)
£ 0.232
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
£0.193
£19.30
500 - 2400
£0.164
£16.40
2500 - 4900
£0.145
£14.50
5000 - 9900
£0.126
£12.60
10000 +
£0.106
£10.60
*price indicative
