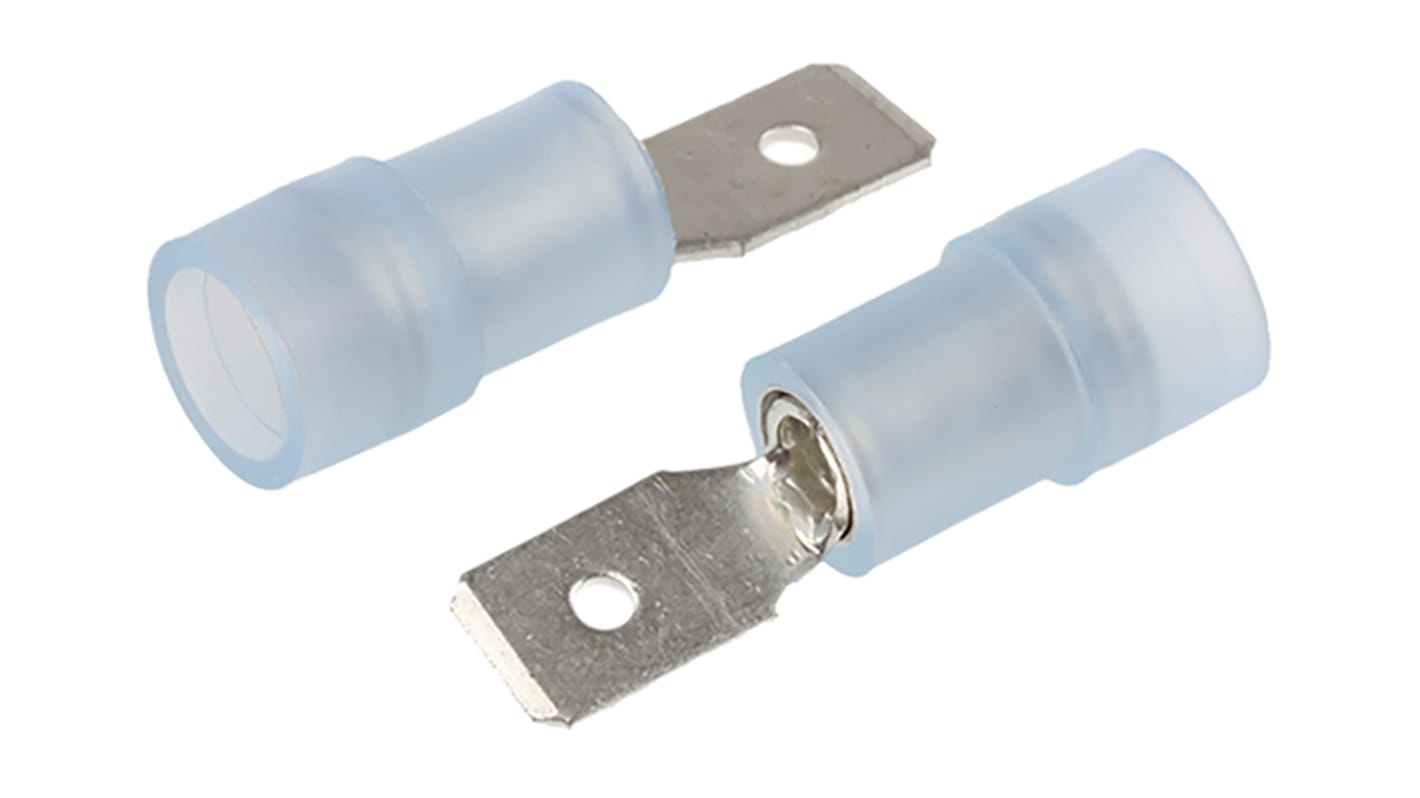

RS PRO Blue Insulated Spade Connector, 0.5 x 4.75mm Tab Size, 1.5mm² to 2.5mm²

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Insulated Double Crimp Tab Terminals

RS Pro range of insulated crimp tab wire terminals made from brass with a copper sleeved barrel. These male tab connectors have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these tab wire connectors is colour coded to correspond with the wire size they are used with.

//media.rs-online.com/t_line/L267402-01.gif
//media.rs-online.com/t_line/L2674079-01.gif

RS Pro Range

Specifications
Attribute Value
Minimum Wire Size mm² 1.5mm²
Tab Size 0.5 x 4.75mm
Maximum Wire Size mm² 2.5mm²
Insulation Insulated
Minimum Wire Size AWG 16AWG
Shrouded/Unshrouded Unshrouded
Maximum Wire Size AWG 14AWG
Termination Method Crimp
Insulation Material Nylon
Contact Material Brass
Overall Length 20mm
Colour Blue
Tab Thickness 4.75mm
Tab Width 0.5mm
Gender Male
400 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
£ 0.151
(exc. VAT)
£ 0.181
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
£0.151
£15.10
500 - 2400
£0.129
£12.90
2500 +
£0.114
£11.40
*price indicative
