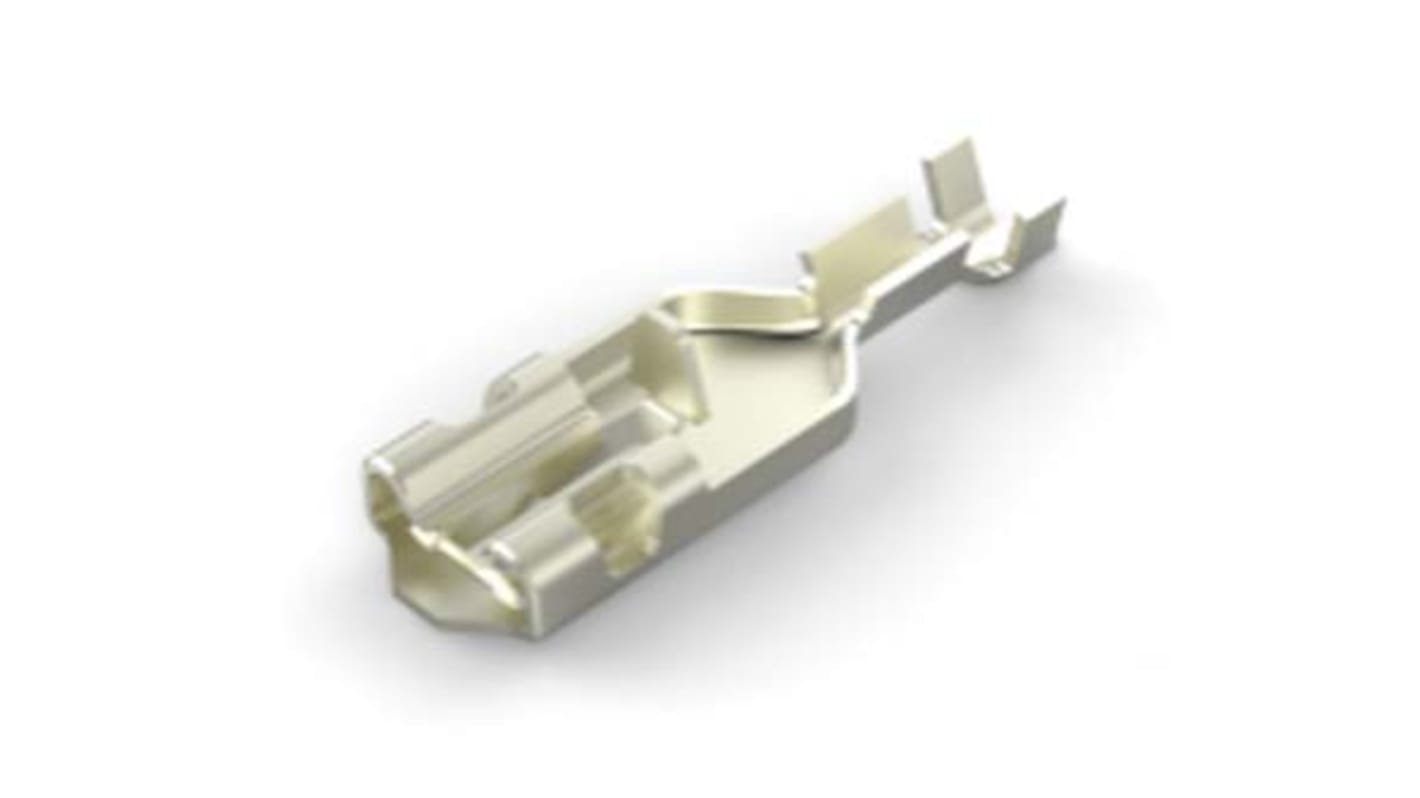

TE Connectivity Positive Lock 0.250 Uninsulated Female Spade Connector, Receptacle, 6.43 (W) x 0.84mm Tab Size
- RS Stock No.:
- 144-4275
- Mfr. Part No.:
- 2238139-1
- Brand:
- TE Connectivity
130 In stock - FREE next working day delivery available
Added
Price Each (On a Tape of 10)
£0.197
(exc. VAT)
£0.236
(inc. VAT)
| Units | Per unit | Per Tape* |
| 10 - 90 | £0.197 | £1.97 |
| 100 - 240 | £0.152 | £1.52 |
| 250 - 490 | £0.138 | £1.38 |
| 500 - 990 | £0.124 | £1.24 |
| 1000 + | £0.104 | £1.04 |
| *price indicative | ||
- RS Stock No.:
- 144-4275
- Mfr. Part No.:
- 2238139-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
The TE Connectivity (TE) 2238139-1 is Positive Lock Mark II receptacles are specifically designed to provide ease of assembly and secure retention to mating tabs. TE’s Positive Lock receptacles lock onto mating tabs and are removable only by deflecting an integrally designed repressor prior to withdrawal.
Integral lever locks receptacles onto tabs
Low insertion force for improved ergonomics
High temperature Positive Lock terminals operate in temperatures up to 250°C and the high temperature housings operate in 240°C
Low insertion force for improved ergonomics
High temperature Positive Lock terminals operate in temperatures up to 250°C and the high temperature housings operate in 240°C
Specifications
Attribute | Value |
|---|---|
| Type | Receptacle |
| Series | Positive Lock 0.250 |
| Gender | Female |
| Tab Size | 6.43 (W) x 0.84mm |
| Insulation | Uninsulated |
| Maximum Wire Size AWG | 18AWG |
| Minimum Wire Size AWG | 22AWG |
| Termination Method | Crimp |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Overall Length | 22.6mm |
