- RS Stock No.:
- 125-1982
- Brand:
- RS PRO
6000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 100)
£0.011
(exc. VAT)
£0.013
(inc. VAT)
Units | Per unit | Per Pack* |
100 + | £0.011 | £1.10 |
*price indicative |
- RS Stock No.:
- 125-1982
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

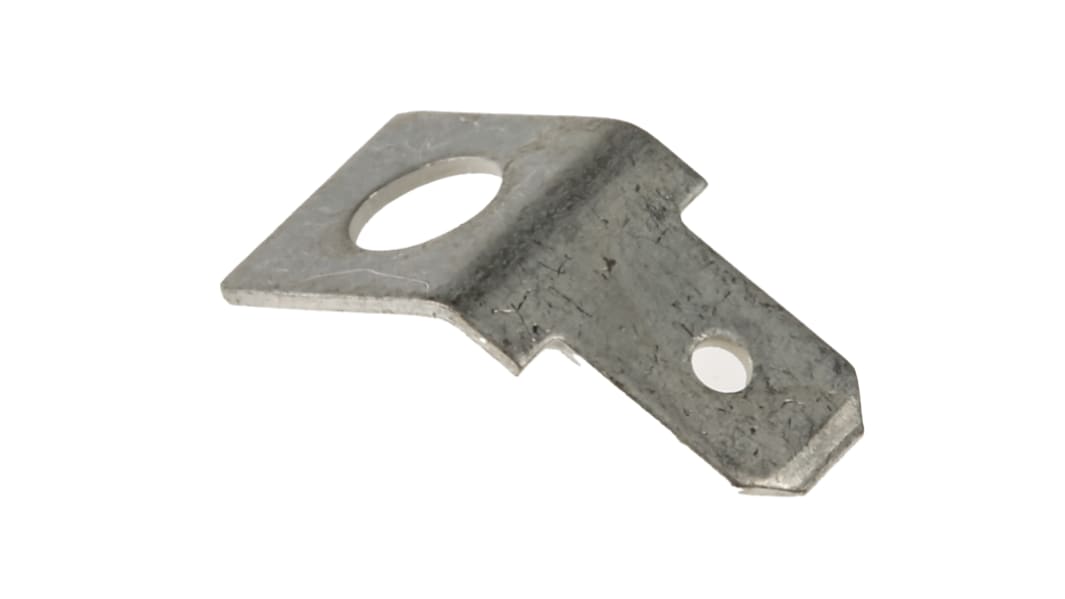

RS PRO Uninsulated Spade Connector, 4.75 mm x 0.5 mm Tab Size
This multipurpose spade connector from RS PRO is useful for mating, connection, or termination of wires to stud type electrical setups. It's made of tin-plated brass contact material, so it's an efficient conductor of electricity and resistant to corrosion. This means it's well-suited for industrial applications as it's long-lasting and high performing.
The connector has a 45º mount angle, with an overall length of 15.5 mm, so it's ideal for installation in confined spaces. It can be used in various areas such as machinery, electrical equipment, home appliances, computers and garages. This connector has been rigorously tested by engineers for quality. It also conforms to American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic control standards, which means the risk of electrostatic discharge is minimised.
The connector has a 45º mount angle, with an overall length of 15.5 mm, so it's ideal for installation in confined spaces. It can be used in various areas such as machinery, electrical equipment, home appliances, computers and garages. This connector has been rigorously tested by engineers for quality. It also conforms to American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic control standards, which means the risk of electrostatic discharge is minimised.
Features and Benefits
• Brass contact material
• Tin contact plating
• Male spade connector
• Uninsulated
• Mount angle of 45º
• Overall length of 15.5 mm
• Unshrouded
• Tab thickness of 0.5 mm
• Tab width of 4.75 mm
• Stud termination method
• Tab type
• Tin contact plating
• Male spade connector
• Uninsulated
• Mount angle of 45º
• Overall length of 15.5 mm
• Unshrouded
• Tab thickness of 0.5 mm
• Tab width of 4.75 mm
• Stud termination method
• Tab type
Specifications
Attribute | Value |
---|---|
Type | PCB Tab |
Gender | Male |
Tab Width | 4.75mm |
Tab Thickness | 0.5mm |
Tab Size | 4.75 x 0.5mm |
Insulation | Uninsulated |
Termination Method | Stud |
Contact Material | Brass |
Contact Plating | Tin |
Shrouded/Unshrouded | Unshrouded |
Overall Length | 15.5mm |
