- RS Stock No.:
- 125-1979
- Brand:
- RS PRO
- RS Stock No.:
- 125-1979
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

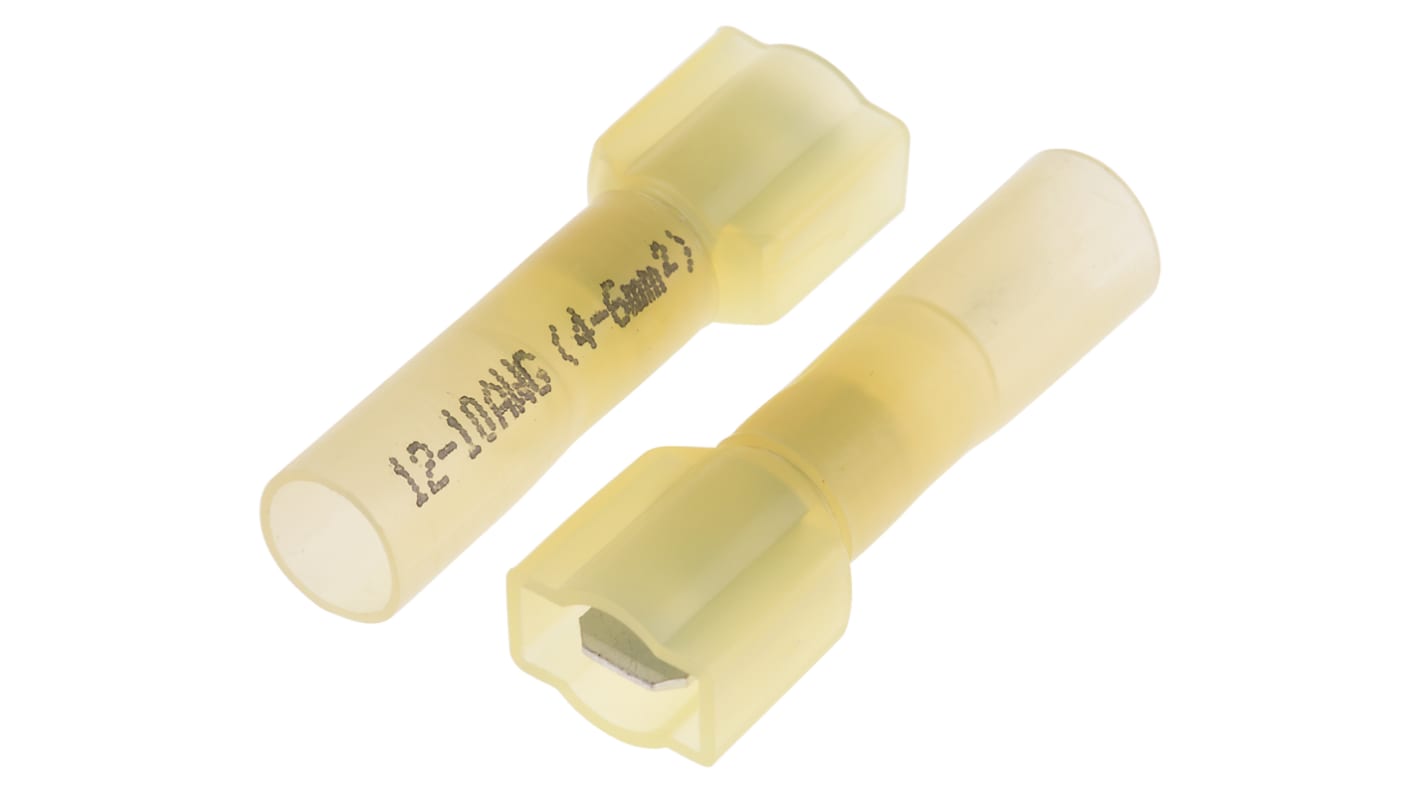

RS Pro Fully Insulated Heat Shrink Tab Wire Terminals
RS Pro range of fully insulated heat shrink tab wire terminals made from tin plated brass. These heat shrink tab connectors have a high density PE (polyethylene) heat shrink sleeve and nylon insulation which are colour coded to correspond with the wire size they are used with.
RS Heatshrinkable
Specifications
Attribute | Value |
---|---|
Type | Tab |
Minimum Wire Size mm² | 4mm² |
Gender | Male |
Maximum Wire Size mm² | 6mm² |
Tab Width | 6.35mm |
Tab Size | 6.35 x 0.8mm |
Tab Thickness | 0.8mm |
Insulation | Insulated |
Minimum Wire Size AWG | 12AWG |
Maximum Wire Size AWG | 10AWG |
Termination Method | Crimp |
Colour | Yellow |
Contact Material | Brass |
Insulation Material | HDPE, Nylon |
Shrouded/Unshrouded | Shrouded |
Overall Length | 39.5mm |
