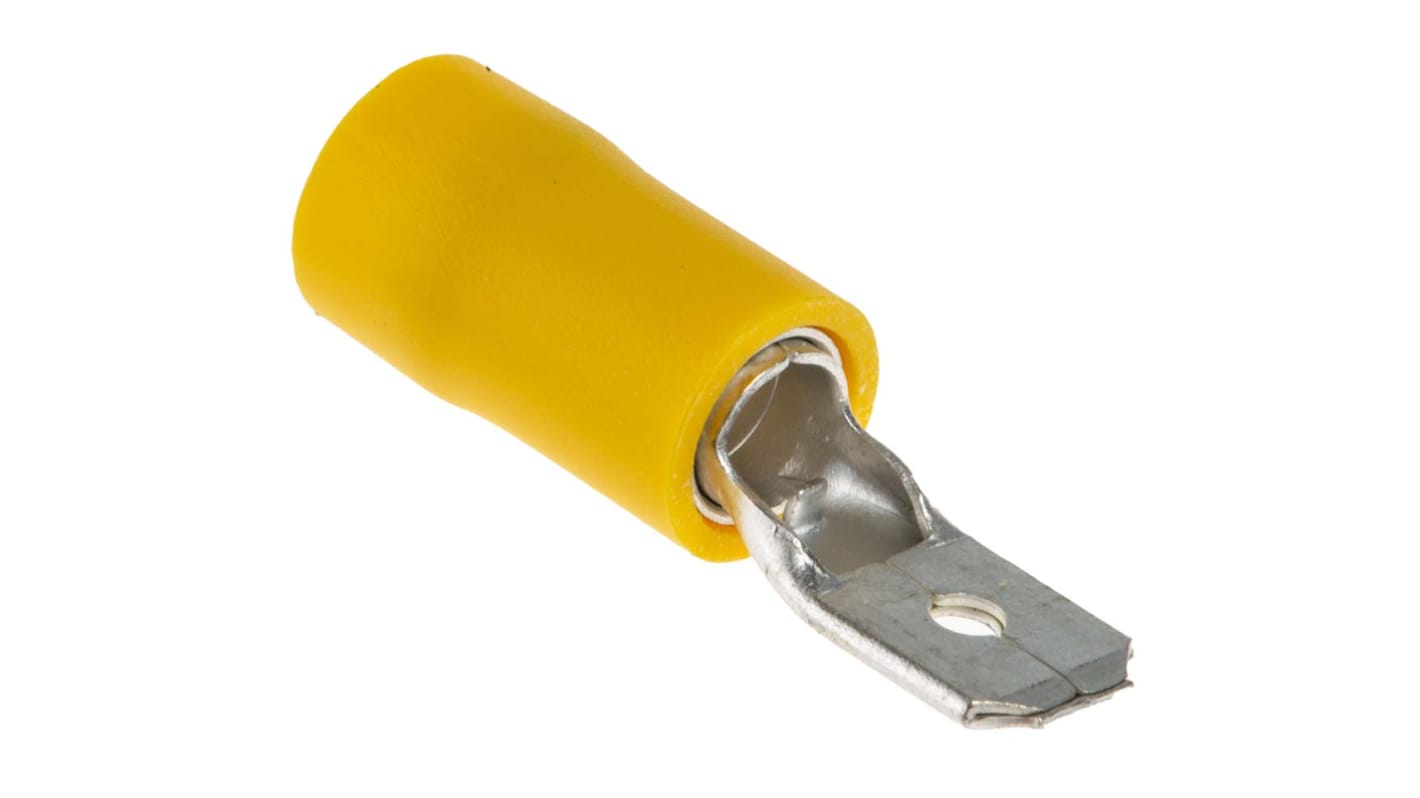

RS PRO Yellow Insulated Spade Connector, 6.35 x 0.8mm Tab Size, 2.5mm² to 6mm²

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Insulated Double Crimp Tab Terminals

RS Pro range of insulated crimp tab wire terminals made from brass with a copper sleeved barrel. These male tab connectors have vinyl or nylon insulation with a flared design for easy wire insertion. The insulation of these tab wire connectors is colour coded to correspond with the wire size they are used with.

RS Pro Range

Specifications
Attribute Value
Minimum Wire Size mm² 2.5mm²
Maximum Wire Size mm² 6mm²
Gender Male
Insulation Insulated
Colour Yellow
Tab Size 6.35 x 0.8mm
Tab Thickness 0.8mm
Tab Width 6.35mm
Shrouded/Unshrouded Unshrouded
Maximum Wire Size AWG 10AWG
Minimum Wire Size AWG 12AWG
Contact Material Brass
Termination Method Crimp
Overall Length 25mm
Contact Plating Tin
Insulation Material Vinyl
16500 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
£ 0.13
(exc. VAT)
£ 0.16
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
£0.13
£13.00
500 - 2400
£0.11
£11.00
2500 - 4900
£0.091
£9.10
5000 - 9900
£0.078
£7.80
10000 +
£0.065
£6.50
*price indicative
