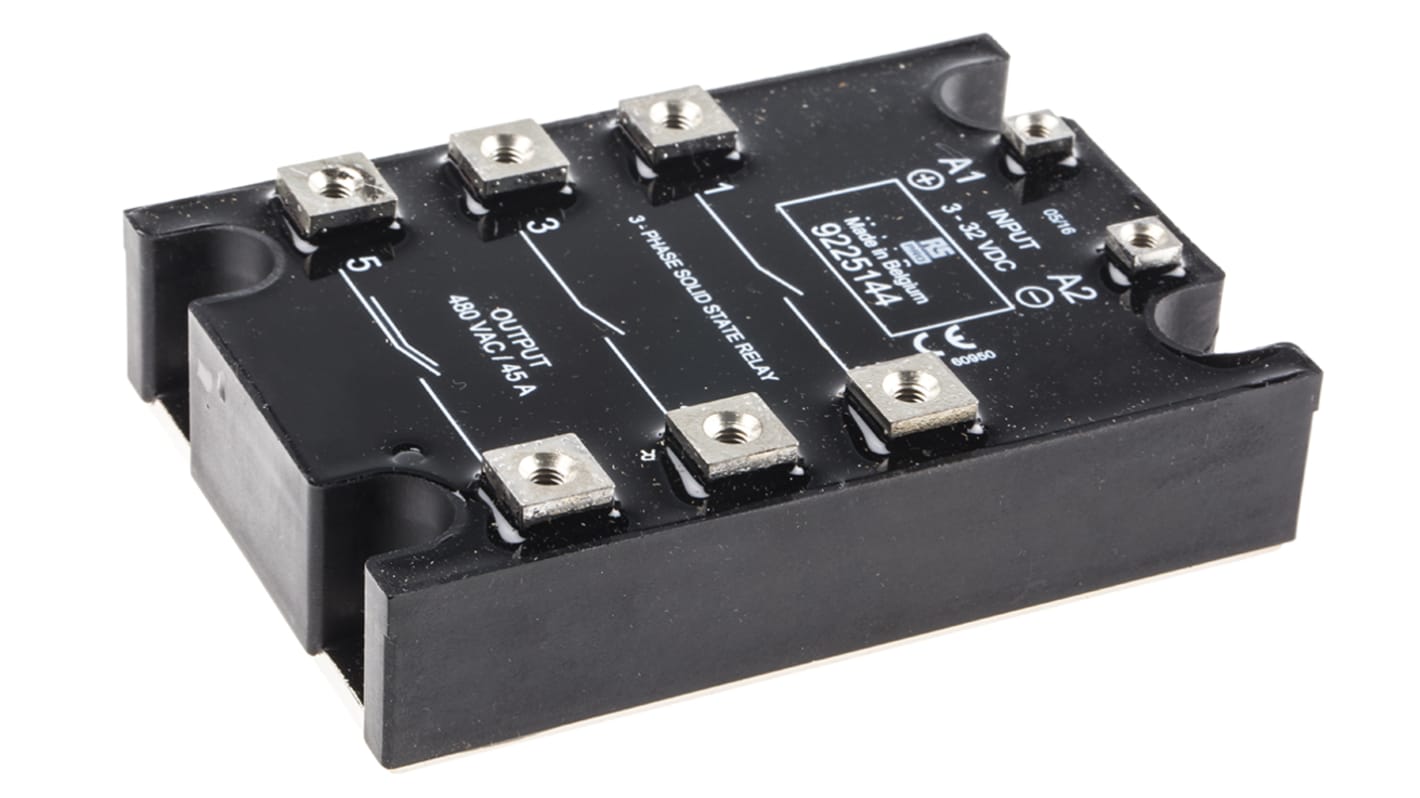

RS PRO Solid State Relay, 45 A rms Load, Panel Mount, 480 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-5144
- Brand:
- RS PRO
- RS Stock No.:
- 922-5144
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 45 A rms | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 480 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.4 A | |
| Number of Poles | 3 | |
| Contact Configuration | 3P-NO | |
| Terminal Type | Screw | |
| Output Device | Thyristor | |
| Relay Type | AC | |
| Load Voltage Range | 24 → 480V ac | |
| Maximum Turn On Time | 11ms | |
| Dimensions | 107 x 73.5 x 27mm | |
| Off State Leakage Current | 10 mA | |
| Operating Temperature Range | -20 → +80°C | |
| Length | 107mm | |
| Depth | 73.5mm | |
| Height | 27mm | |
| Standards Met | CE | |
| Special Features | Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V | |
