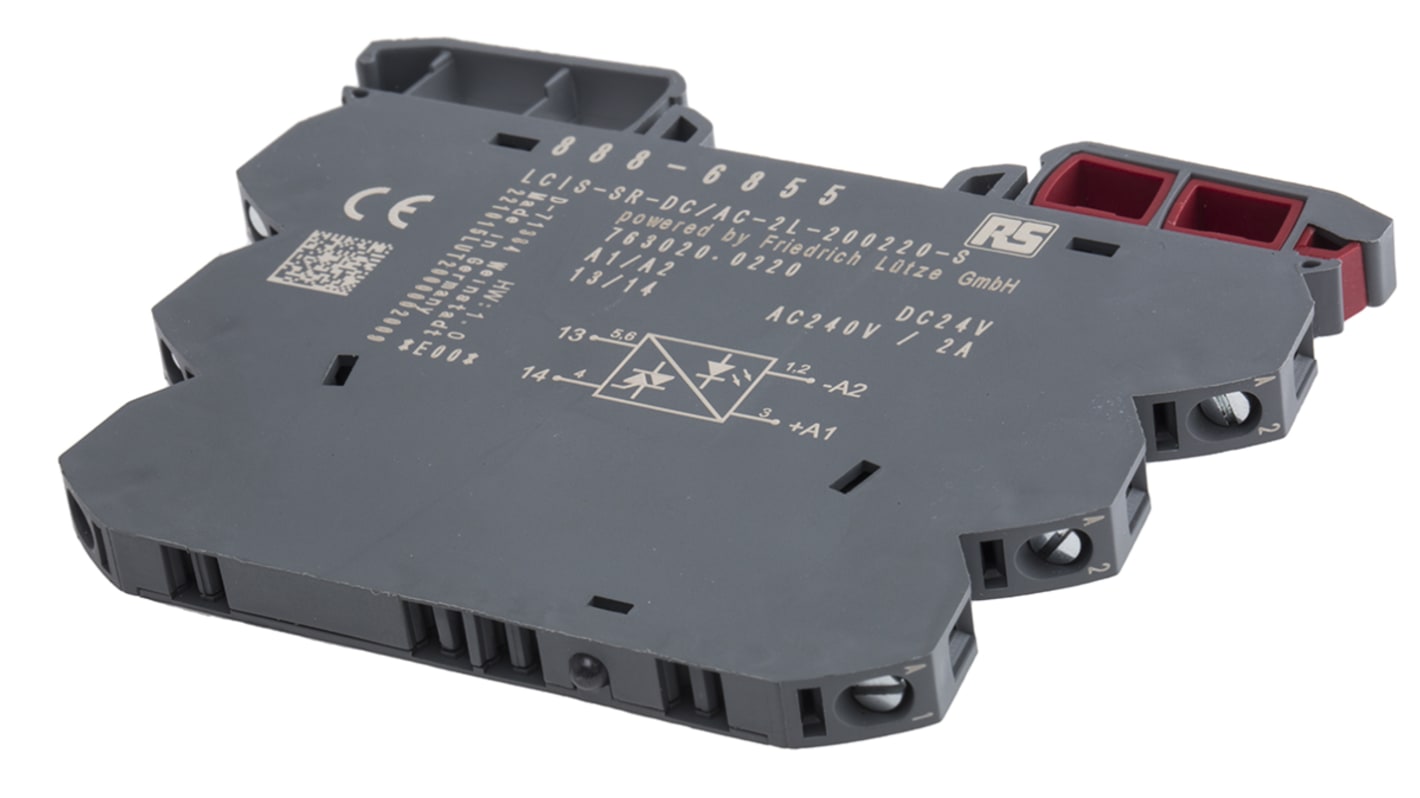

RS PRO Solid State Relay, 2 A Load, DIN Rail Mount, 264 V Load, 30 V Control

RS Stock No.:: 888-6855
Brand:: RS PRO

RS PRO Solid State Relay, 2 A Load, DIN Rail Mount, 264 V Load, 30 V Control

Available to back order for despatch 06/06/2024

Added

Price Each (In a Pack of 5)

£19.014

(exc. VAT)

£22.817

(inc. VAT)

Units	Per unit	Per Pack*
5 - 20	£19.014	£95.07
25 - 45	£18.444	£92.22
50 +	£17.644	£88.22
*price indicative

RS Stock No.:: 888-6855
Brand:: RS PRO

Technical Reference

RS Pro Datasheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

MosFet Technology Interface Relay Modules

Interface Solid State Relays – Covering a wide range of applications offering extremely accurate processing, especially for coupling signals and for switching loads of up to 250 V/16 A at temperatures ranging from _40 to +75. A compact width of 6.2mm which is excellent for narrow applications. Also available with spring loaded connections for areas with strong vibration.

High switching frequencies
Low control power
Wear and bounce free switching
Vibration and impact resistant
Long service life
Operating Temp -25 °C to -60 °C
Dimensions – 6.2 x 93 x 73 mm
LED Indicator

Approvals

UL, CSA, GL

Specifications

Attribute	Value
Maximum Load Current	2 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V
Minimum Load Voltage	20 V
Minimum Control Voltage	11 V
Maximum Control Voltage	30 V
Switching Type	AC
Control Voltage Range	11 → 30 V
Minimum Load Current	5 mA
Contact Configuration	SPST
Terminal Type	Screw
Output Device	Triac
Load Voltage Range	20 → 264V
Dimensions	6.2 x 73 x 93mm
Depth	73mm
Special Features	Green LED Indicator, Varistor
Length	6.2mm
Operating Temperature Range	-25 → +60°C
Standards Met	CSA, GL, UL
Height	93mm
Off State Leakage Current	1 mA
