Sensata / Crydom EZ Series Solid State Relay, 18 A Load, Panel Mount, 280 V rms Load, 32 V dc Control
- RS Stock No.:
- 736-0898
- Mfr. Part No.:
- EZE240D18
- Brand:
- Sensata / Crydom
14 In stock - FREE next working day delivery available
Added
Price Each
£43.70
(exc. VAT)
£52.44
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £43.70 |
| 5 - 9 | £41.52 |
| 10 - 24 | £39.33 |
| 25 - 49 | £37.15 |
| 50 + | £34.96 |
- RS Stock No.:
- 736-0898
- Mfr. Part No.:
- EZE240D18
- Brand:
- Sensata / Crydom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

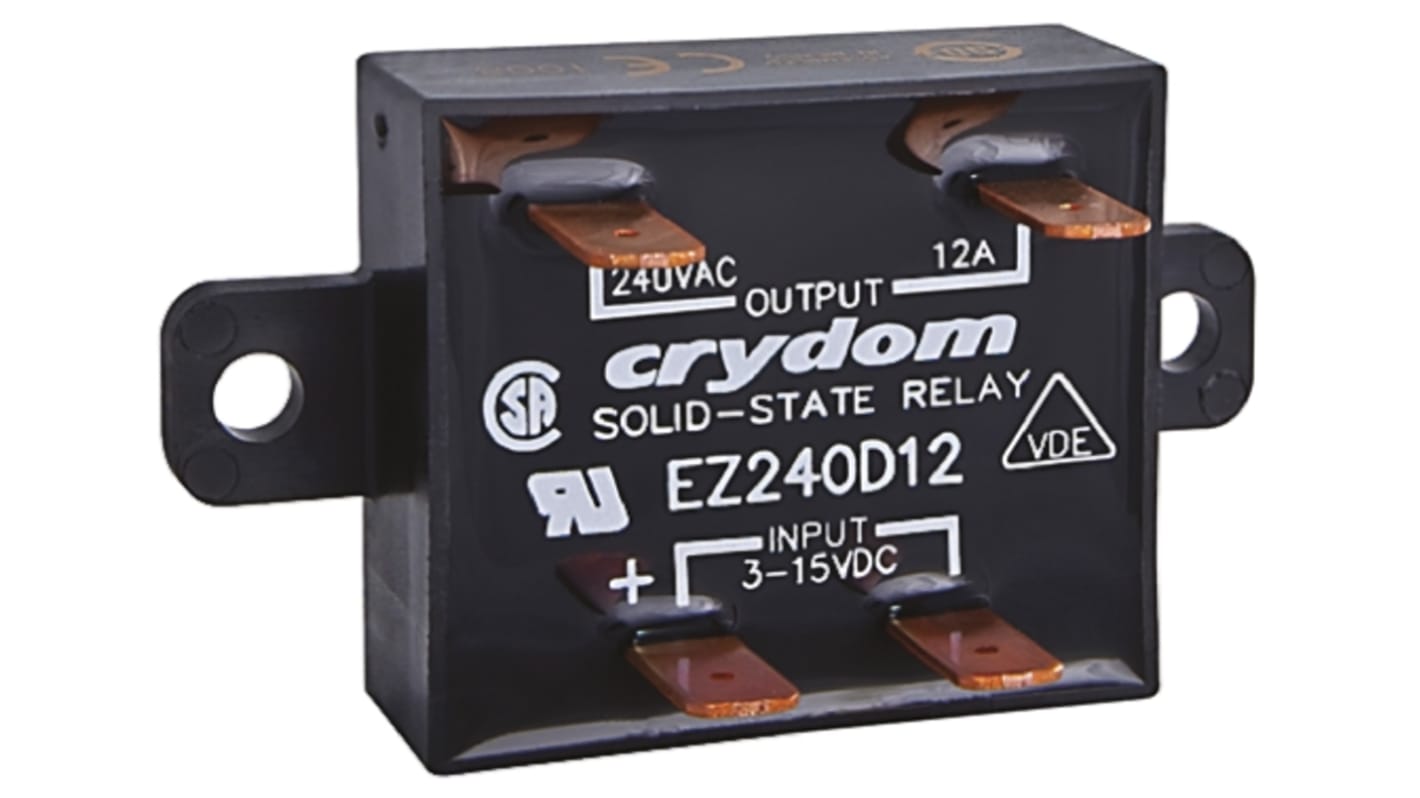

Crydom EZ Series Solid State Relays
Crydom EZ series panel mount AC output solid state relays are a compact design for low-profile applications.
Features and Benefits
Ratings from 5 A to 18 A @ 600 VAC
SCR output for heavy industrial loads
AC or DC control
1/4" fast-on terminals for easy installation
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Note
Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL, CSA, VDE
Approvals
UL; CSA; VDE
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 18 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V rms |
| Minimum Load Voltage | 24 V rms |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 15 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 15 → 32 V dc |
| Minimum Load Current | 150mA rms |
| Contact Configuration | SPST |
| Terminal Type | Quick Connect |
| Output Device | SCR |
| Package Style | Flat |
| Series | EZ |
| Maximum Turn On Time | 1/2 cycle |
| Load Voltage Range | 24 → 280Vrms |
| Dimensions | 66.8 x 38.1 x 24.1mm |
| Off State Leakage Current | 0.1mA rms |
| Length | 66.8mm |
| Depth | 38.1mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Height | 24.1mm |
| Maximum Operating Temperature | +80°C |
- RS Stock No.:
- 736-0898
- Mfr. Part No.:
- EZE240D18
- Brand:
- Sensata / Crydom
