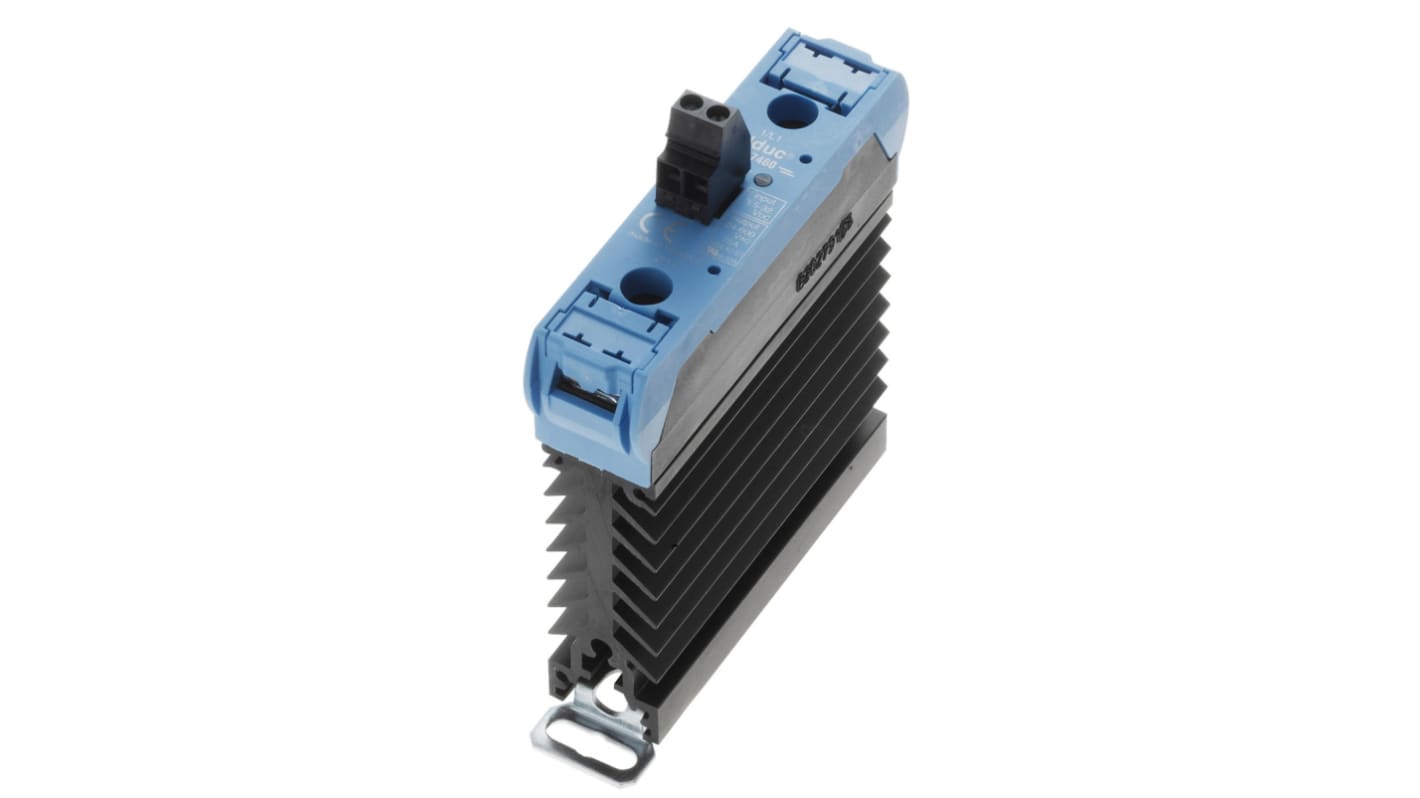

Celduc SUL8-SUM8 Series Solid State Relay, 23 A Load, Panel Mount, 275 V ac Load, 32 V dc Control
- RS Stock No.:
- 685-0974
- Mfr. Part No.:
- SUL842070
- Brand:
- Celduc
3 In stock - FREE next working day delivery available
68 available from Europe for delivery within 1 working day(s).
Added
Price Each
£50.47
(exc. VAT)
£60.56
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £50.47 |
| 5 - 9 | £48.45 |
| 10 + | £47.45 |
- RS Stock No.:
- 685-0974
- Mfr. Part No.:
- SUL842070
- Brand:
- Celduc
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Single Phase Solid State Relays, Celpac Series
Celduc range of compact solid state relays with integral heat sink for DIN Rail mounting.
Zero voltage switching
LED indication
DIN Rail mount
LED indication
DIN Rail mount
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 23 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 275 V ac |
| Minimum Load Voltage | 12 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Range | celpac Ready to use |
| Minimum Load Current | 5 mA |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Output Device | Triac |
| Relay Type | Single Phase Solid State Contactor |
| Maximum Turn On Time | 10ms |
| Load Voltage Range | 12 → 275V ac |
| Series | SUL8-SUM8 |
| Dimensions | 91 x 22.5 x 73.5mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Height | 73.5mm |
| Depth | 22.5mm |
| Length | 91mm |
| Off State Leakage Current | 1 mA |
| Operating Temperature Range | -40 → +80°C |
| Standards Met | CE, EAC, cURus |
