Siemens 3RF23 Series Solid State Relay, 20 A Load, DIN Rail Mount, 230 V Load, 24 V dc Control
- RS Stock No.:
- 467-4762
- Mfr. Part No.:
- 3RF2320-1AA02
- Brand:
- Siemens
29 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£59.66
(exc. VAT)
£71.59
(inc. VAT)
| Units | Per unit |
| 1 + | £59.66 |
- RS Stock No.:
- 467-4762
- Mfr. Part No.:
- 3RF2320-1AA02
- Brand:
- Siemens
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

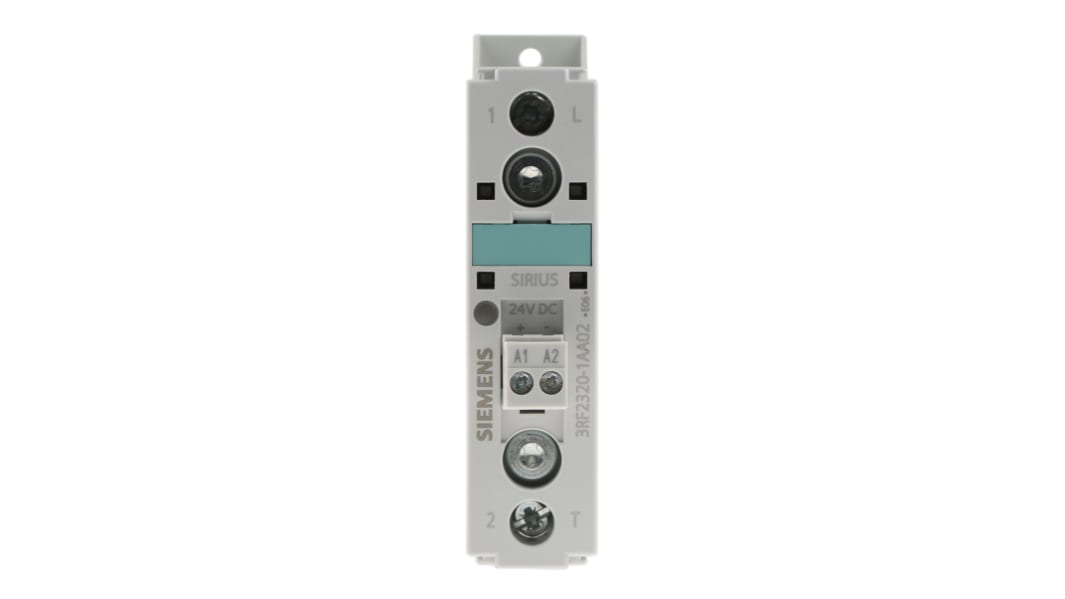

Siemens Solid State Relay, Zero-Cross Switching Type, 20A Current Rating - SIRIUS Classic Series - 3RF2320-1AA02
Power up your circuit in a flash using this solid-state relay from Siemens. It changes an electrical signal to an optical one before sending it to the circuit, meaning it works without any moving contacts. This means there's minimal risk of wear and you get long-lasting performance. The unit uses zero-cross switching, so it turns on when the load voltage is close to zero to minimise noise. Mount it in a snap by simply clipping it to your DIN rail. You can use this device to control your robotics and instrumentation systems.
• IP20 rating means it's finger-safe and protected against objects larger than 12mm
• Broad operating temperature range between -25°C and +60°C for use in challenging environments
• Compact dimensions of 100 (H) x 22.5 (W) x 140.5mm (D) to add minimal bulk to your rail
• Screw terminals for a secure, vibration-proof connection without the need for special tools
• Broad operating temperature range between -25°C and +60°C for use in challenging environments
• Compact dimensions of 100 (H) x 22.5 (W) x 140.5mm (D) to add minimal bulk to your rail
• Screw terminals for a secure, vibration-proof connection without the need for special tools
What's the current rating of this SSR?
This relay has a current rating of 20A, so it's a safe bet for use with heavy-duty equipment.
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 20 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 230 V |
| Minimum Load Voltage | 24 V |
| Maximum Control Voltage | 24 V dc |
| Minimum Control Voltage | 15 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 15 → 24 V dc |
| Minimum Load Current | 0.5 A |
| Range | Sirius Classic |
| Number of Poles | 1 |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Output Device | Thyristor |
| Relay Type | Solid State Relay |
| Load Voltage Range | 24 → 230V |
| Series | 3RF23 |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 22.5 x 140.5 x 100mm |
| Off State Leakage Current | 10 mA |
| Maximum Operating Temperature | +60°C |
| Depth | 140.5mm |
| Operating Temperature Range | -25 → +60°C |
| Height | 100mm |
| Standards Met | EAC |
| Minimum Operating Temperature | -25°C |
