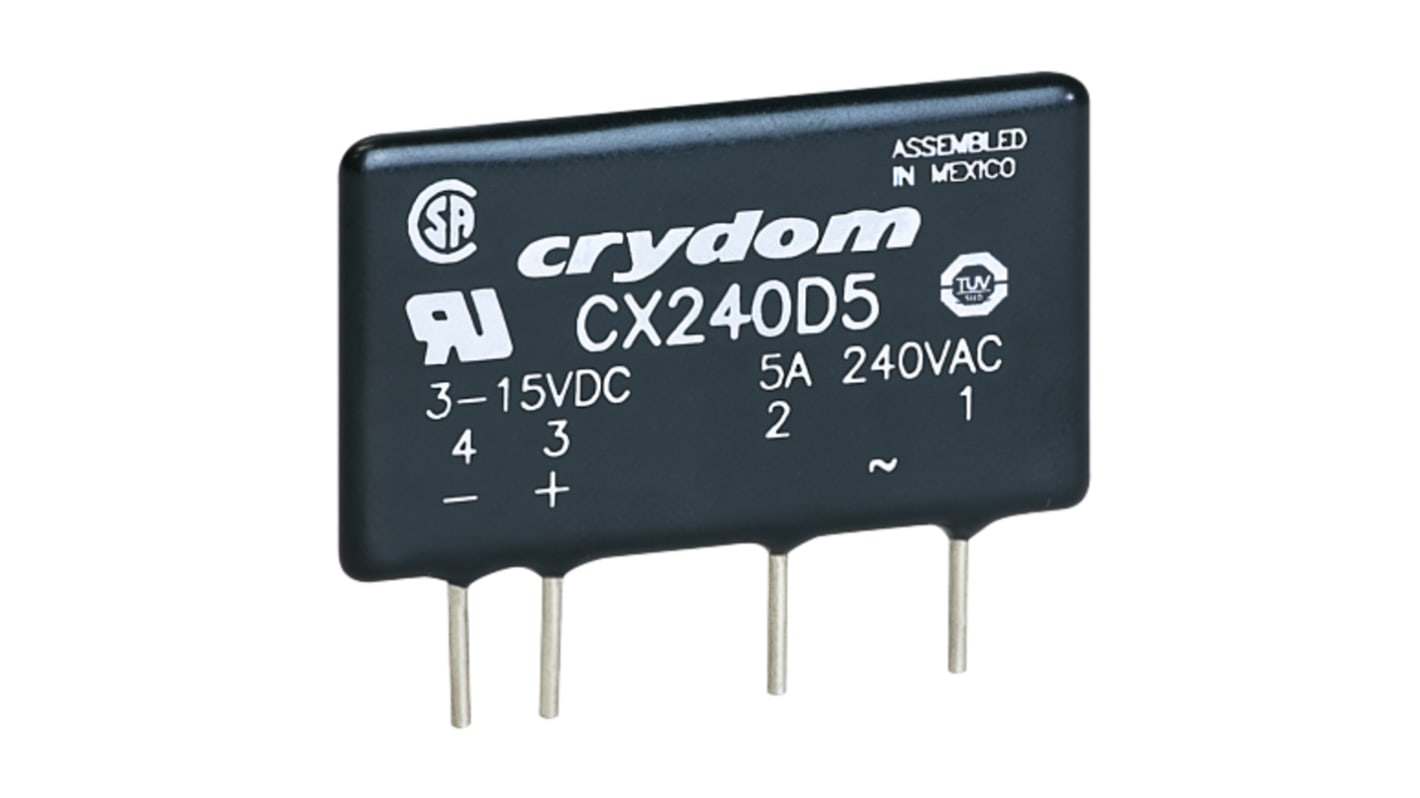

Sensata / Crydom 5 A Solid State Relay, Zero Cross, PCB Mount, SCR, 280 V ac Maximum Load

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

CX Series SIL SSR, 5A at 12 to 660Vac

Exceptional surge rating and steady state rating of 5A ac
Models to switch from 48-660Vrms
250A pk 1-cycle surge capability
Input-Output capacitance: 10pF
Zero-cross switching where stated otherwise random-fire
Operating temperature range: -30 to +80°C
Dimensions H33mm x W7.6mm x D43.1mm

Approvals

UL, CSA, VDE

Approvals

UL; CSA; VDE

Specifications
Attribute Value
Minimum Load Current 0.06 A
Maximum Load Current 5 A
Mounting Type PCB Mount
Minimum Load Voltage 12 V ac
Maximum Load Voltage 280 V ac
Maximum Control Voltage 32 V
Switching Type Zero Cross
Output Device SCR
Dimensions 43.1 x 7.6 x 25.4mm
Control Voltage Range 15 → 32 V dc
Height 25.4mm
Length 43.1mm
Operating Temperature Range -30 → +80°C
Minimum Operating Temperature -30°C
Depth 7.6mm
Load Voltage Range 12 → 280V ac
Maximum Operating Temperature +80°C
172 In stock - FREE next working day delivery available
Price Each
£ 11.02
(exc. VAT)
£ 13.22
(inc. VAT)
Units
Per unit
1 - 9
£11.02
10 - 99
£9.93
100 +
£9.23
