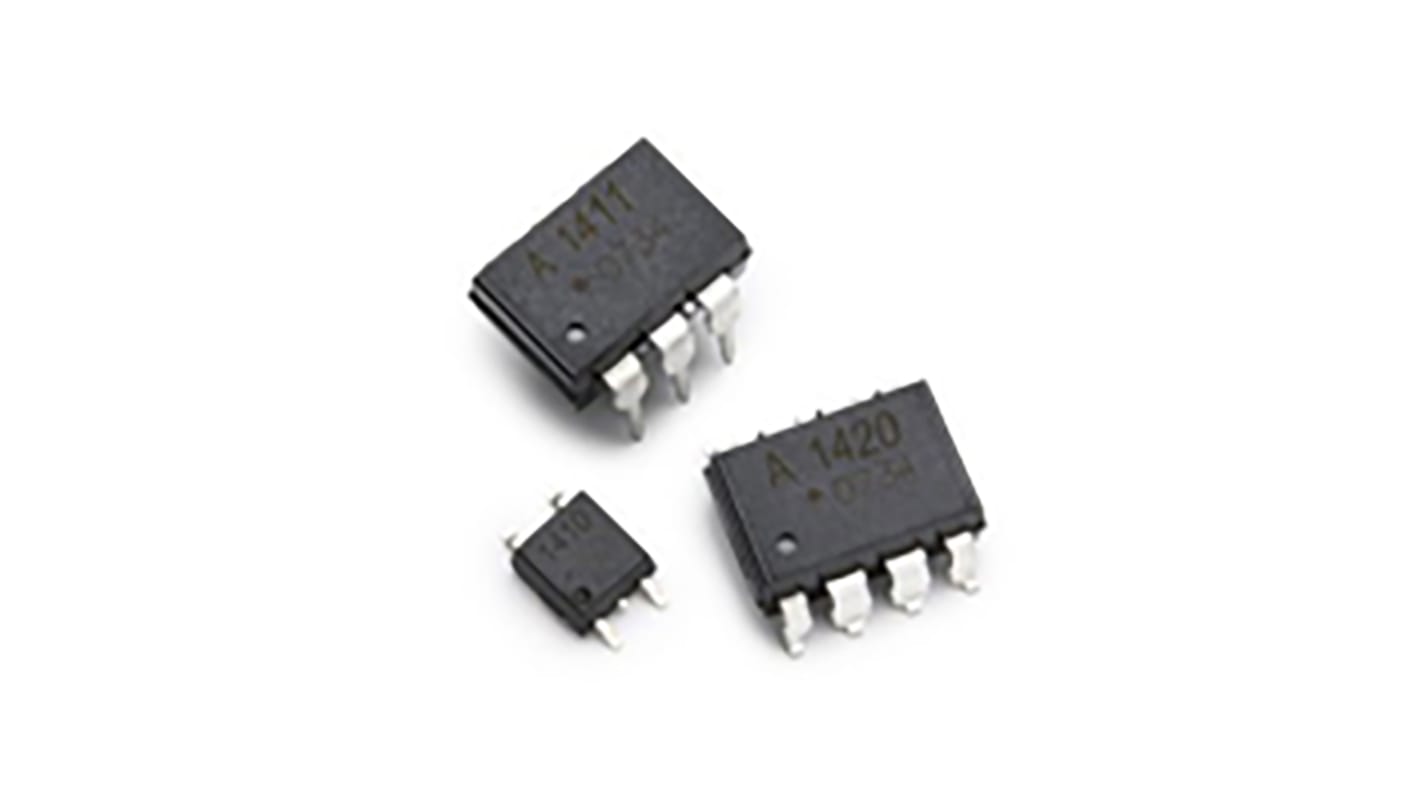

Solid State Relay (Photo MOSFET), ASSR Series, Avago Technologies
The Avago Technologies Photo MOSFET Solid State Relay family consists of an infrared light-emitting diode (LED) and the detector which consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs.
Optocouplers, Avago Technologies
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 0.12 A |
Mounting Type | Surface Mount |
Maximum Load Voltage | 400 V |
Minimum Load Voltage | -400 V |
Maximum Control Voltage | 0.8 V |
Switching Type | AC/DC, DC Only |
Contact Configuration | SPST |
Terminal Type | 4 Pin |
Output Device | MOSFET |
Package Style | SO |
Relay Type | PhotoMOSFET |
Maximum Turn On Time | 1ms |
Load Voltage Range | -400 → +400V |
Series | ASSR-4110 |
Dimensions | 4.3 x 4.4 x 2mm |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Length | 4.3mm |
Off State Leakage Current | 1 μA |
Maximum Operating Temperature | +85°C |
Height | 2mm |
Special Features | High-Speed Photovoltaic Diode Array |
Depth | 4.4mm |
