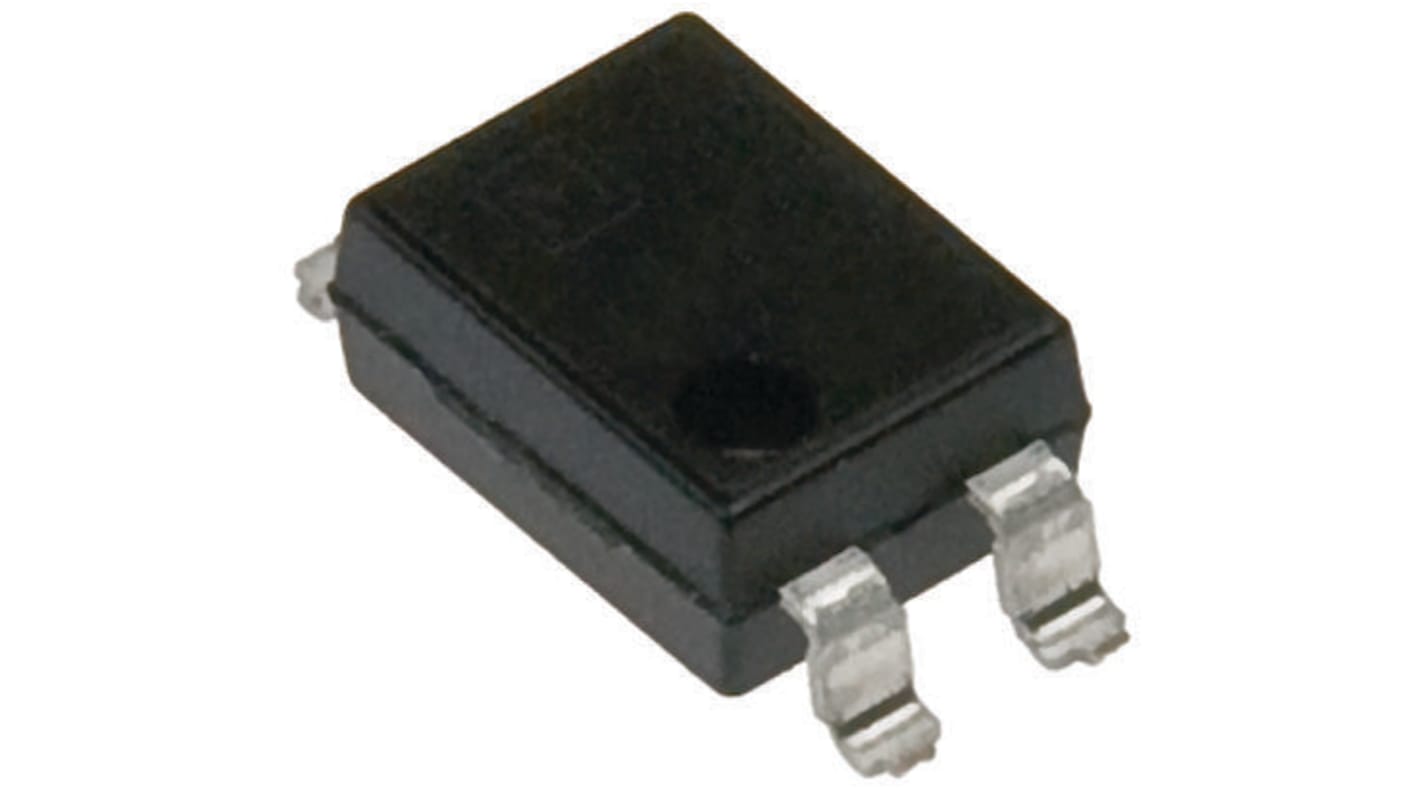

Panasonic Solid State Relay, 1.1 A Load, Surface Mount, 60 V Load, 5 V dc Control
- RS Stock No.:
- 173-9234
- Mfr. Part No.:
- AQY212GHA
- Brand:
- Panasonic
300 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 100)
£2.97
(exc. VAT)
£3.56
(inc. VAT)
| Units | Per unit | Per Tube* |
| 100 + | £2.97 | £297.00 |
| *price indicative | ||
- RS Stock No.:
- 173-9234
- Mfr. Part No.:
- AQY212GHA
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
AQY Series
Controls low-level analog signals
Low-level off-state leakage current of max. 1 μA
Low on-resistance -AQY22 Series
Low-level off-state leakage current of max. 1 μA
Low on-resistance -AQY22 Series
Approvals
UL, C-UL (not for the AQY22 Series)
Panasonic SPNO SSR
The Panasonic 1.1A SPNO SSR surface mount solid state relay is actuated with the help of a 60VDC coil and up to 1.1A DC/AC current through the coil to switch positions. It is a high capacity power PhotoMos relay. PhotoMOS relays have extremely low closed-circuit offset voltage. This particular feature enables control of low analogue signals without distortion.
Features and Benefits
• Environmental friendly product
• Compact size four pin DIP
• Isolation voltage between the coil and contacts is 5KV
• Service temperature range between -40°C and 85°C
• High sensitivity
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
• Efficiently controls low level analogue signals
• Assured better performance as compared to mercury or mechanical relays
• Compact size four pin DIP
• Isolation voltage between the coil and contacts is 5KV
• Service temperature range between -40°C and 85°C
• High sensitivity
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
• Efficiently controls low level analogue signals
• Assured better performance as compared to mercury or mechanical relays
Applications
• Measuring instruments
• Security and disaster-preventing system
• I/O for alarm devices
• Sensing equipment
• Security and disaster-preventing system
• I/O for alarm devices
• Sensing equipment
Certifications
• UL certified
• C-UL certified
• C-UL certified
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 1.1 A |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 60 V |
| Minimum Load Voltage | 0 V |
| Minimum Control Voltage | 1.5 V |
| Maximum Control Voltage | 5 V dc |
| Switching Type | AC/DC |
| Control Voltage Range | 1.5 → 5 V |
| Minimum Load Current | 1.1 A |
| Terminal Type | Surface Mount |
| Contact Configuration | SPST |
| Output Device | PhotoMOS |
| Package Style | DIP |
| Maximum Turn On Time | 5ms |
| Load Voltage Range | Maximum of 60V |
| Dimensions | 6.4 x 4.78 x 2.9mm |
| Length | 6.4mm |
| Operating Temperature Range | -40 → +85°C |
| Height | 2.9mm |
| Off State Leakage Current | 1 μA |
| Depth | 4.8mm |
- RS Stock No.:
- 173-9234
- Mfr. Part No.:
- AQY212GHA
- Brand:
- Panasonic
