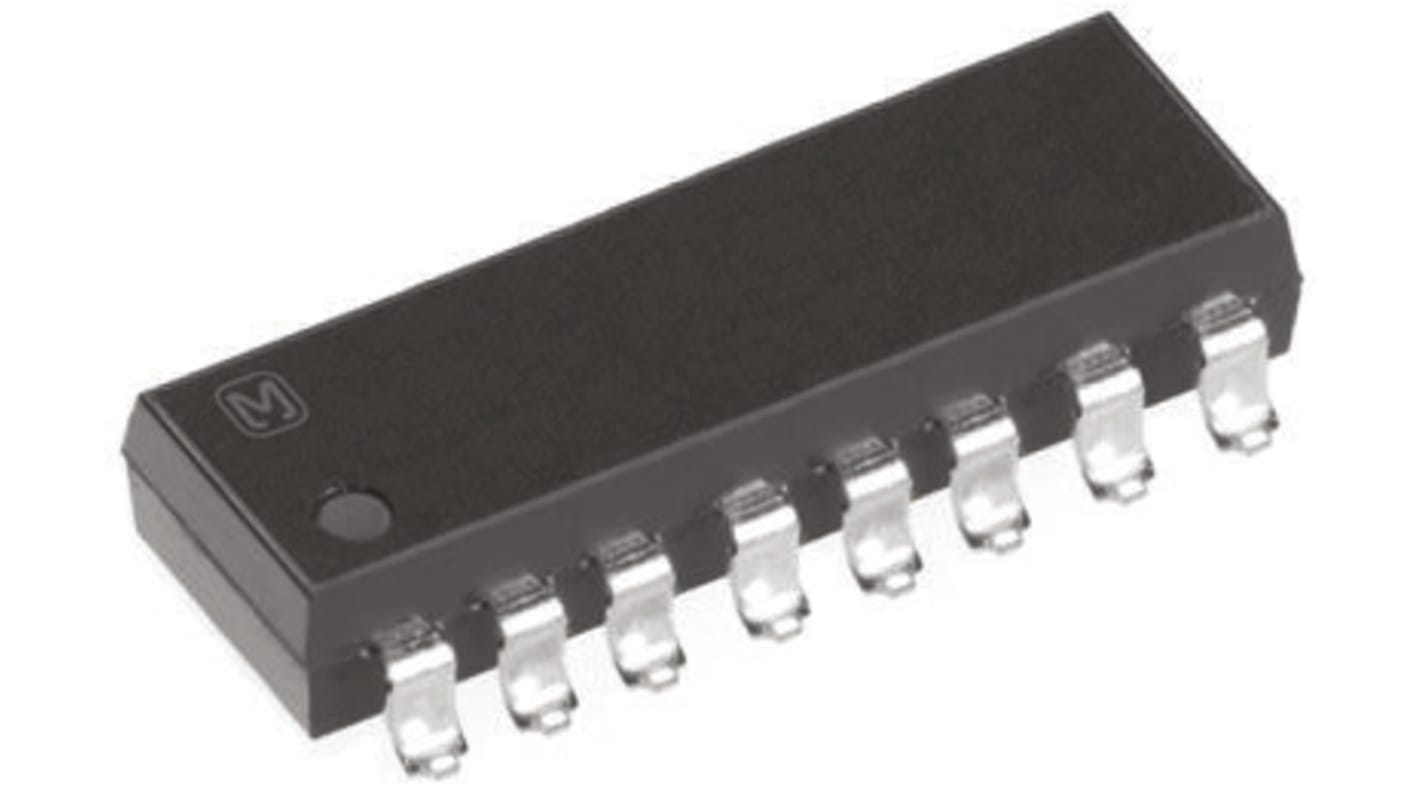

Panasonic 0.06 A 4PST-NO Solid State Relay, PCB Mount, MOSFET, 40 V Maximum Load

  • RS Stock No. 173-9015
  • Mfr. Part No. AQS221N2S
  • Brand Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

AQS Series

These PCB mount PhotoMOS relays have 4 channels and a SOP16-pin package. Typical applications include measuring and testing equipment, telecoms and broadcasting equipment and medical equipment.

4-channels in a small SOP16-pin package
4 form A use, as well as 4 independent 1 form A
Excellent electrical characteristics output capacitance 1.0pF (typ.)

Specifications
Attribute Value
Minimum Load Current 0.06 A
Maximum Load Current 0.06 A
Mounting Type PCB Mount
Maximum Load Voltage 40 V
Minimum Control Voltage 1.5 V dc
Maximum Control Voltage 5 V dc
Contact Configuration 4PST-NO
Terminal Type PCB Pin
Output Device MOSFET
Maximum Turn On Time 0.2 ms
Dimensions 10.37 x 4.4 x 2.1mm
Minimum Operating Temperature -40°C
Depth 4.4mm
Load Voltage Range 40V
Operating Temperature Range -40 → +85°C
Length 10.37mm
Off State Leakage Current 0.01 μA
Height 2.1mm
Maximum Operating Temperature +85°C
Available to back order for despatch 21/09/2020
Price Each (In a Tube of 50)
£ 15.997
(exc. VAT)
£ 19.196
(inc. VAT)
Units
Per unit
Per Tube*
50 +
£15.997
£799.85
*price indicative
