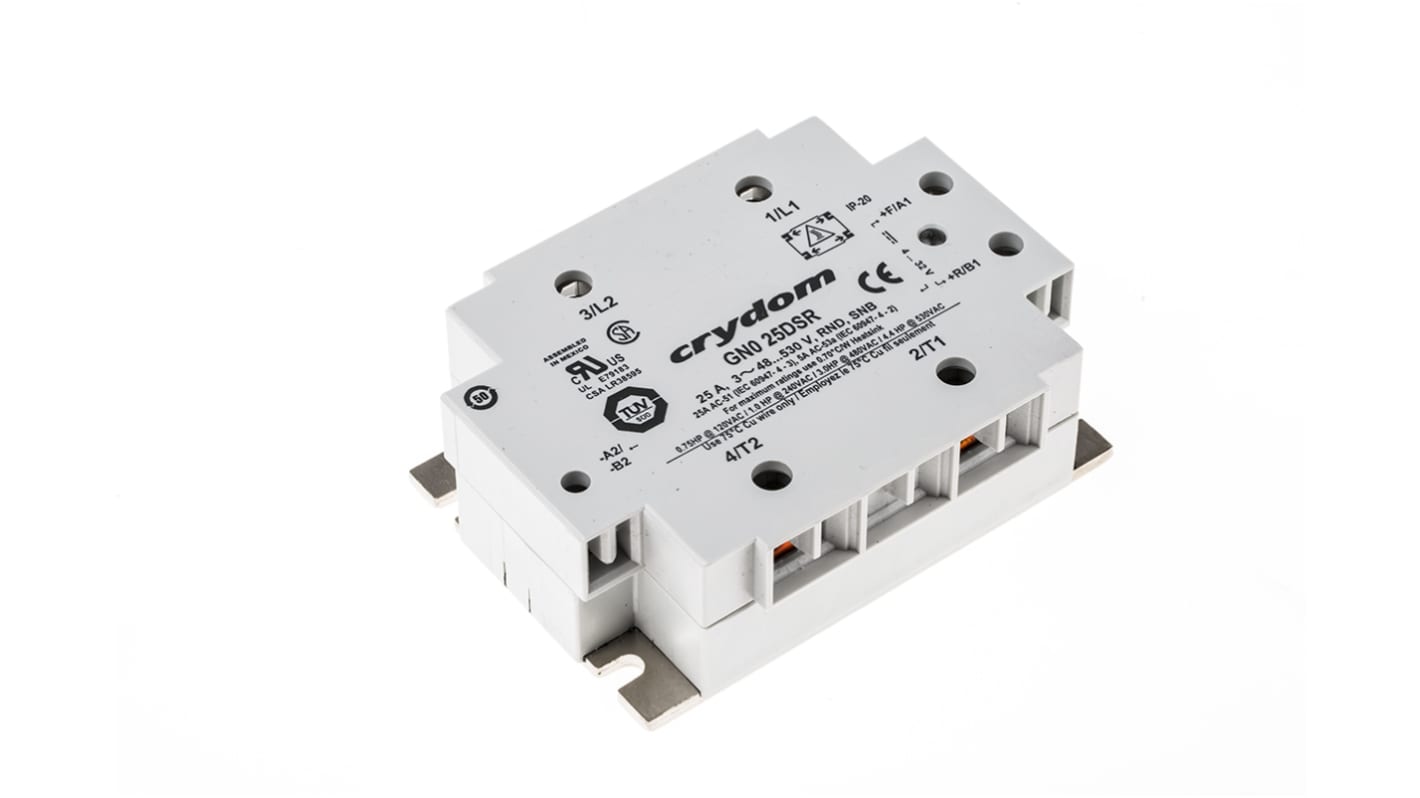

Sensata / Crydom GN0 Series Solid State Relay, 24 A rms Load, Panel Mount, 530 V rms Load, 32 V dc Control
- RS Stock No.:
- 170-7336
- Mfr. Part No.:
- GN025DSR
- Brand:
- Sensata / Crydom
Available to back order for despatch 13/08/2024
Added
Price Each
£311.87
(exc. VAT)
£374.24
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £311.87 |
| 5 - 9 | £296.28 |
| 10 - 24 | £280.68 |
| 25 - 49 | £265.09 |
| 50 + | £249.50 |
- RS Stock No.:
- 170-7336
- Mfr. Part No.:
- GN025DSR
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Crydom’s CZT products are technology proven AC output solid state relays and contactors in the 3 main types of mounting packages: DIN Rail Mount, Panel Mount and PCB Mount. These relays offer a broad range of power ratings which makes them suitable for diverse applications.
Three-phase Motor Reversing solid-state relay
Ratings of 25A and 50A per phase @ 48-530 VAC
SCR output for heavy industrial loads
DC control
LED input status indicator
Ratings of 25A and 50A per phase @ 48-530 VAC
SCR output for heavy industrial loads
DC control
LED input status indicator
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 24 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 530 V rms |
| Minimum Load Voltage | 48Vrms |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 4 V dc |
| Switching Type | Zero Voltage Turn-On |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 0.1mA rms |
| Terminal Type | Screw |
| Output Device | SCR |
| Relay Type | Solid State Relay |
| Load Voltage Range | 48 → 530Vrms |
| Maximum Turn On Time | 150ms |
| Series | GN0 |
| Dimensions | 101.3 x 35.4 x 79.7mm |
| Capacitance | 8pF |
| Length | 101.3mm |
| Height | 79.7mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Special Features | LED Input Status Indicator |
| Maximum Operating Temperature | +80°C |
| Depth | 35.4mm |
| Off State Leakage Current | 6mArms |
