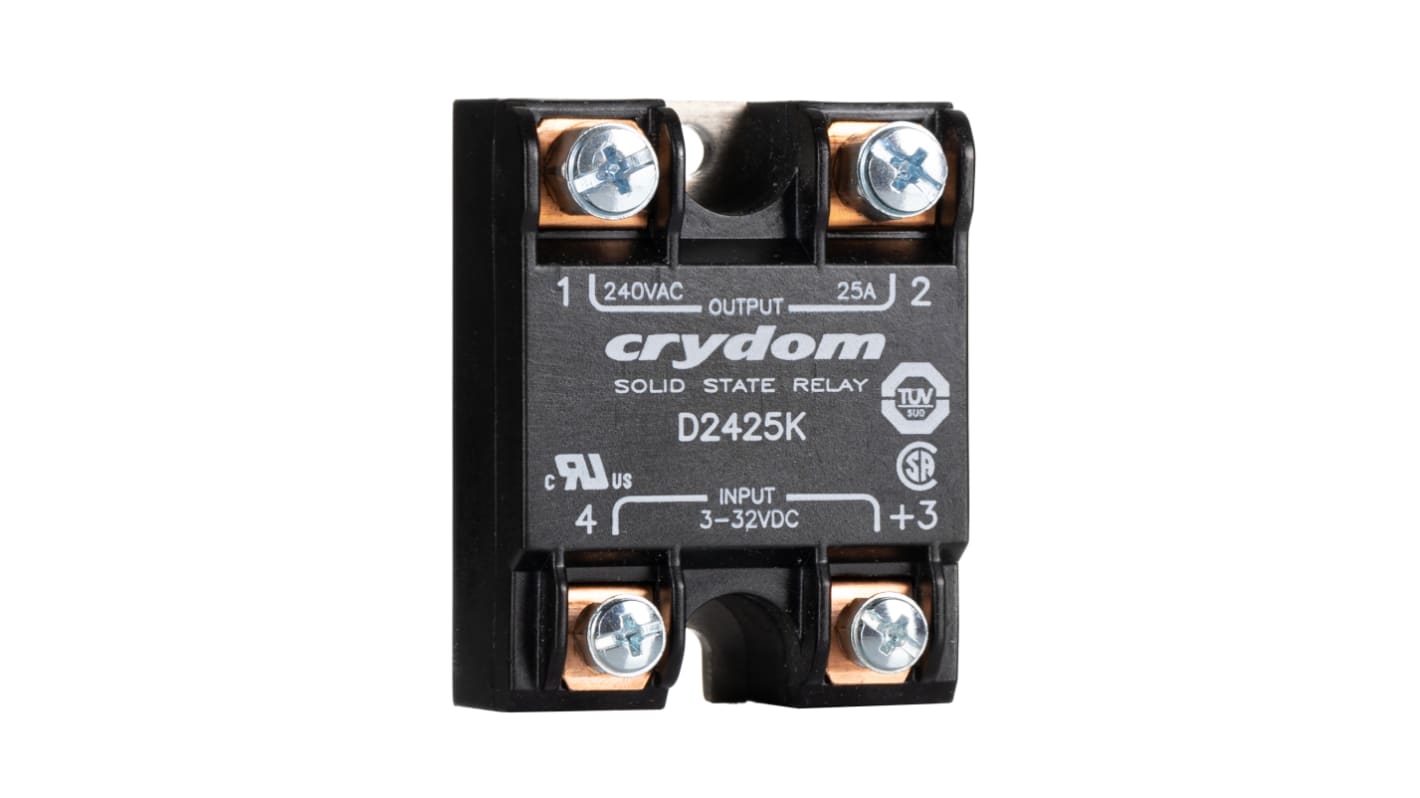

Sensata / Crydom 25 A rms Solid State Relay, Zero Crossing, Panel Mount, SCR, 280 V dc Maximum Load

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Crydom Series 1 Solid State Relays

Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.

Features and Benefits

600 V blocking capacity SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

Crydom Solid State Relay and Accessories

Specifications
Attribute Value
Minimum Load Current 150 mA rms
Maximum Load Current 25 A rms
Series 1
Mounting Type Panel Mount
Minimum Load Voltage 24 V dc
Maximum Load Voltage 280 V dc
Minimum Control Voltage 4 V dc
Maximum Control Voltage 32 V dc
Switching Type Zero Crossing
Terminal Type Screw
Output Device SCR
Maximum Turn On Time 1/2 cycles
Dimensions 44.5 x 57.3 x 26.4mm
Capacitance 8pF
Depth 57.3mm
Control Voltage Range 4 32 V dc
Special Features AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers
Standards Met CE, CSA LR 81689, CULus Recognised E116949, EN 60950-1, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 62314, UL, VDE Approved 10143 UG
Relay Type Solid State Relay
Load Voltage Range 24 280V ac
Height 26.4mm
Maximum Operating Temperature +80°C
Number of Poles 1
Minimum Operating Temperature -40°C
Length 44.5mm
Off State Leakage Current 1 mArms
Operating Temperature Range -40 +80°C
25 In stock for FREE next working day delivery
Price Each
£ 31.70
(exc. VAT)
£ 38.04
(inc. VAT)
Units
Per unit
1 +
£31.70
