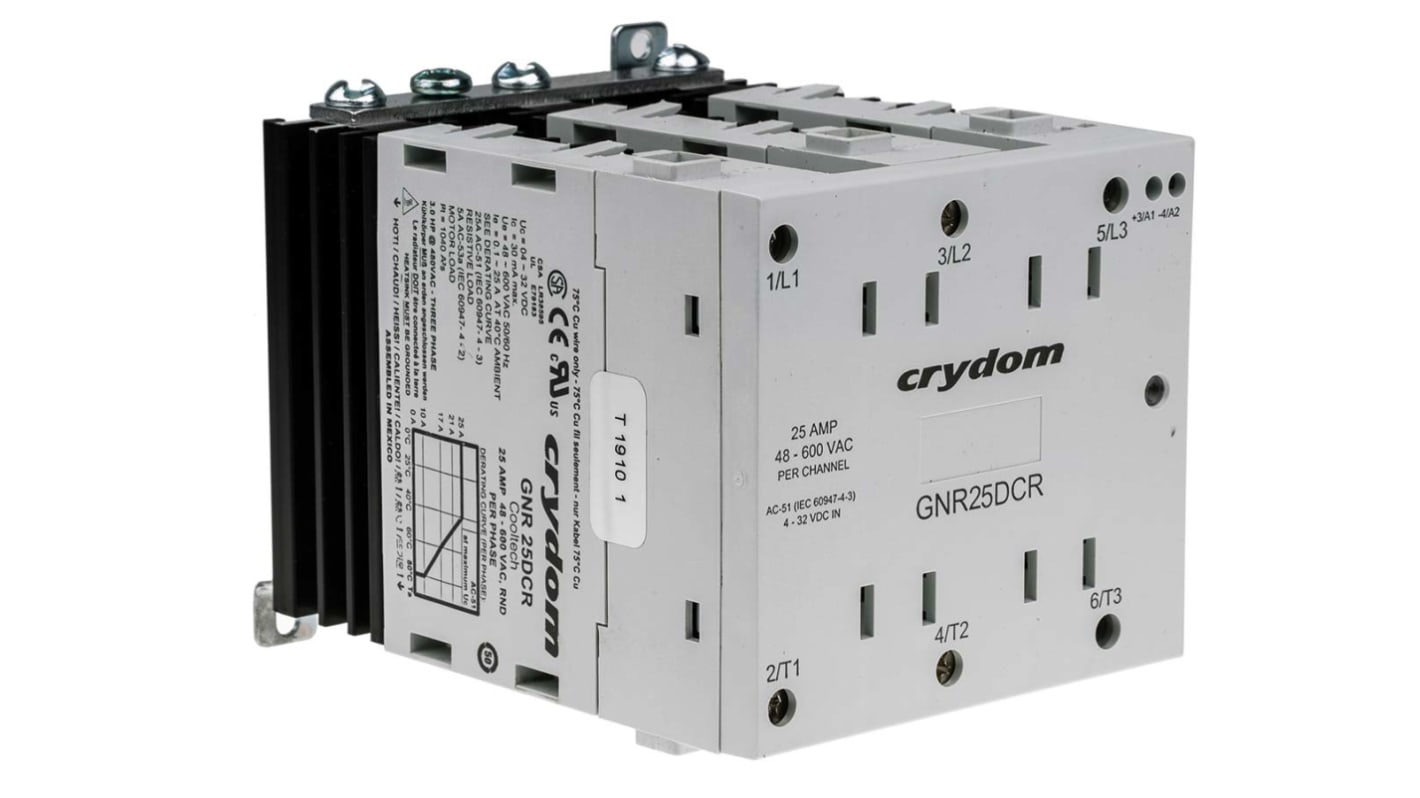

Sensata / Crydom GNR Series Solid State Relay, 25 A rms Load, Panel Mount, 600 V rms Load, 32 V dc Control
- RS Stock No.:
- 145-0553
- Mfr. Part No.:
- GNR25DCR
- Brand:
- Sensata / Crydom
7 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£317.39
(exc. VAT)
£380.87
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £317.39 |
| 5 - 9 | £301.52 |
| 10 - 24 | £285.65 |
| 25 - 49 | £269.78 |
| 50 + | £253.91 |
- RS Stock No.:
- 145-0553
- Mfr. Part No.:
- GNR25DCR
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Crydom GNR 90mm Series Solid State Relays
Crydom GNR 90 mm series robust and versatile general purpose AC and DC panel mount solid state relays. These powerful single phase SSRs have superior thermal performance thanks to the use of DBC technology. The GN series solid state relays feature anti-rotation barriers, flexible control voltage options, LED input status indicator, overvoltage protection (on all AC output relays), and a wide range of power ratings.
Features and Benefits
Direct Bond Copper (DBC) Substrate
LED input status indicator
UL 508 Endurance rating for enhanced reliability
UL/CSA Approved, CE Compliant
Built-in overvoltage protection
DIN Rail or Panel Mount
Zero voltage or instantaneous turn-on output
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 25 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 600 V rms |
| Minimum Load Voltage | 48Vrms |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 4 V dc |
| Switching Type | Instantaneous |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 0.1 A rms |
| Number of Poles | 3 |
| Terminal Type | Screw |
| Relay Type | Solid State Relay |
| Load Voltage Range | 48 → 600Vrms |
| Series | GNR |
| Maximum Turn On Time | 1/2 cycles |
| Dimensions | 90 x 123.4 x 97mm |
| Standards Met | CE, CSA, UL |
| Special Features | Built-In Overvoltage Protection, Direct Bond Copper Substrate, LED Input Status Indicator |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -20 → +80°C |
| Length | 90mm |
| Off State Leakage Current | 0.25mArms |
| Depth | 123.4mm |
| Minimum Operating Temperature | -20°C |
| Height | 97mm |
| Capacitance | 8pF |
