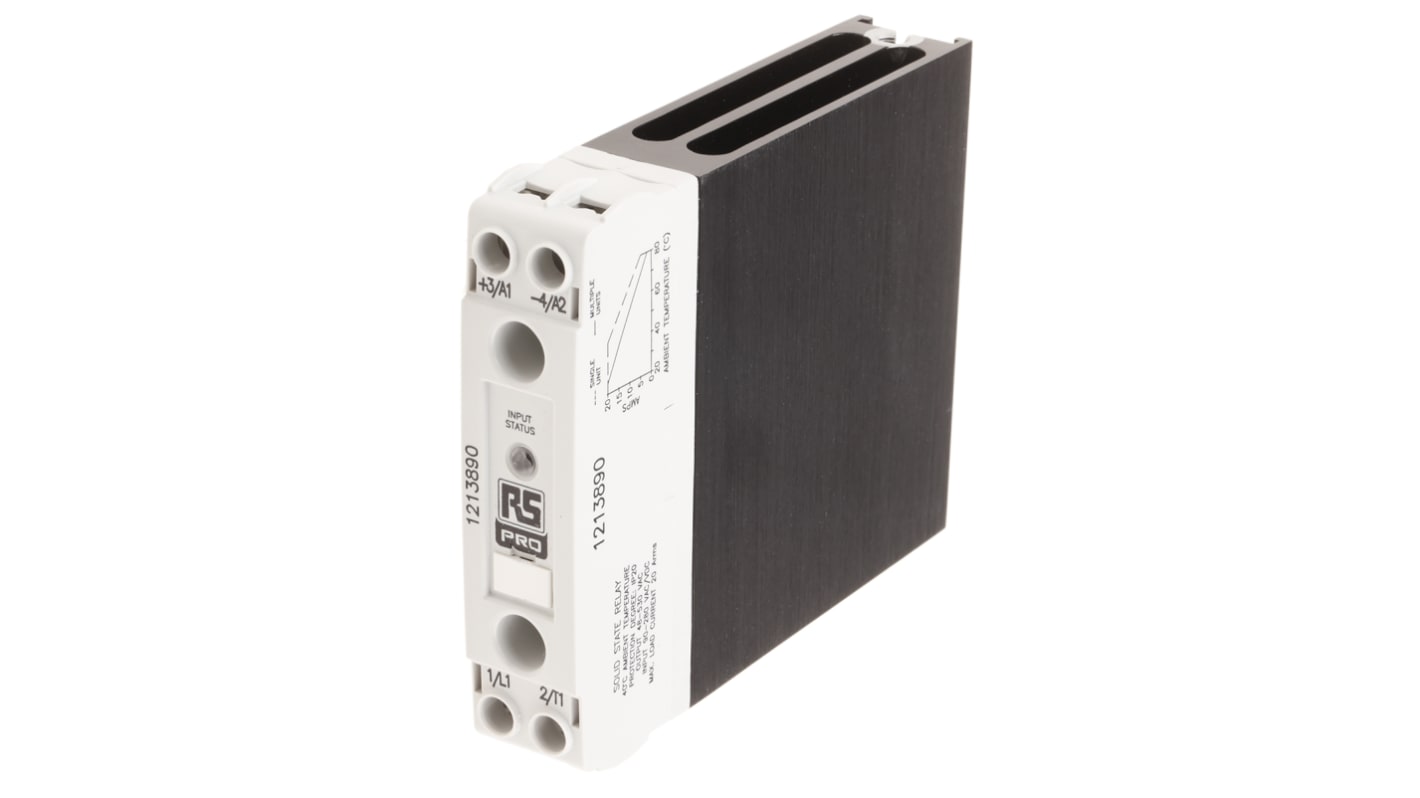

RS PRO Solid State Relay, 20 A Load, DIN Rail Mount, 530 V rms Load, 280 V ac Control
- RS Stock No.:
- 121-3890
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 121-3890
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 20 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 530 V rms | |
| Minimum Load Voltage | 48Vrms | |
| Minimum Control Voltage | 90 V ac | |
| Maximum Control Voltage | 280 V ac | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 90 → 280 V ac | |
| Terminal Type | Screw | |
| Contact Configuration | SP | |
| Relay Type | Solid State Relay | |
| Load Voltage Range | 48 → 530Vrms | |
| Dimensions | 93.2 x 22.5 x 116.5mm | |
| Depth | 116.5mm | |
| Off State Leakage Current | 1mA rms | |
| Maximum Operating Temperature | +60°C | |
| Length | 22.5mm | |
| Capacitance | 8pF | |
| Height | 93.2mm | |
| Minimum Operating Temperature | -20°C | |
| Standards Met | RoHS Compliant | |
| Special Features | LED Indicator | |
