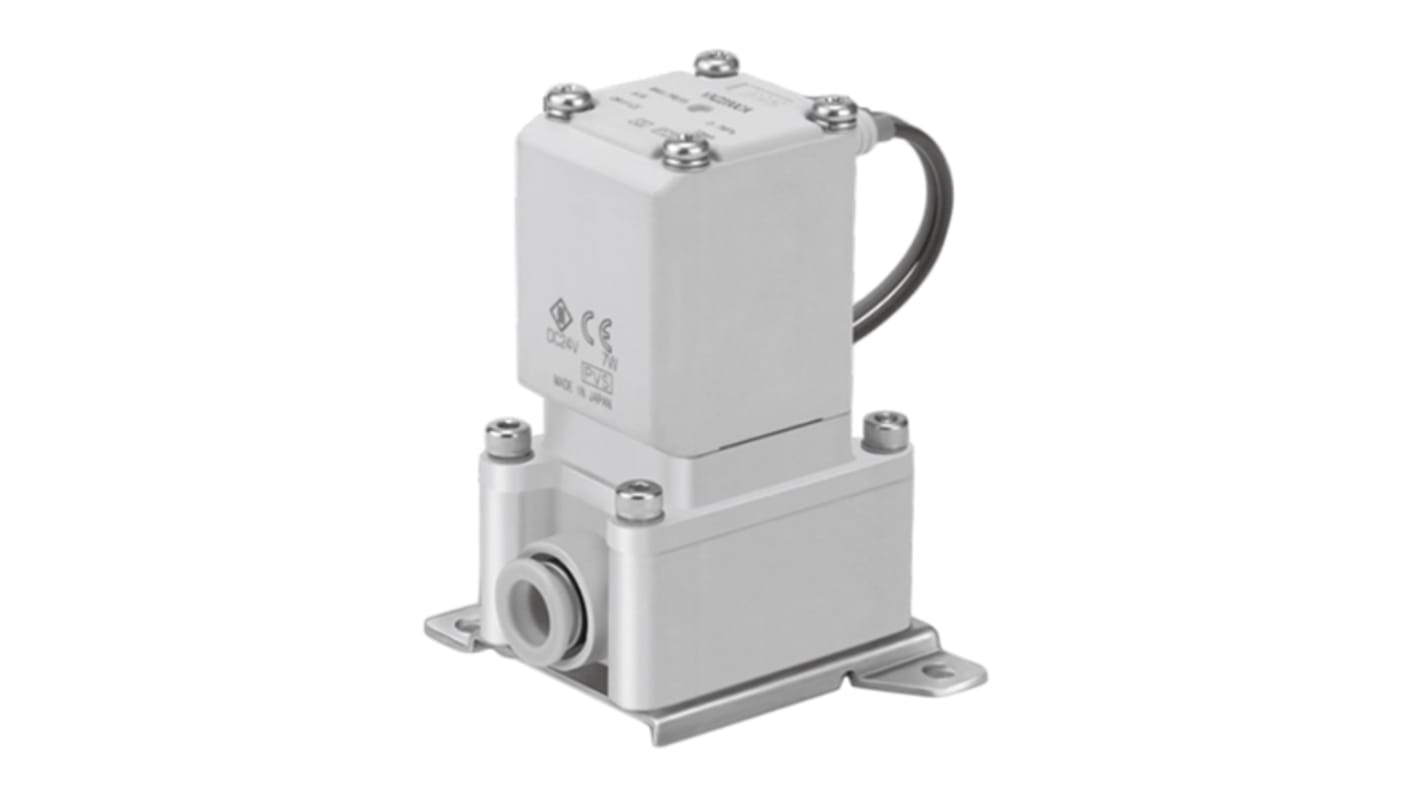

SMC Solenoid Valve VXZ230CG, 2 port , NC, 24 V dc, 10mm

  • RS Stock No. 893-8401
  • Mfr. Part No. VXZ230CG
  • Brand SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

VXZ2-A Two Port Pilot Operated Solenoid Valve

Pilot operated solenoid valve range from SMC’s VXZ series suitable for water, low pressure and vacuum applications. Redesigned by SMC to be 27% lighter and 4% smaller than the current model the VXZ is ideally suited lightweight and compact machinery where space is limited. The VXZ is suitable for use in a variety of applications including cooling systems, segmentation of pneumatic lines and exhaust valve in vacuum lines. Available in piping sizes from 1/4” to 1” and 10 and 12mm one touch fittings

Improved off response time
Low Noise, Reduce impact noise when operating
More compact design, 4% smaller than existing version
Brass or stainless steel body
One touch fitting variants have a resin body
Improved armature durability

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 2
Operation Pilot
Connection 10 mm One Touch Fitting
Connection Size 10mm
Default Valve Position NC
Suitable Applications Air
Type 2/2
Orifice Diameter 10mm
Body Material Resin
Maximum Working Pressure 0.6 Mpa
Operating Temperature Range -20 → +60 °C
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Series VXZ
Connection Gender Female
Thread Standard or Connection Type Push In
Available to back order for despatch 28/08/2020
Price Each
£ 49.44
(exc. VAT)
£ 59.33
(inc. VAT)
Units
Per unit
1 - 4
£49.44
5 - 9
£46.53
10 +
£44.59
