- RS Stock No.:
- 307-0260
- Mfr. Part No.:
- 134092
- Brand:
- Burkert
10 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price Each
£64.40
(exc. VAT)
£77.28
(inc. VAT)
Units | Per unit |
1 - 4 | £64.40 |
5 + | £62.47 |
- RS Stock No.:
- 307-0260
- Mfr. Part No.:
- 134092
- Brand:
- Burkert
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

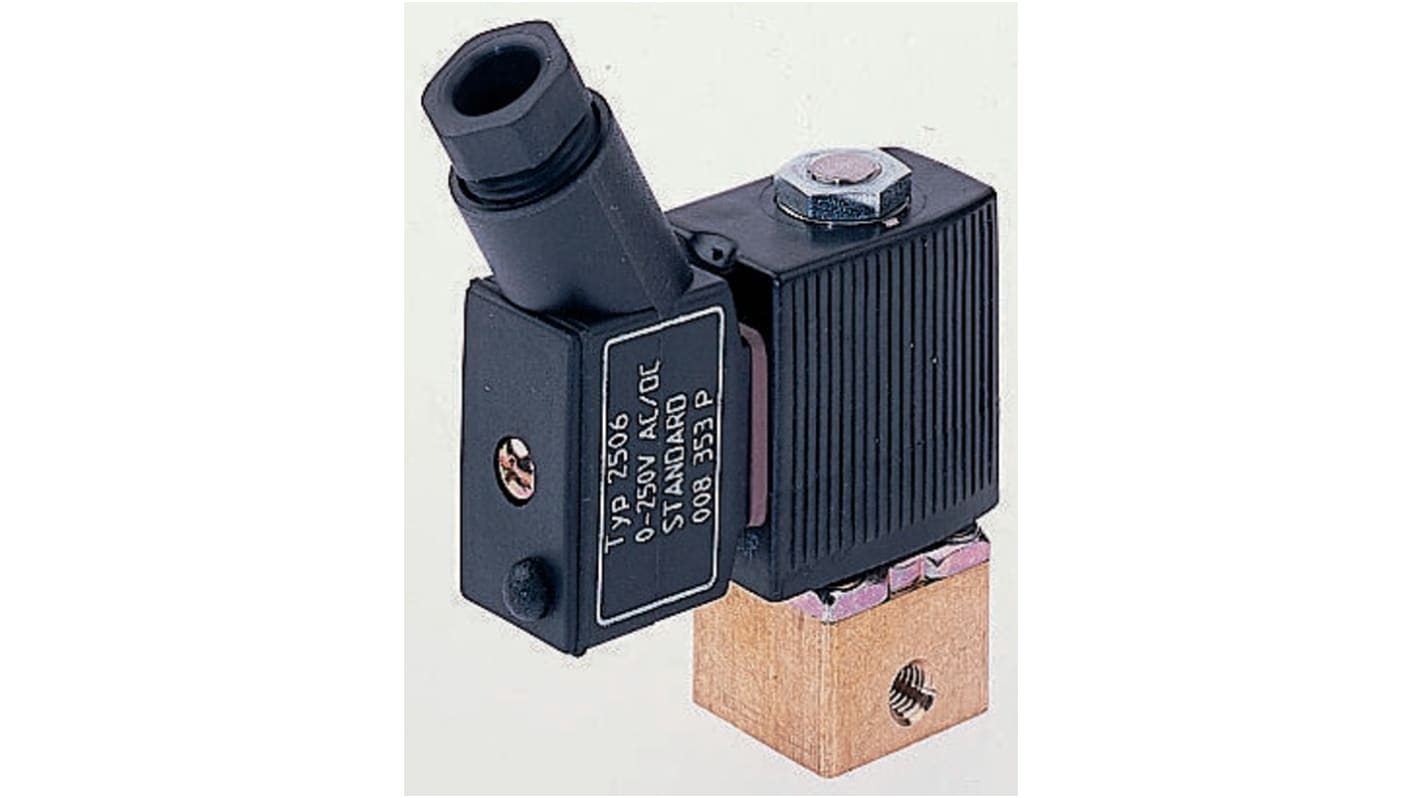

2 // 2 NF direct control, miniature solenoid valves, series 6011
Range of miniature, modular 2//2 solenoid valvesDirect control NF for neutral liquids up to +100°C.
G1/8" threaded body connection.
Able to change the solenoid without removing the valve.
The solenoid can be positioned freely or locked in 4 positions at 90° intervals.
High-quality, FPM sealing materials included as standard (Viton).
DIN 43650C Connector
Brass body.
G1/8" threaded body connection.
Able to change the solenoid without removing the valve.
The solenoid can be positioned freely or locked in 4 positions at 90° intervals.
High-quality, FPM sealing materials included as standard (Viton).
DIN 43650C Connector
Brass body.
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 V ac |
Number of Ports | 2 |
Connection Size | 1/8in |
Connection | 1/8 in G Female |
Operation | Direct |
Default Valve Position | NC |
Suitable Applications | Liquid, Neutral Gas, Technical Vacuum |
Type | 2/2 |
Orifice Diameter | 1.6mm |
Series | 6011 |
Body Material | Brass |
Maximum Working Pressure | 12 bar |
Operating Temperature Range | Maximum of +55 °C |
Connection Gender | Female |
Maximum Operating Temperature | +55°C |
Thread Standard or Connection Type | G |
Maximum Opening Time | 10ms |
Maximum Closing Time | 15ms |
Flow Factor Kv | 0.06m³/h |
