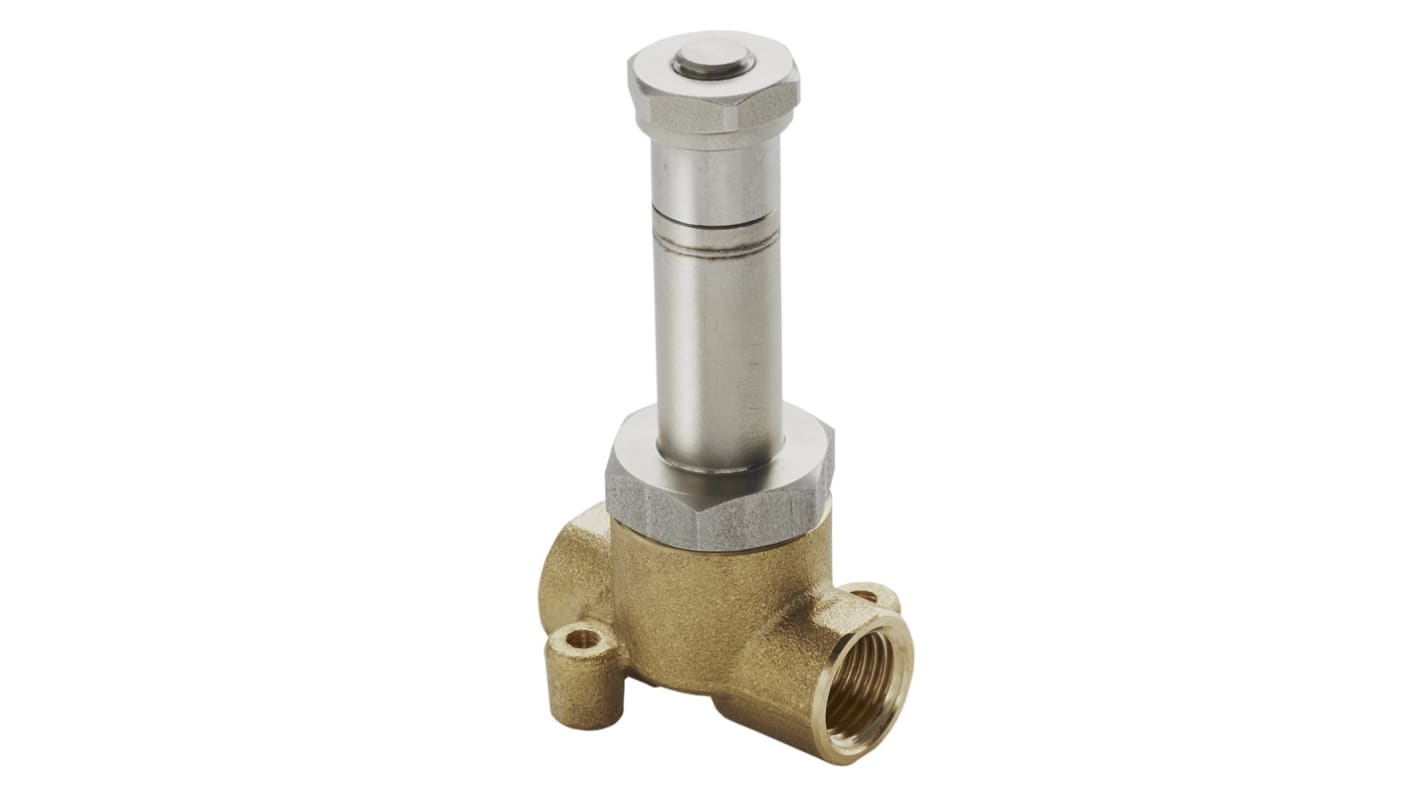

RS PRO Solenoid Valve, 2 port(s) , NC, 1/4in
- RS Stock No.:
- 176-2055
- Brand:
- RS PRO
9 In stock - FREE next working day delivery available
Added
Price Each
£59.73
(exc. VAT)
£71.68
(inc. VAT)
| Units | Per unit |
| 1 + | £59.73 |
- RS Stock No.:
- 176-2055
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
RS Pro direct acting 2/2 solenoid valves. Normally closed. Solenoids available separately.
- Size: 1/4"
- Body: Brass
- Seals: NBR, FKM variants available
- Core: Stainless steel
- Springs: Stainless steel
- Maximum allowable pressure: 40 bar
- Operating temperature: - 10 °C to + 80 °C
- Size: 1/4"
- Body: Brass
- Seals: NBR, FKM variants available
- Core: Stainless steel
- Springs: Stainless steel
- Maximum allowable pressure: 40 bar
- Operating temperature: - 10 °C to + 80 °C
Specifications
Attribute | Value |
|---|---|
| Number of Ports | 2 |
| Connection Size | 1/4in |
| Connection | 1/4 in G Female |
| Operation | Solenoid |
| Default Valve Position | NC |
| Type | 2/2 |
| Orifice Diameter | 3mm |
| Body Material | Brass |
| Maximum Working Pressure | 40 bar |
| Operating Temperature Range | -10 → +140 °C |
| Minimum Operating Temperature | -10°C |
| Thread Standard or Connection Type | G |
| Connection Gender | Female |
| Maximum Operating Temperature | +140°C |
| Flow Factor Kv | 0.21m³/h |
