RS PRO Solenoid Valve, 2 port(s) , NO, 220 V ac
- RS Stock No.:
- 144-0810
- Brand:
- RS PRO
Available to back order for despatch 17/05/2024
Added
Price Each
£135.82
(exc. VAT)
£162.98
(inc. VAT)
| Units | Per unit |
| 1 + | £135.82 |
- RS Stock No.:
- 144-0810
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

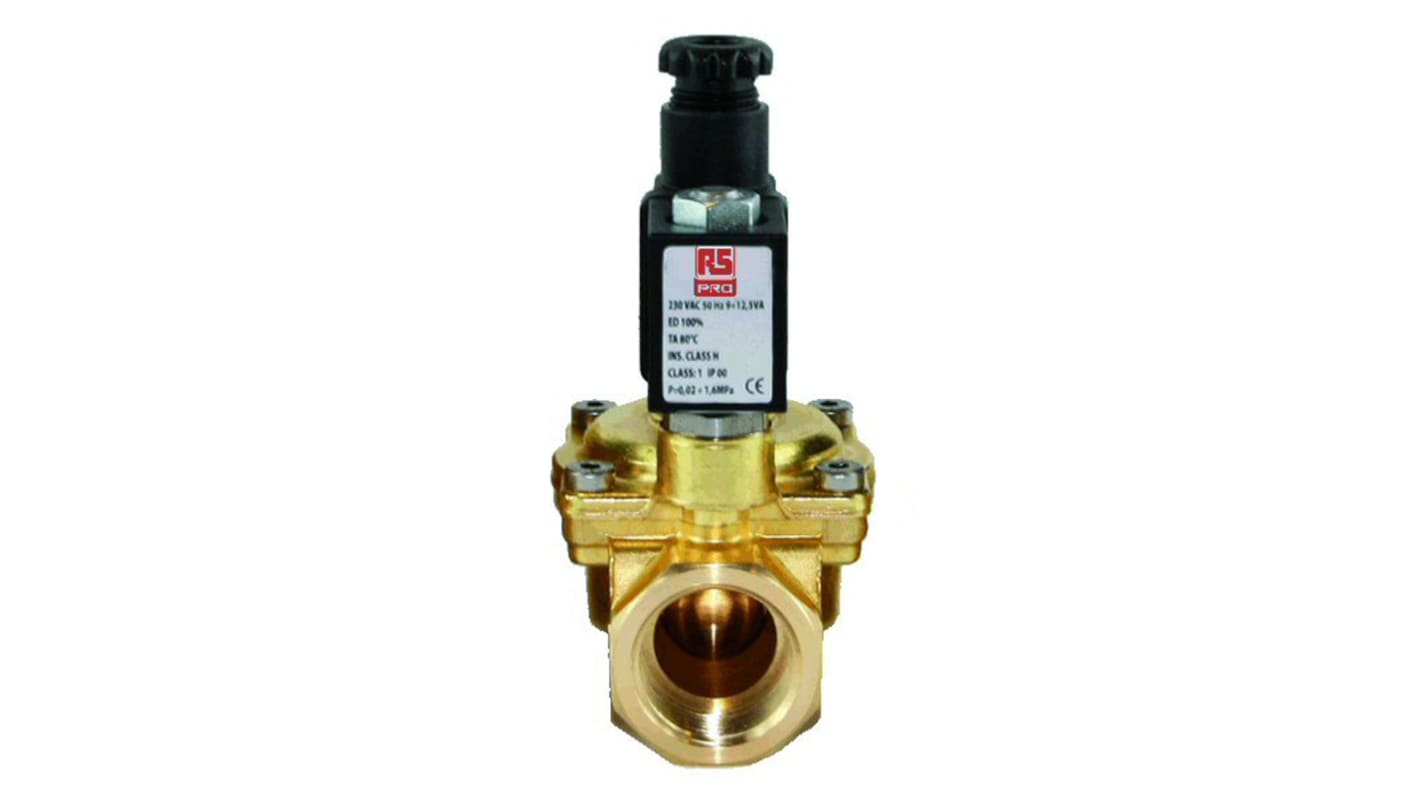

RS Pro Industrial Solenoid Valves
The RS Pro series of solenoid valves are a range of 2 way valves which are pilot operated. They can be used for liquid or gas and range in size from 3/8 inch to 2 inch.
Features and Benefits
• Made from forged brass
• Pilot operated
• Choice of 230 V ac or 24 V dc operation
• 2 port, normally open (NO) and normally closed (NC)
• Liquid or gas use
• Full range of sizes from 3/8 in to 2 in
Product Application Information
Ideal for fluid control uses in a wide range of industrial and commercial applications such as;
Autoclaves
Cooling plant and equipment
Watering plant
Fire extinguishing systems
Hygienic and sanitary
Water jet machinery
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 220 V ac |
| Number of Ports | 2 |
| Connection | G 3/8 |
| Operation | Pilot |
| Default Valve Position | NO |
| Suitable Applications | Gas, Liquid |
| Series | SOL |
| Body Material | Brass |
| Maximum Working Pressure | 15 bar |
| Operating Temperature Range | -20 → +90 °C |
| Thread Standard or Connection Type | G |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -20°C |
| Flow Factor Kv | 1.7m³/h |
