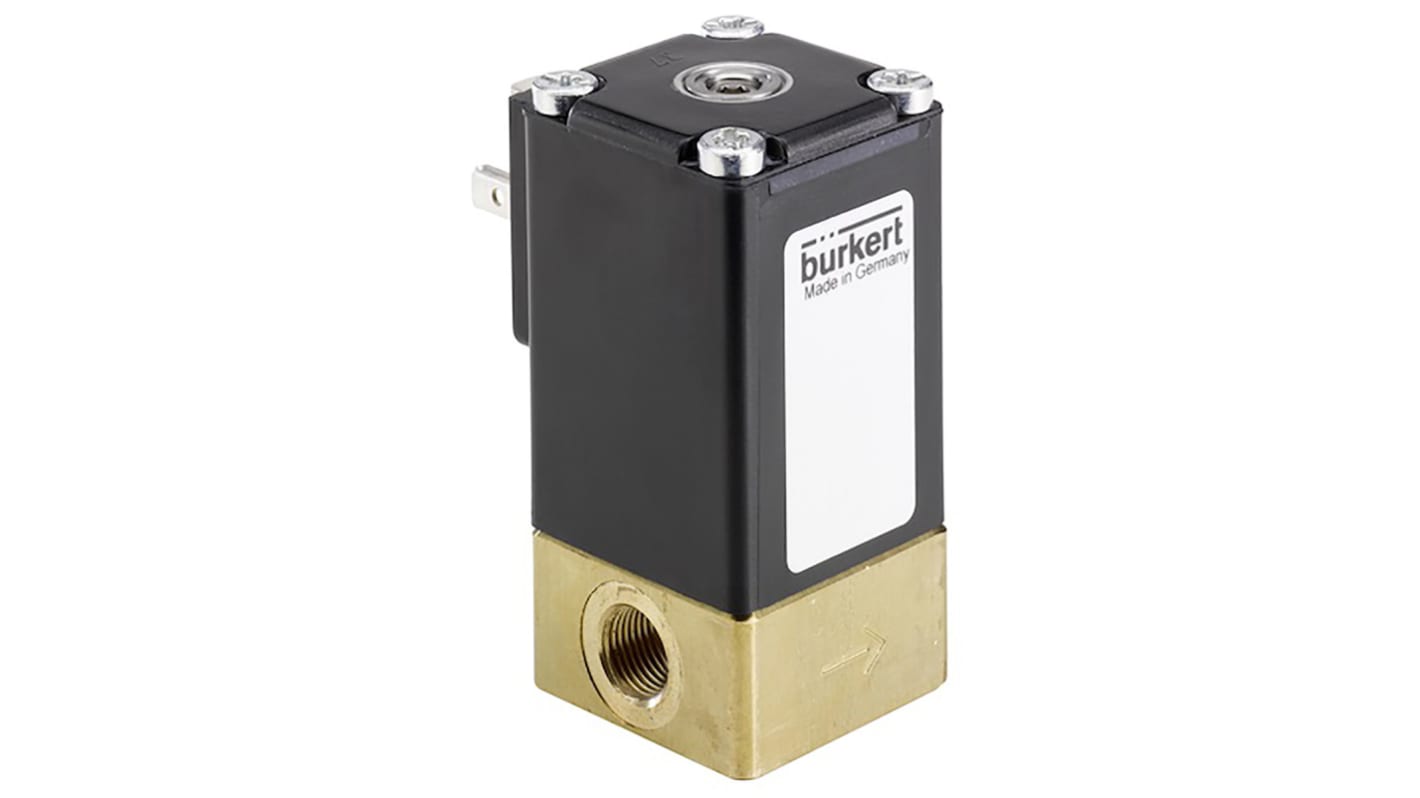

Burkert Proportional Solenoid Valve 239081, 2 port , NC, 24 V dc, 1/4in

  • RS Stock No. 125-8503
  • Mfr. Part No. 239081
  • Brand Burkert
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

2/2 Proportional Flow Valve - 2873 Series

Burkert proportional solenoid valves provide continuously adjustable and smooth control over the flow of fluid passing through them. Unlike conventional solenoid and process valves which offer only On or off control, Burkert 2873 series process valves use PWM (pulse width modulation) to give you the ability to adjust the flow from 0 to 100 percent. Design features such as the frictionless installation of the valve plunger, for exceptionally accurate adjustment and the tight sealing elastomeric seat make this the ideal valve for demanding and high accuracy control.

Features and Benefits

• Direct acting operation
• Available in either brass or stainless steel
• Excellent response time
• Globe valve operating principle
• IP65
• Plunger valve actuator
• <20 ms response time
• 9 W power consumption
• 1200Hz PWM frequency
• 100% continuously rated duty cycle
• Repeatability of less than 0.5% of full scale
• Less than 5% hysteresis

Applications

PWM solenoid control valves are suitable for applications which require more control over the flow of fluid than the simple on/off offered by standard solenoid valves.

Two-way Valves and Control Modules

Valves and control modules designed specifically to operate together, provide a valve opening which is proportional to the input signal and allows this to be correlated to the respective operating conditions.

Two-way Proportional Flow Valves & Control Modules

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Ports 2
Operation Direct
Connection 1/4 in G Female
Connection Size 1/4in
Default Valve Position NC
Suitable Applications Liquid, Neutral Gas
Type 2/2
Orifice Diameter 3mm
Body Material Brass
Maximum Working Pressure 3.5 bar
Maximum Operating Temperature +55°C
Thread Standard or Connection Type G
Flow Factor Kv 0.22m³/h
Connection Gender Female
Maximum Opening Time <20ms
Series 2873
3 In stock - FREE next working day delivery available
Price Each
£ 140.00
(exc. VAT)
£ 168.00
(inc. VAT)
Units
Per unit
1 +
£140.00
