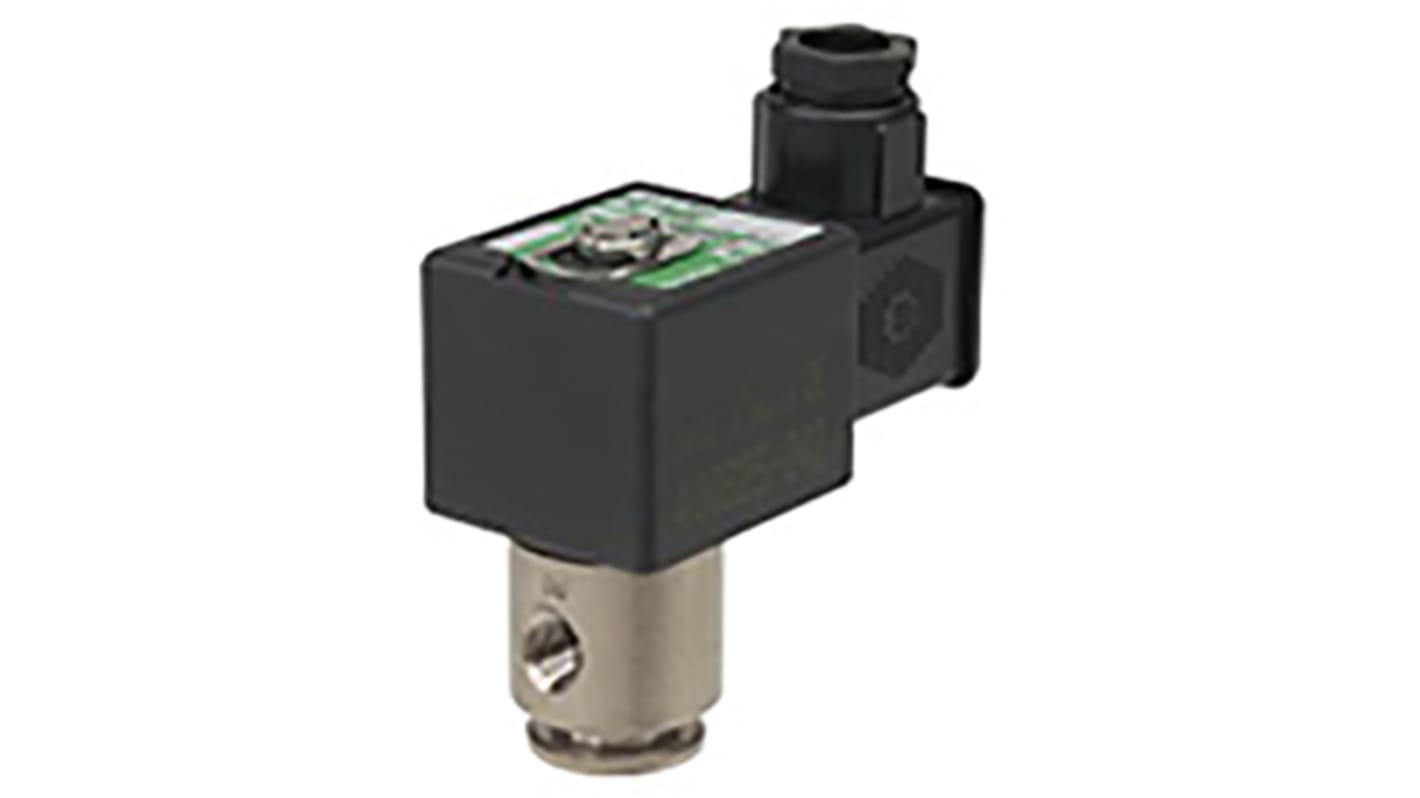

EMERSON – ASCO Solenoid Valve B264D009SCA2, 2 port(s) , NC, 24 V ac, 1/8in
- RS Stock No.:
- 488-453
- Mfr. Part No.:
- B264D009SCA2
- Brand:
- EMERSON – ASCO
Available to back order for despatch 29/05/2024
Added
Price Each
£260.58
(exc. VAT)
£312.70
(inc. VAT)
| Units | Per unit |
| 1 + | £260.58 |
- RS Stock No.:
- 488-453
- Mfr. Part No.:
- B264D009SCA2
- Brand:
- EMERSON – ASCO
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Two Way, Direct Operated, Liquid CO2 Valves
These valves are two-way, direct operated solenoid valves for liquid CO2. Suitable for high pressure applications and have zero bar minimum operating pressure, are normally closed with a threaded port connection
Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V ac |
| Number of Ports | 2 |
| Connection Size | 1/8in |
| Connection | 1/8 in NPT Female |
| Operation | Direct |
| Default Valve Position | NC |
| Suitable Applications | Liquid CO2 |
| Type | 2/2 |
| Orifice Diameter | 1.2mm |
| Series | 264 |
| Body Material | Nickel Plated Brass |
| Maximum Working Pressure | 70 bar |
| Operating Temperature Range | -20 → +50 °C |
| Connection Gender | Female |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
| Thread Standard or Connection Type | NPT |
| Flow Factor Kv | 0.05m³/h |
| Maximum Opening Time | 25ms |
| Maximum Closing Time | 25ms |
