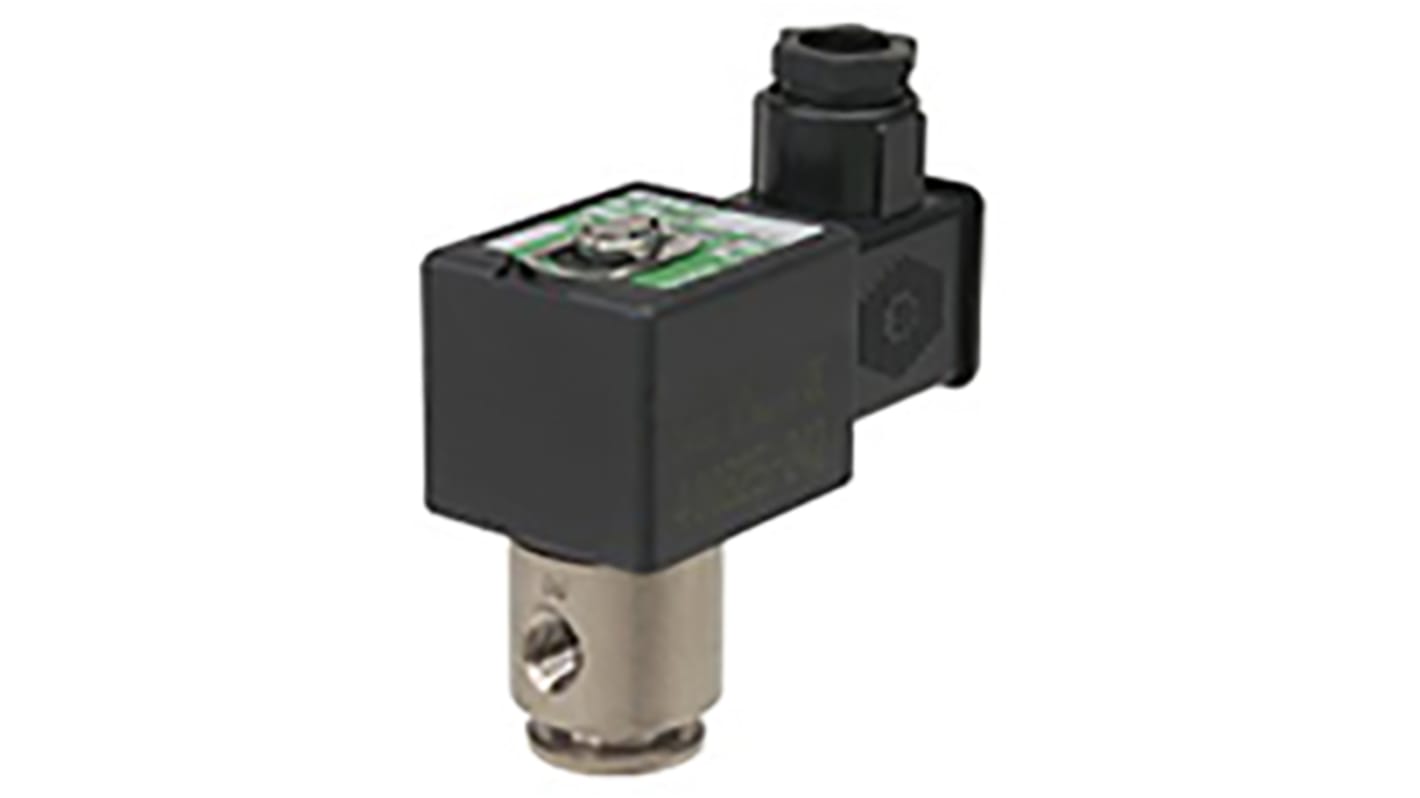

Asco Solenoid Valve B264D009SCA8, 2 port , NC, 230 V ac, 1/8in

  • RS Stock No. 488-312
  • Mfr. Part No. B264D009SCA8
  • Brand Asco
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Two Way, Direct Operated, Liquid CO2 Valves

These valves are two-way, direct operated solenoid valves for liquid CO2. Suitable for high pressure applications and have zero bar minimum operating pressure, are normally closed with a threaded port connection

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position

Specifications
Attribute Value
Supply Voltage 230 V ac
Number of Ports 2
Operation Direct
Connection 1/8 in NPT Female
Connection Size 1/8in
Default Valve Position NC
Suitable Applications Liquid CO2
Type 2/2
Orifice Diameter 1.2mm
Body Material Nickel Plated Brass
Maximum Working Pressure 70 bar
Operating Temperature Range -20 +50 °C
Minimum Operating Temperature -20°C
Maximum Operating Temperature +50°C
Connection Gender Female
Maximum Closing Time 25ms
Series 264
Thread Standard or Connection Type NPT
Maximum Opening Time 25ms
Flow Factor Kv 0.05m³/h
Available to back order for despatch when stock is available
Price Each
£ 214.99
(exc. VAT)
£ 257.99
(inc. VAT)
Units
Per unit
1 +
£214.99
