Burkert Solenoid Valve 021373, 3 port(s) , NO/NC, 110 V ac, 1/4in
- RS Stock No.:
- 440-751
- Mfr. Part No.:
- 021373
- Brand:
- Burkert
2 In stock - FREE next working day delivery available
Added
Price Each
£264.00
(exc. VAT)
£316.80
(inc. VAT)
| Units | Per unit |
| 1 + | £264.00 |
- RS Stock No.:
- 440-751
- Mfr. Part No.:
- 021373
- Brand:
- Burkert
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

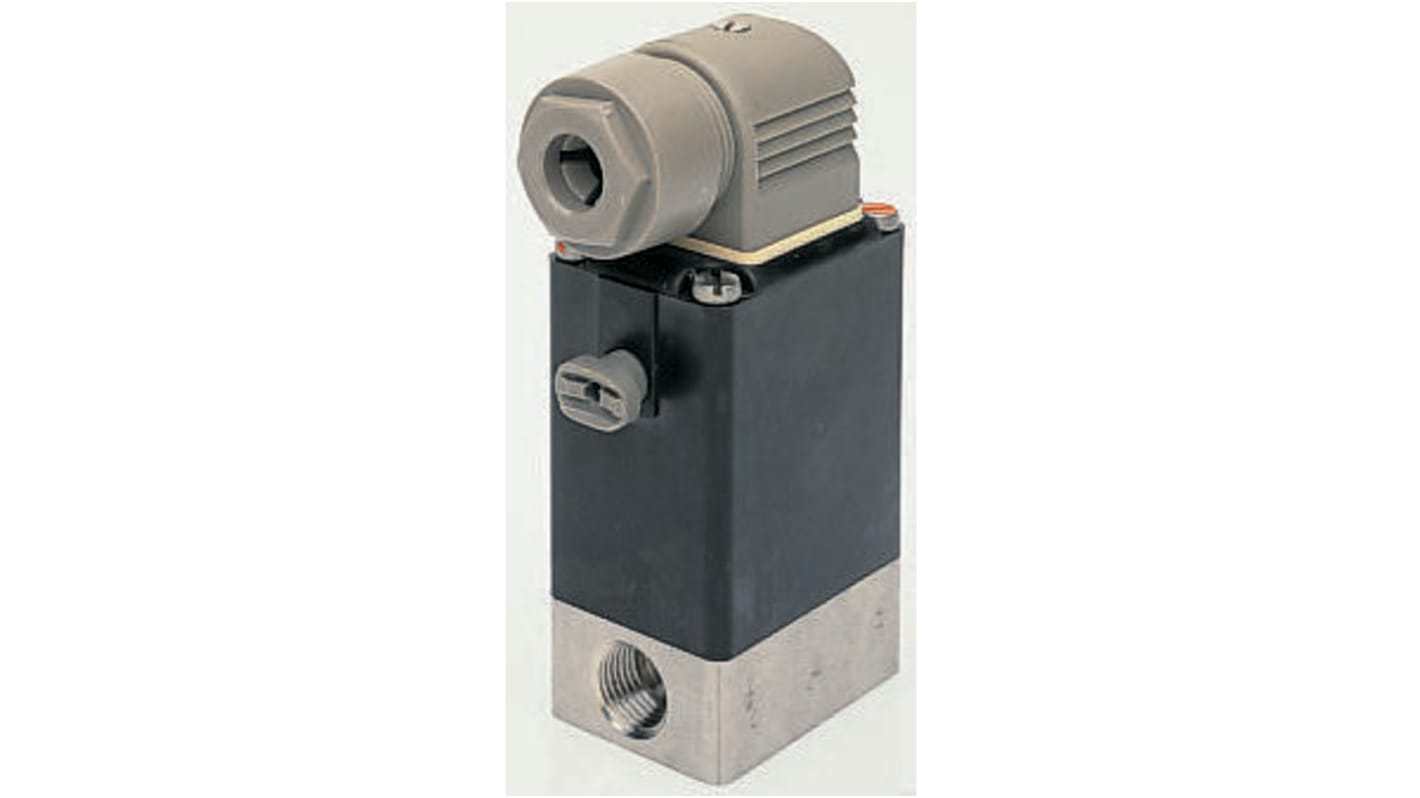

Stainless steel bodied, 3-way, Type 330
Solenoid valves with pivoted armatures which provide high pressure operation with aggressive gases and fluids.
BSP parallel ports compatible with RS stainless compression fittings
IP65 rated 3-pin DIN connector can be positioned through 360° in 90° increments
Zero head pressure capability
Lockable manual override
Fluid temperature range -30 to +90°C
May be mounted in any position
Power consumption 5VA/8W (Constant), 30VA (a.c. inrush)
IP65 rated 3-pin DIN connector can be positioned through 360° in 90° increments
Zero head pressure capability
Lockable manual override
Fluid temperature range -30 to +90°C
May be mounted in any position
Power consumption 5VA/8W (Constant), 30VA (a.c. inrush)
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 110 V ac |
| Number of Ports | 3 |
| Connection Size | 1/4in |
| Connection | 1/4 in G Female |
| Operation | Direct |
| Default Valve Position | NO/NC |
| Suitable Applications | Aggressive Gas, Aggressive Liquid |
| Type | 3/2 |
| Orifice Diameter | 3mm |
| Series | 0330 |
| Body Material | Stainless Steel |
| Maximum Working Pressure | 6 bar |
| Operating Temperature Range | -30 → +55 °C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +55°C |
| Thread Standard or Connection Type | G |
| Connection Gender | Female |
| Flow Factor Kv | 0.23m³/h |
