KL1-SS Solenoid Interlock Switch Power to Unlock 24 V ac/dc

  • RS Stock No. 826-3969
  • Mfr. Part No. 220301
  • Brand IDEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

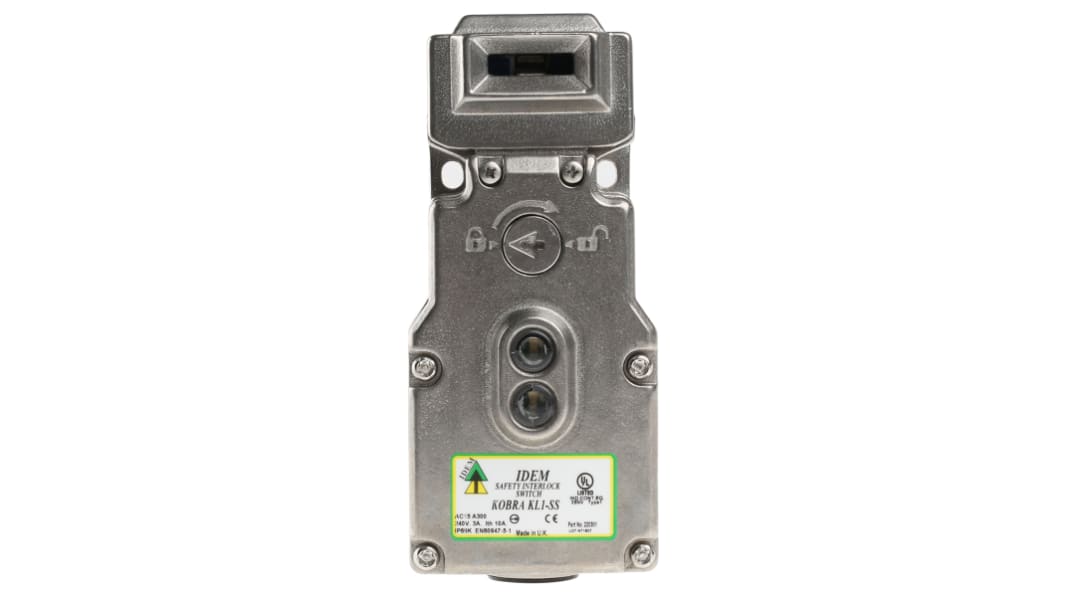

IDEM Solenoid Interlock Switch

The IDEM KL1-SS series guard locking safety interlock switch has a supply voltage rating of 24VAC/VDC. It has 2NC safety contacts and 1NO auxiliary contact. This switch fits the leading edge of sliding or hinged machine guards. It provides a locking mechanism to keep the guard closed until the hazard is removed. This switch is tongue operated with positively operated switching contacts and a strong tamper-resistant key mechanism. It provides robust position interlock detection for moving guards. This solenoid interlock switch can be used with safety timers to provide a delay before allowing the guard to open (for example machines that require a rundown). Depending on the risk assessment for the application, it can be used independently to provide positively operated contacts or used with any dual channel safety-monitoring relay.

Note
Not supplied with an actuator. Standard, flat, heavy-duty flexible and hygienic actuators are available separately. The flexible actuators are perfect for tight radius guards. The hygienic actuator is made from stainless steel with a mirror-polished finish.

Features and Benefits

Power to unlock
Stainless steel body and head
2 lock monitoring safety contacts for high function and diagnostic specification
2 emergency manual release points
Positive break contacts to IEC 60947-5-1
High functional safety to ISO 13849-1
Rotatable head
Connects to most of the safety relays to give up to PLe Cat.4
1 conduit entry points M20
LED 1 status of solenoid applied power
LED 2 status of guard lock
High holding force 1600N
4 actuator entry positions
40mm fixing centres

Applications

Food processing
Pharmaceutical industry
Packaging
Petrochemical industry

Certifications

IP67 rated
PLe Cat.4
EN1088
IEC 60947-5-1
EN60204-1
ISO 13849-1
EN62061
EN954-1
UL508.
CE certified
UL approved
TUV certified

Specifications
Attribute Value
Range RYANLOCK
Series KL1-SS
Power to Lock / Unlock Power to Unlock
Actuator Included No
Actuator Type Various Options
Conduit Entry M20
Length 143mm
Width 63mm
Depth 41.5mm
Supply Voltage 24 V ac/dc
Safety Contacts 2NC
Auxiliary Contacts 1NO
Housing Material 316 Stainless Steel
IP Rating IP67, IP69K
Dimensions 143 x 63 x 41.5 mm
3 In stock - FREE next working day delivery available
Price Each
£ 206.33
(exc. VAT)
£ 247.60
(inc. VAT)
Units
Per unit
1 +
£206.33
