XCS TE Solenoid Interlock Switch Power to Unlock 230 V ac/dc

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

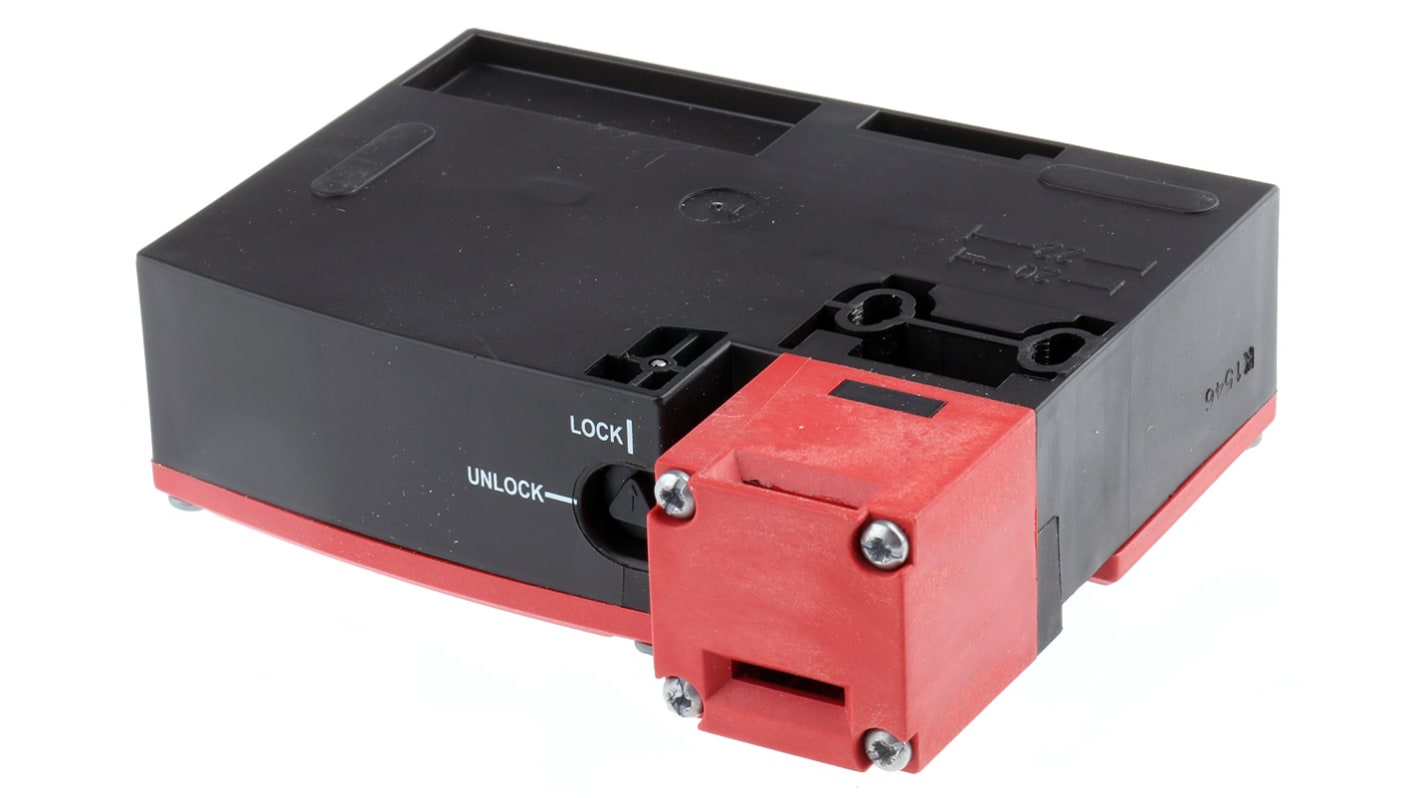

XCSTE Solenoid Interlock Switch

Suitable for interlocking small moveable guards (EN1088, EN60204, EN292)
2 positive opening contacts as standard, on guard opening
1 N/C positive internal control contact operated by the solenoid
Key operated lock to allow authorised override of solenoid
Solenoid continuously rated 10VA, voltage limits -20 / +10% (including ripple on d.c.)
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 10VA (Solenoid continuously rated)
15N minimum operating force for positive opening
IP67 rating

Note

Actuators must be purchased separately, see Accessories table.

//media.rs-online.com/t_line/L0198655-10.jpg
Specifications
Attribute Value
Range Preventa
Series XCS TE
Power to Lock / Unlock Power to Unlock
Conduit Entry PG11, 1/2 in
Length 94mm
Width 110mm
Depth 33mm
Supply Voltage 230 V ac/dc
Safety Contacts 2NC
Auxiliary Contacts NC
Housing Material Plastic
Dimensions 94 x 110 x 33 mm
IP Rating IP67
5 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s)
Price Each
£ 207.00
(exc. VAT)
£ 248.40
(inc. VAT)
Units
Per unit
1 +
£207.00
