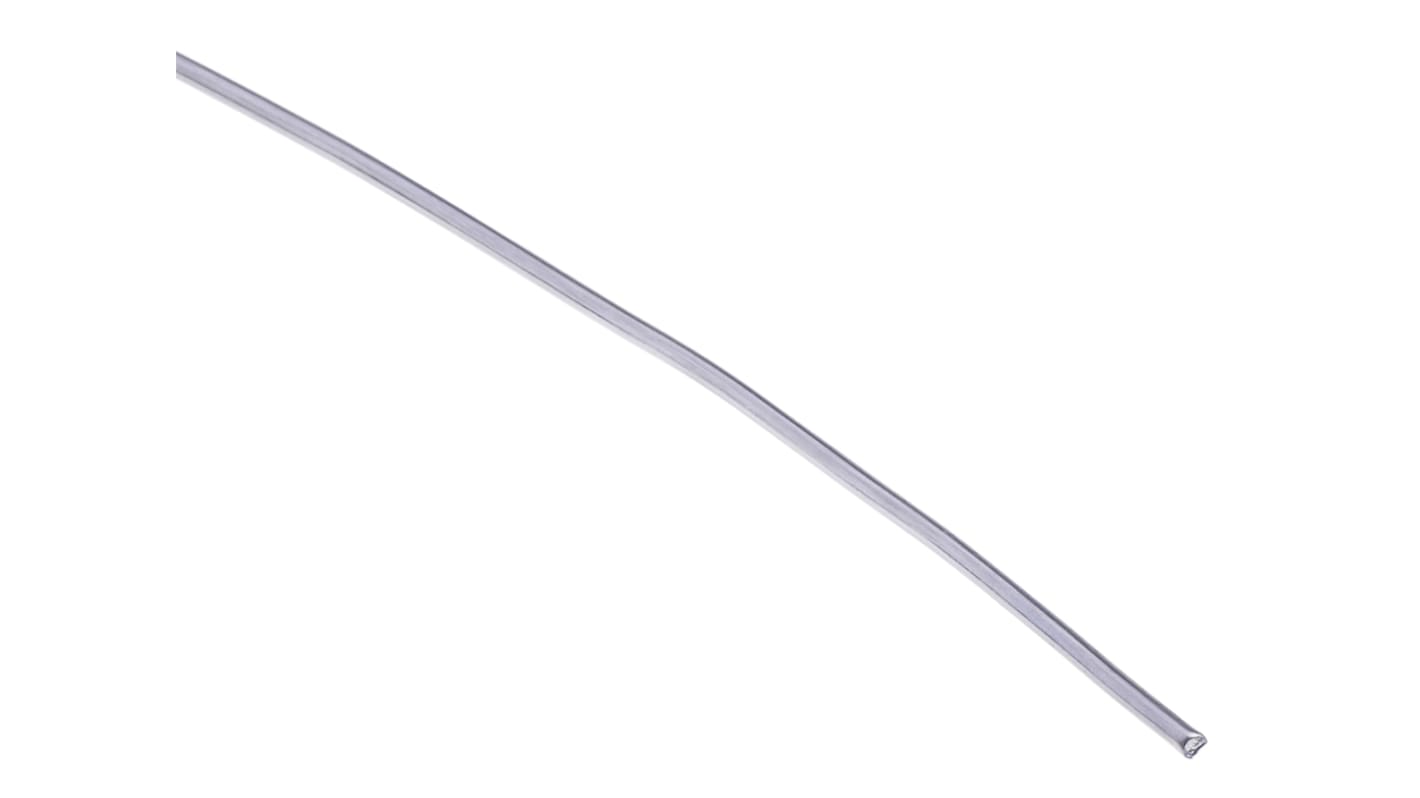

MBO 0.7mm Wire Lead solder, +183°C Melting Point

  • RS Stock No. 547-354
  • Mfr. Part No. SN60 PB CU2 7/10 - 3 CANAUX A11 - 500G
  • Brand MBO
Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): FR
Product Details

AUTOFIL A11 Sn60Pb38Cu activated solder wire

Activated No-Clean solder alloy with incorporated resinous flux.
Designed for industrial applications in the electronics and connector industries.
Excellent wetting on tin-plated substrates.
Generates minimal fumes and residue.
Chlorine content: 1.1 %
Class: J-STD-004 ROM1

Specifications
Attribute Value
Wire Diameter 0.7mm
Model Number SN60 PB CU2
Percent Lead 38%
Product Form Wire
Melting Point 183°C
Percent Tin 60%
Flux Type Rosin
Product Weight 500g
Flux Content Percent 2%
Percent Copper 2%
11 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Price 1 Reel of 500 Gram(s)
£ 24.87
(exc. VAT)
£ 29.84
(inc. VAT)
Reel(s)
Per Reel
Per unit*
1 - 9
£24.87
£0.05
10 - 19
£23.88
£0.048
20 - 49
£23.14
£0.046
50 +
£21.14
£0.042
*price indicative
