TE Connectivity Blue Solder Sleeve 4.06 → 7.62mm

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): MX
Product Details

Hi Spec Solder Sleeve

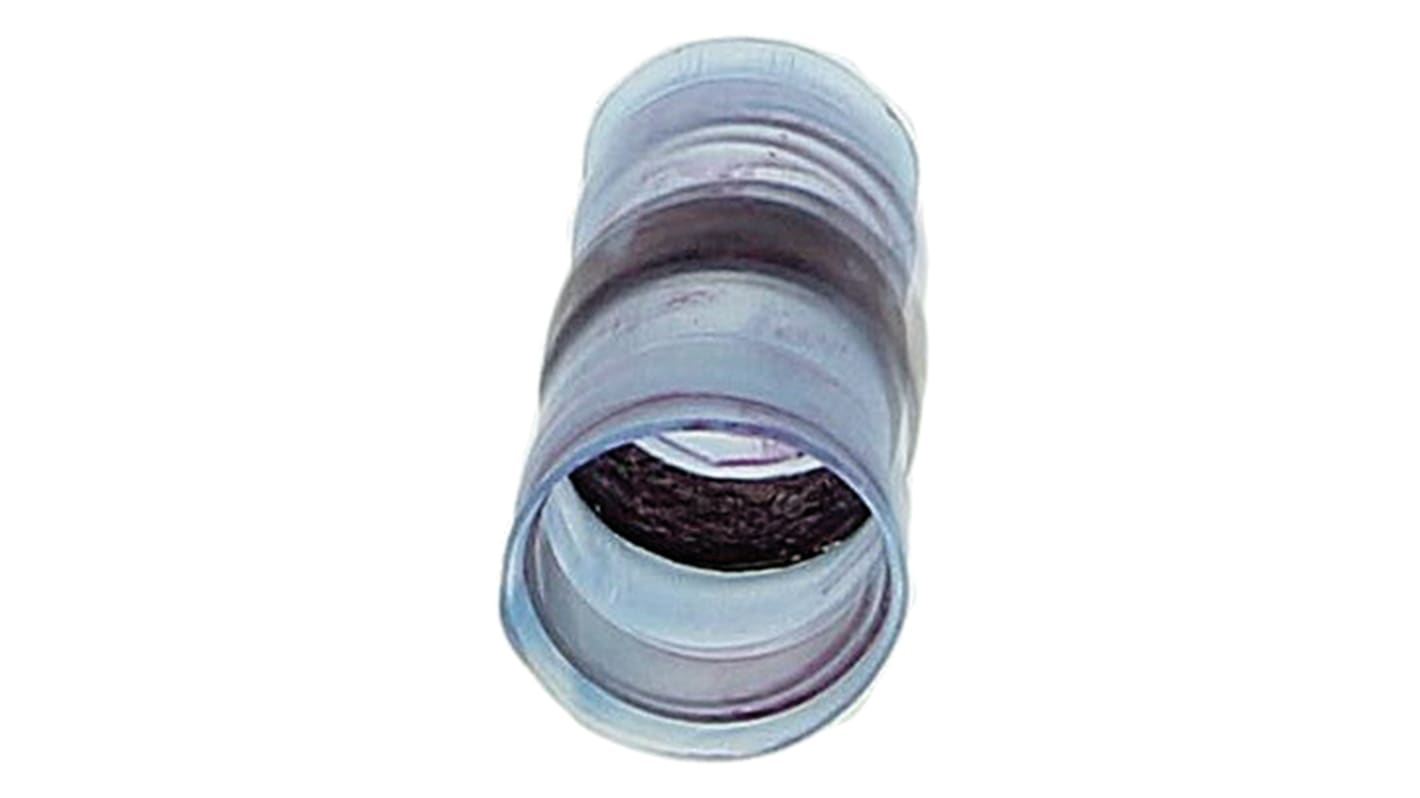

Solder sleeve shield connectors provide a fast, reliable method of grounding leads to cable shields. The solder sleeve assembly contains a precisely engineered preform of flux solder inside a transparent heatshrinkable insulation sleeve with sealing rings. This provides environmentally sealed electrical connection. These sleeves contain a temperature indicator which exhibits a distinct colour change when surfaces have reached wetting temperature, this aids quality control and inspection of connection.

Dimensions (mm)
Product Product Dimensions     Cable Dimensions
Manu. Part No. L max. A min. B min. D max. E min. G max. J± 0.5
D-100-00 17.25 2.8 3.15 3.15 1.4 2.7 7
D-101-00 17.0 4.55 5.00 5.00 2.5 5.0 7
D-103-00 20.5 7.11 7.62 7.62 4.06 7.11 7
//media.rs-online.com/t_line/L265271-01.gif
//media.rs-online.com/t_line/LE265271-01.gif
Specifications
Attribute Value
Minimum Cable Diameter 4.06mm
Maximum Cable Diameter 7.62mm
Sleeve Length 20.5mm
Material PVDF
Minimum Operating Temperature -55°C
Maximum Operating Temperature +150°C
Colour Blue
Available to back order for despatch 27/09/2019
Price 1 Box of 100
£ 156.44
(exc. VAT)
£ 187.73
(inc. VAT)
Box(es)
Per Box
Per unit*
1 - 14
£156.44
£1.564
15 - 49
£148.61
£1.486
50 +
£140.79
£1.408
*price indicative
