Product Details
D-142 Terminals

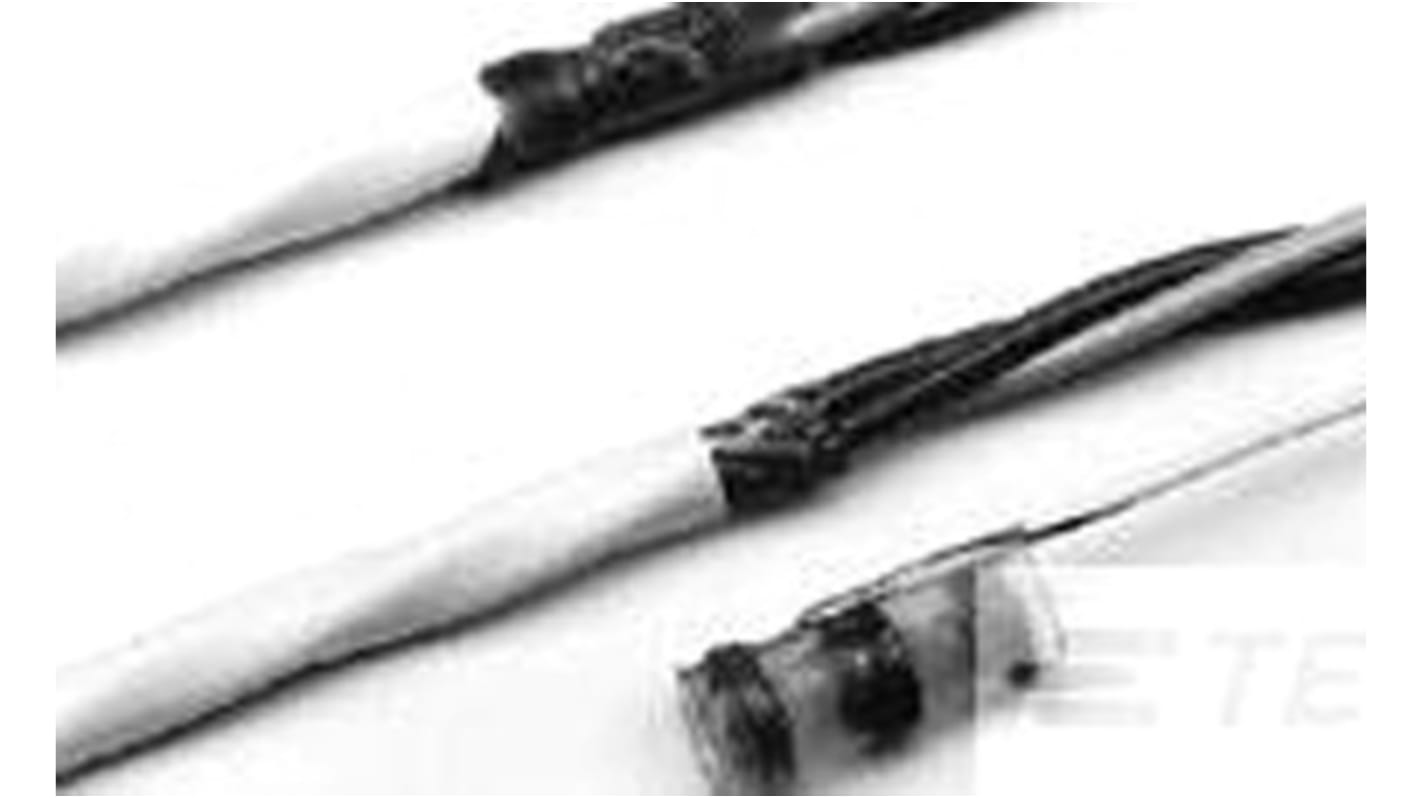

D-142 compact terminals allow earth tags to be created on screened cables and are compatible with many dielectric and insulating materials, even those that are heat-sensitive.
The solder connections are insulated, protected and highly resistant to mechanical stress.
The solder connections are insulated, protected and highly resistant to mechanical stress.
Features and Benefits
Easy-to-use, simply place the terminal and the wire together and heat them using a hot air gun.
Clear sleeve facilitates connection quality control
Clear sleeve facilitates connection quality control
Approvals
NAS-1745 (aeronautics) and MIL-STD-105 (military) approved, except D-142-65.
Specifications
Attribute | Value |
---|---|
Minimum Cable Diameter | 3.18mm |
Maximum Cable Diameter | 6.48mm |
Sleeve Length | 19.05mm |
Material | PVDF |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Colour | Natural |
Standards Met | ANSI J-STD-004, ANSI J-STD-006 |
Series | D-142 |
Shrink Temperature | 105°C |
