Phaesun Energy Generation Kit Photovoltaic Solar Panel

  • RS Stock No. 860-2913
  • Mfr. Part No. 600239
  • Brand Phaesun
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Energy Generation Kit Solar Up One

The Phaesun kit makes it possible to operate 12V consumers such as lamps, radios or small pond pumps without problems

Note

Battery NOT included

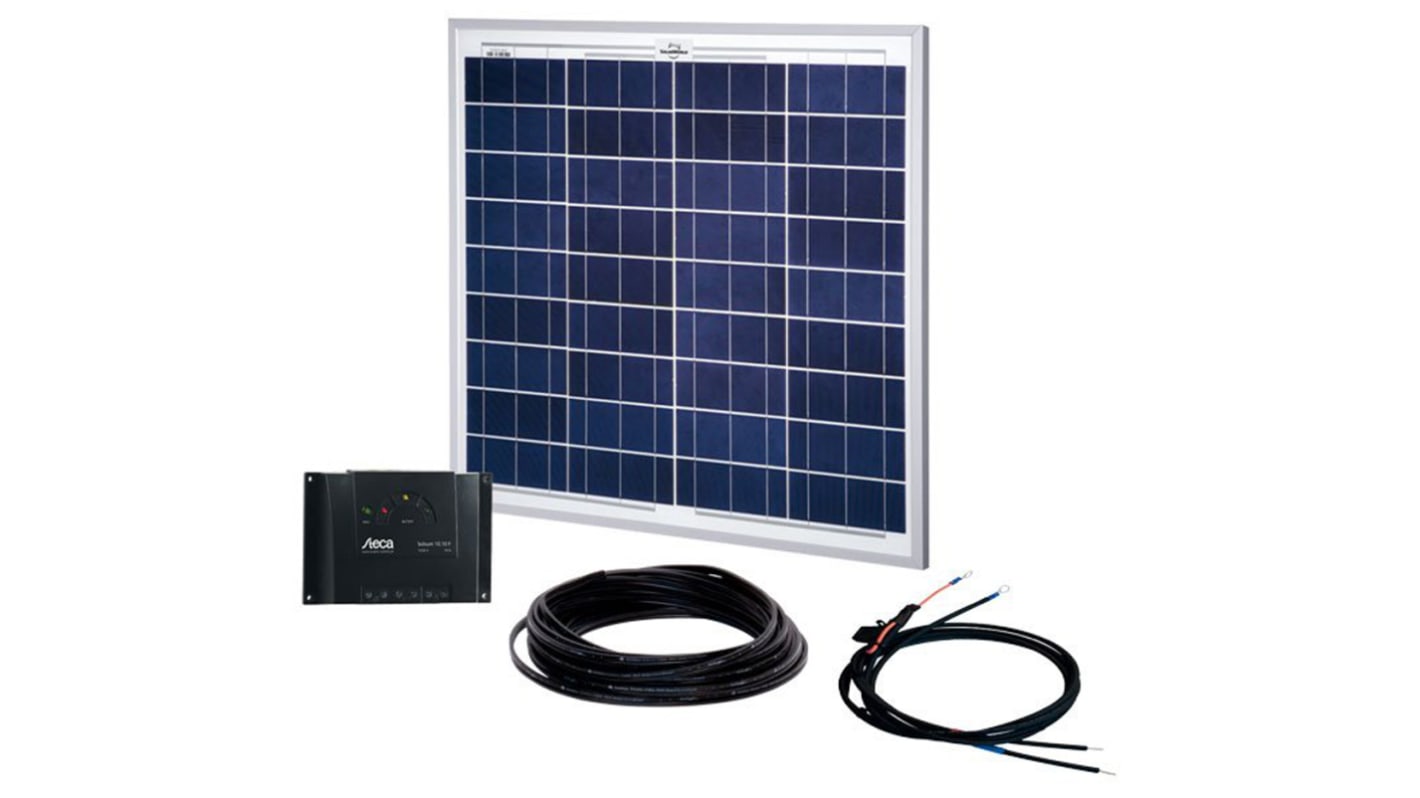

Supplied with

Solarmodule 50W / 12Vdc
Solar Charge Controller 6A / 12/24Vdc
Module cable
Module Installation Set
Battery cable with 15A fuse

Solar Panels and Chargers

Solar “photovoltaic” panels use the power of the sun to generate electricity and can be used in a variety of applications from calculators to homes. They are most effective, versatile and cost saving in many commercial and leisure applications for charging 12/24V batteries.
Solar panels provide power through batteries at off grid and isolated locations and are widely used in critical telecommunications and telemetry applications. Solar panels enable rapid installation of equipment at remote sites, either temporary or permanent, avoiding the costs and inconvenience of grid connection. They are designed for very low maintenance and longevity.

How Much power?

The daily power production of a solar panel can be calculated by multiplying the panel’s peak power rating by between 0.5 and 6 depending on the time of year, angle and location. For example; an 80Watt solar panel produces a peak current of 4.55A.

Solar Installation

Solar panels are usually installed at a 55-65° angle for optimal wintertime performance. For a year round power supply solar panels can be combined with Wind chargers.
Solar panels can be connected in parallel to increase power and in series to increase voltage.
To complete the system deep cycle batteries, a voltage regulator and electrical cables are required to get up and running. A range of convenient mounting kits are available for pole or wall mounting.

Specifications
Attribute Value
Type Energy Generation Kit
7 In stock for FREE next working day delivery
Price Each
£ 163.45
(exc. VAT)
£ 196.14
(inc. VAT)
Units
Per unit
1 +
£163.45
