Martindale RSCP501 Socket Tester 13A 200 → 250V ac CAT II 300 V, Model CP-501 RS Calibration

  • RS Stock No. 716-1073
  • Mfr. Part No. RSCP501
  • Brand Martindale
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): PH
Product Details

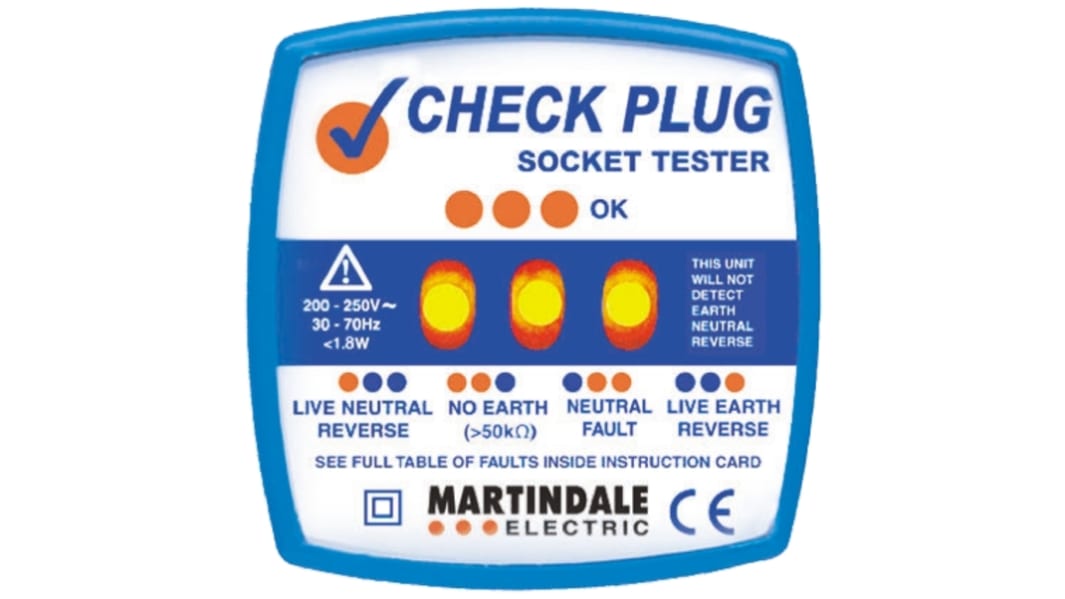

Classic Check Plug Martindale CP501

A fast and easy way to test 13A sockets to BS 1363. When plugged into a live socket, three neons lit up indicate correct wiring, whilst one or more neons failing to light indicate wiring errors.

Ideal for testing 13A sockets
Three bright LED's show wiring status
Flame retardant ABS casing

Martindale Socket Testers

The Martindale socket tester is a state-of-the-art device with a current rating of 13AC and detecting voltage ranging between 200VACand 250VAC. It is a fast and easy way to test sockets. When plugged into a live socket, three neons light up indicating correct wiring, whilst one or more neon failing to light indicates wiring errors.

Caution:
This product is not suitable for testing sockets that are supplied via an isolating transformer.

Features and Benefits

• Type G-British 3-pin plug
• Three bright LED's show wiring status
• Frequency range: 30Hz to 70Hz
• Power supply from mains
• Open earth if earth resistance > 50kohm nominal at 230VAC
• Open neutral if neutral resistance > 50kohm nominal at 230VAC
• Flame retardant ABS casing
• Operating temperature ranges between -10°C and 40°C

Applications


Electrical systems
• Commercial
• Residential

Certifications


CE
• BS1363
• CAT II 300V

Specifications
Attribute Value
Current Rating 13A
Voltage 200 → 250V ac
Calibrated RSCAL
Number of Pins 3
Wiring Check Yes
Display Type LED
Safety Category CAT II 300 V
Power Source Mains
Dimensions 65 x 65 x 47mm
Height 47mm
Plug Type Type G - British 3-pin
Safety Category Voltage 300V
Safety Category Level CAT II
Length 65mm
Width 65mm
Maximum Operating Temperature +40°C
Model Number p CP-501
Minimum Operating Temperature -10°C
290 In stock for delivery within 2 working days
Price Each
£ 67.00
(exc. VAT)
£ 80.40
(inc. VAT)
Units
Per unit
1 +
£67.00
Not available for guaranteed pre 9am/10am delivery
