- RS Stock No.:
- 235-1410
- Mfr. Part No.:
- 2108851-1
- Brand:
- TE Connectivity
2000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£1.137
(exc. VAT)
£1.364
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 40 | £1.137 | £11.37 |
50 - 90 | £1.041 | £10.41 |
100 - 490 | £0.933 | £9.33 |
500 - 990 | £0.769 | £7.69 |
1000 + | £0.607 | £6.07 |
*price indicative |
- RS Stock No.:
- 235-1410
- Mfr. Part No.:
- 2108851-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details

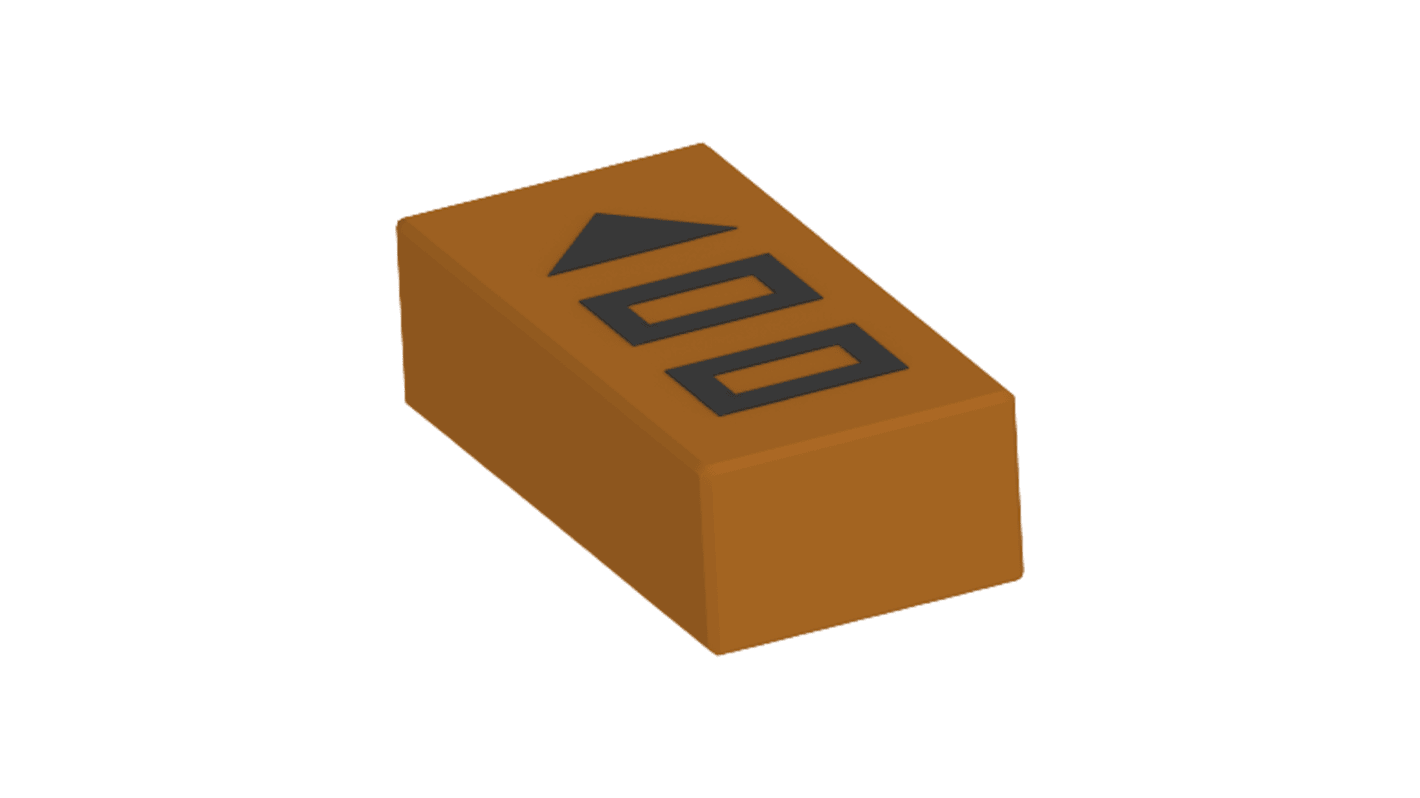

The TE Connectivity Embedded Ceramic Chip Antenna is linear polarization antenna which uses UWB 6000-8100 MHz protocol. It has dimension of 4.0 mm x 2.0 mm x 1.2 following data is based on 20 x 24 mm ground size.
Antenna connection type surface mount (SMT)
Antenna style embedded
Impedance 50 Ω
Active antenna no
VSWR (Max) <1.9:1
Polarization linear
Mounts to printed circuit board
Application by region UWB – Global – 6000 – 8100 MHz
Wireless application UWB
Antenna style embedded
Impedance 50 Ω
Active antenna no
VSWR (Max) <1.9:1
Polarization linear
Mounts to printed circuit board
Application by region UWB – Global – 6000 – 8100 MHz
Wireless application UWB
Specifications
Attribute | Value |
---|---|
RF Protocols | Ultra Wideband (UWB) |
Internal/External | Internal |
Maximum Operating Temperature | +85°C |
Gain | 2.8dBi |
Minimum Operating Temperature | -40°C |
Physical Form | Chip |
Series | GNSS |
