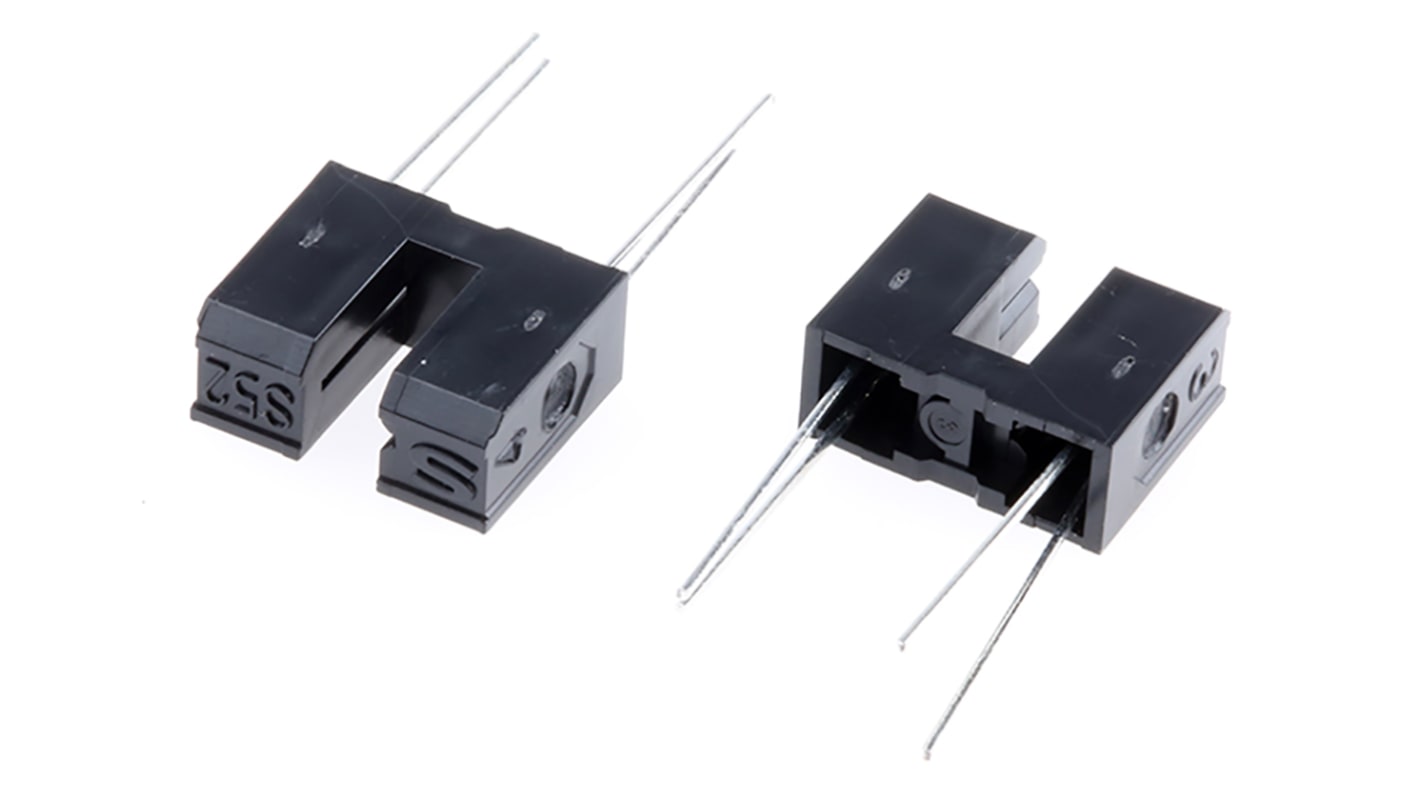

GP1S52VJ000F Sharp, Through Hole Slotted Optical Switch, Phototransistor Output

  • RS Stock No. 666-6536
  • Mfr. Part No. GP1S52VJ000F
  • Brand Sharp
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Slotted Optical Switch, Phototransistor Output

Vertical Slit for alternate motion detection
Positioning Pin to prevent misalignment
General purpose detection of object presence or motion

Slotted Optical Switches, Sharp

Specifications
Attribute Value
Output Device Phototransistor
Number of Channels 1
Typical Rise Time 3µs
Typical Fall Time 4µs
Mounting Type Through Hole
Number of Pins 4
Dimensions 12.2 x 5 x 10mm
Height 10mm
Length 12.2mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Slot Width 3mm
Width 5mm
Operating Temperature Range -25 → +85°C
85 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.776
(exc. VAT)
£ 0.931
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£0.776
£3.88
*price indicative
Packaging Options:
