PCB Slide Switch Single Pole Double Throw (SPDT) Latching 50 mA@ 48 V dc Slide

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

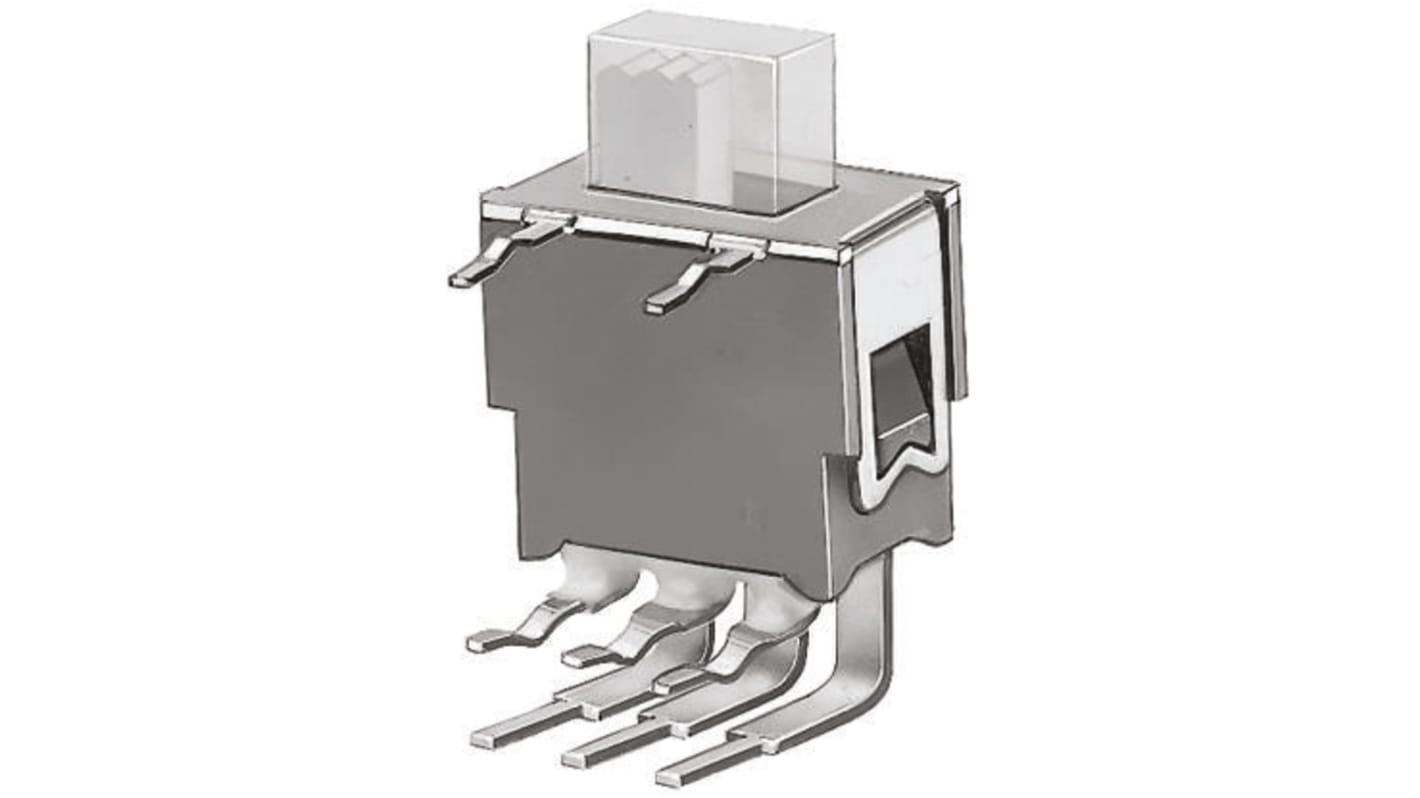

Knitter Switch Micro Miniature Slide Switches - ASE Series

Phosphor bronze contacts with gold-plate over nickel barrier
Nickel plated brass metal parts and washable PBT case
Protective cap that can be removed after washing

Note

Switching function – the closed contacts correspond to the slide position

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 50 mA@ 48 V dc
Terminal Type Through Hole
Actuator Type Slide
Contact Resistance 50mΩ
Mechanical Life 60000Operations
Minimum Operating Temperature -20°C
Contact Material Gold over Nickel Plated Phosphor Bronze
Operating Temperature Range -20 → +80°C
Maximum Operating Temperature +80°C
78 In stock - FREE next working day delivery available
Price Each
£ 4.80
(exc. VAT)
£ 5.76
(inc. VAT)
Units
Per unit
1 - 24
£4.80
25 - 49
£4.55
50 - 99
£3.32
100 - 249
£3.13
250 +
£2.95
Packaging Options:
